TEXT DISPLAY
LCA 042
© 1989 by SYSTEME LAUER GMBH • D 72669 Unterensingen • Kelterstr. 59 • TEL 07022/96600 • FAX 07022/9660103
CPU INPUT INPUT OUTPUT OUTPUT
SIMATIC
S5-115U
+ 24 V
UNIVERSAL-ADAPTER LCA 024
SPS/PLC
SPS/PLC
▲
▼
▼
▼
▼
▼
▼
ENTER
SHIFT
SHIFT
KEYBOARD
EPROM PROGRAMMER

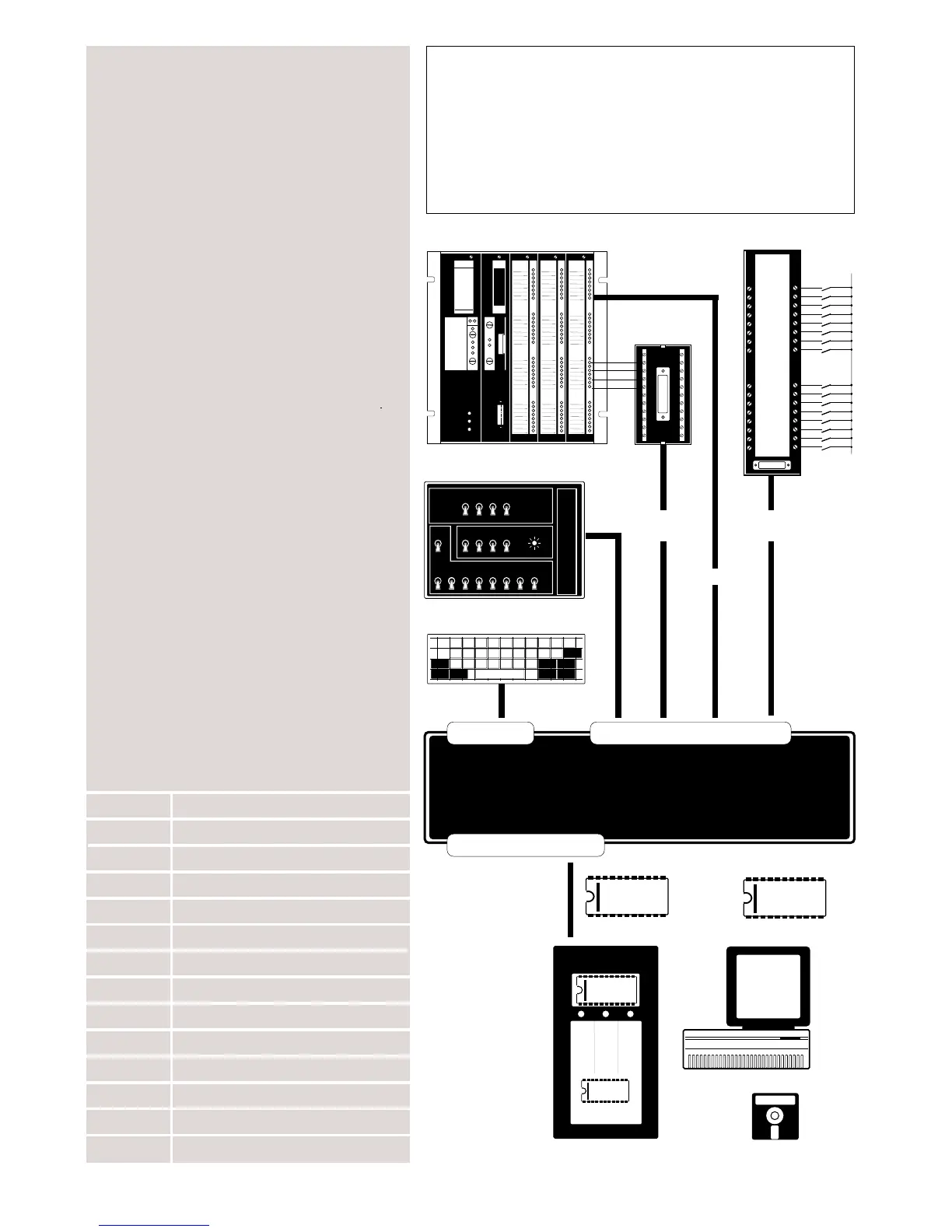

-TEXT DISPLAY LCA 042 WITH ACCESSORIES
▲
▲
▲
EPROM
2764/2764 A
LCA 014
EPROM-PROGRAMMER
EPROM
SCHREIBEN/WRITE
EPROM
LESEN/READ
POWER ON
▲
▲
TESTKONSOLE LCA 015
LETZT ERST RES DIREKT
MELD MELD LÖSCH
BIN TAKT VAR MELD TAKT QUIT
256 GEHT LÖSCH
BIN BIN BIN BIN BIN BIN BIN BIN
128 64 32 16 8 4 2 1
SPS
LCA 020
LCA 015
LCA 010
LCA 014
LCA 293
PC
▼▼▼▼▼
▲
▼
EPROM
2764/2764 A
LCA 048
LCA 030
LCA 031
LCA 030
LCA 031
LCA 038
LCA 024
LCA 010 POCKET KEYBOARD
LCA 014 EPROM-PROGRAMMER
LCA 048 EPROM 2764
LCA 015 TEST CONSOLE
LCA 020 INDUSTRIAL ADAPTER
LCA 024 UNIVERSAL ADAPTER
LCA 025 ADAPTER EXPANDER
LCA 293 P-SOFTWARE FOR LCA 042
LCA 030 FLAT CABLE 200 cm
LCA 031 FLAT CABLE 30 cm
LCA 038.2 ROUND CABLE 200 cm
LCA 038.4 ROUND CABLE 400 cm
LCA 038.6 ROUND CABLE 600 cm
LCA 038.8 ROUND CABLE 800 cm
Text display LCA 042 can ...
■ display 200 messages with 40 characters
each - the message texts can be transfered
either into the RAM by means of a keyboard or
into the EPROM using the LCA 014 (or a PC)
■ display texts directly - the text of a message
is displayed for as long as the coded message
number is present on the inputs of the LCA
042
■ store 19 messages and display them cyc-
lically - the number of messages invoked is
dis-played in the last two columns of a text line
■ display the first message and store the
others - the other messages are requested
and displayed via the clock input
■ display messages on several lines - the
first line contains the main information, the
other two lines additional information
■ combine external variables and fixed
texts in one line - all ASCII and BCD characters
are permissible as variables
■ be driven by any programmable controller
using BCD/BIN-code or by universal
adapter LCA 024 (using contacts, proximity
switches etc.)
ACCESSORIES
PROG. CONT. CONNECTION
INTERFACING
PROGRAMMING
ACCESSORIES
