© 1989 by SYSTEME LAUER GMBH • D 72669 Unterensingen • Kelterstr. 59 • TEL 07022/ 96600 • FAX 07022/9660103
TEXT DISPLAY LCA 042
1
Prog. Cont. interface
Pocket keyboard
LCA 010
EPROM programmer
LCA 014
CPU INPUT INPUT OUTPUT OUTPUT
SIMATIC
S5-115U
EBERLE
PLS 508
EPROM
2764/2764 A
LCA 014
EPROM-PROGRAMMER
EPROM
SCHREIBEN/WRITE
EPROM
LESEN/READ
POWER ON
ENTER
SHIFT
SHIFT

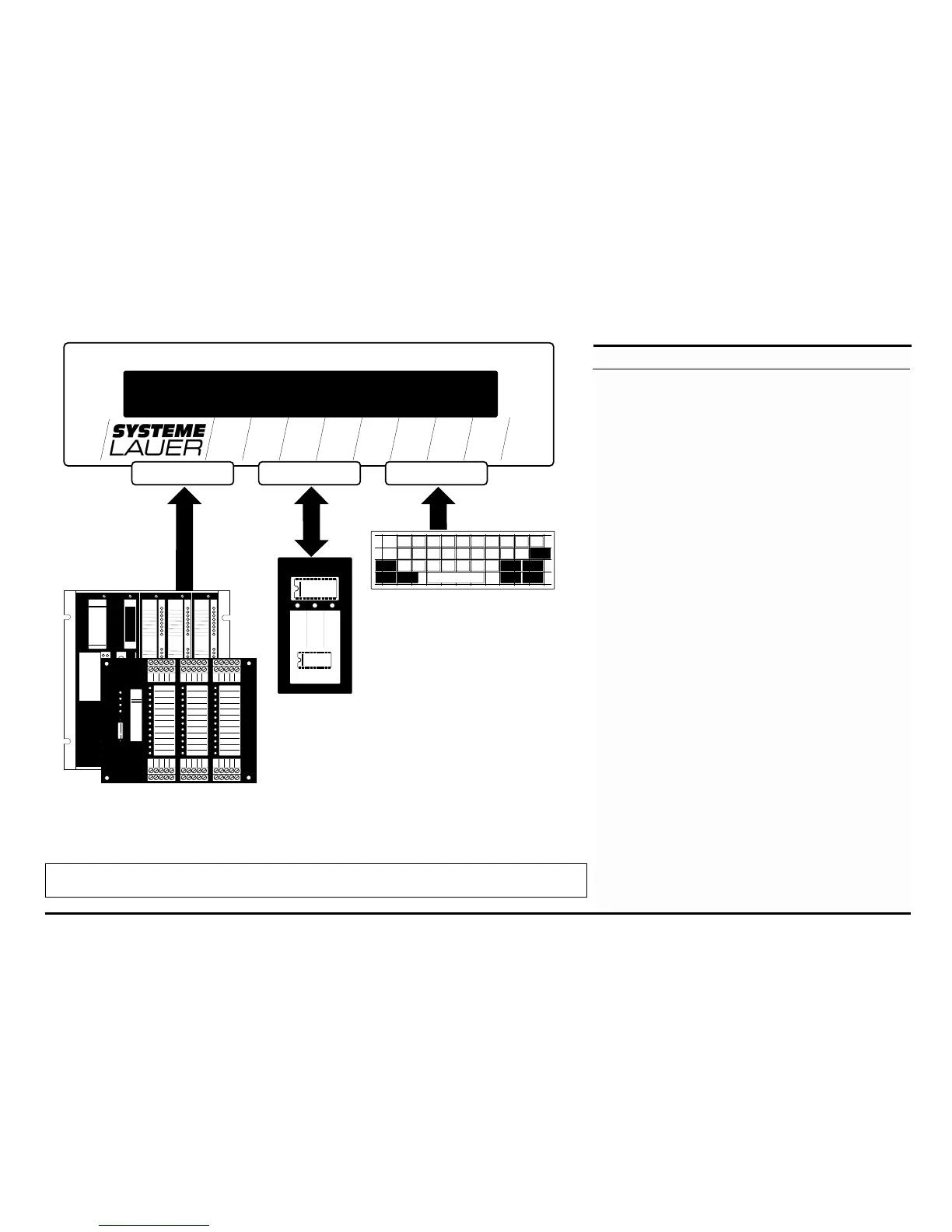

-CONNECTIONS TO THE LCA 042
1.0 CONNECTIONS TO THE LCA 042
There are three plug-type connectors on the rear of the
LCA 042:
- Connector for programmable controller
25-pin DIN plug
- Connector for pocket keyboard LCA 010
20-pin plug
- Connector for EPROM programmer LCA 014
10-pin plug
We recommend out text display LCA 042 for use with pro-
grammable controllers made by the following manufac-
turers:
AEG Kunke
April Mitsubishi
ABB Texas Instruments
B & R Selectron
Eberle Schiele
Festo Siemens
IFM Omron
Inter Control Philips
Klaschka
Klöckner-Moeller
and many others
