(Fig. 25).
Fig.25
l Depress the pedal “ ” to turn the turntable
clockwise. When only 10—15cm(Fig.26) is left, slow
down to avoid damage of the tyre bead. Stop the
motor once there is any indication for damage. Lift
the pedal to turn the turntable counter-clockwise. Try
again when the tyre is back to the original shape.
Fig.26

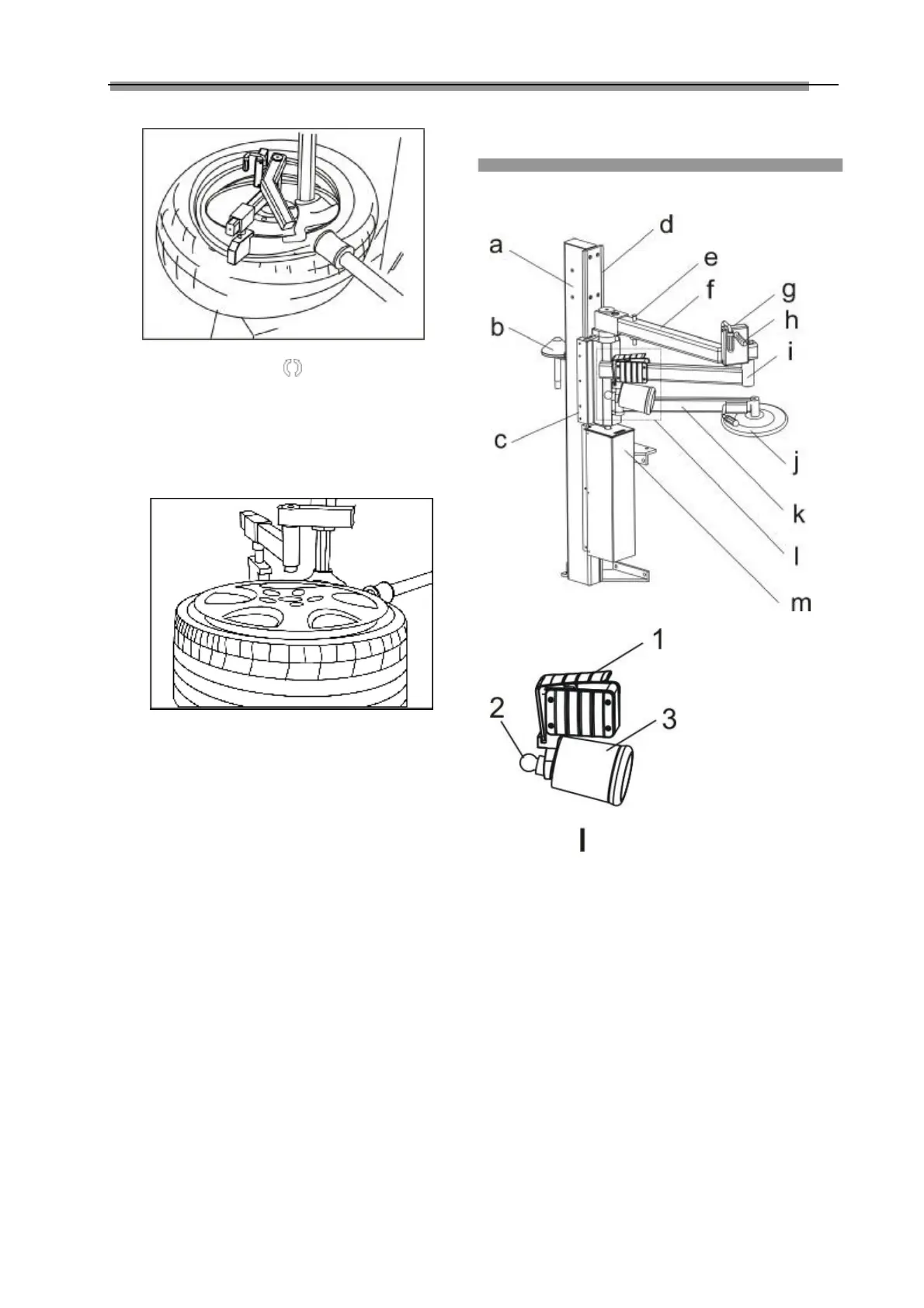

Left Supplementary Arm
Structure (fig.27)
a- Post
b- Cone
c- Hood
d- Sliding guide
e- Spacer pin
f- Back swivel arm
g- Control box
h- Control lever
i- Fore swivel arm
j- Disk
k- Disk arm
l- Roller
m- Cylinder
1- Locking clip
2- Knob
3- Roller
Fig.27
