6. DAILY CARE

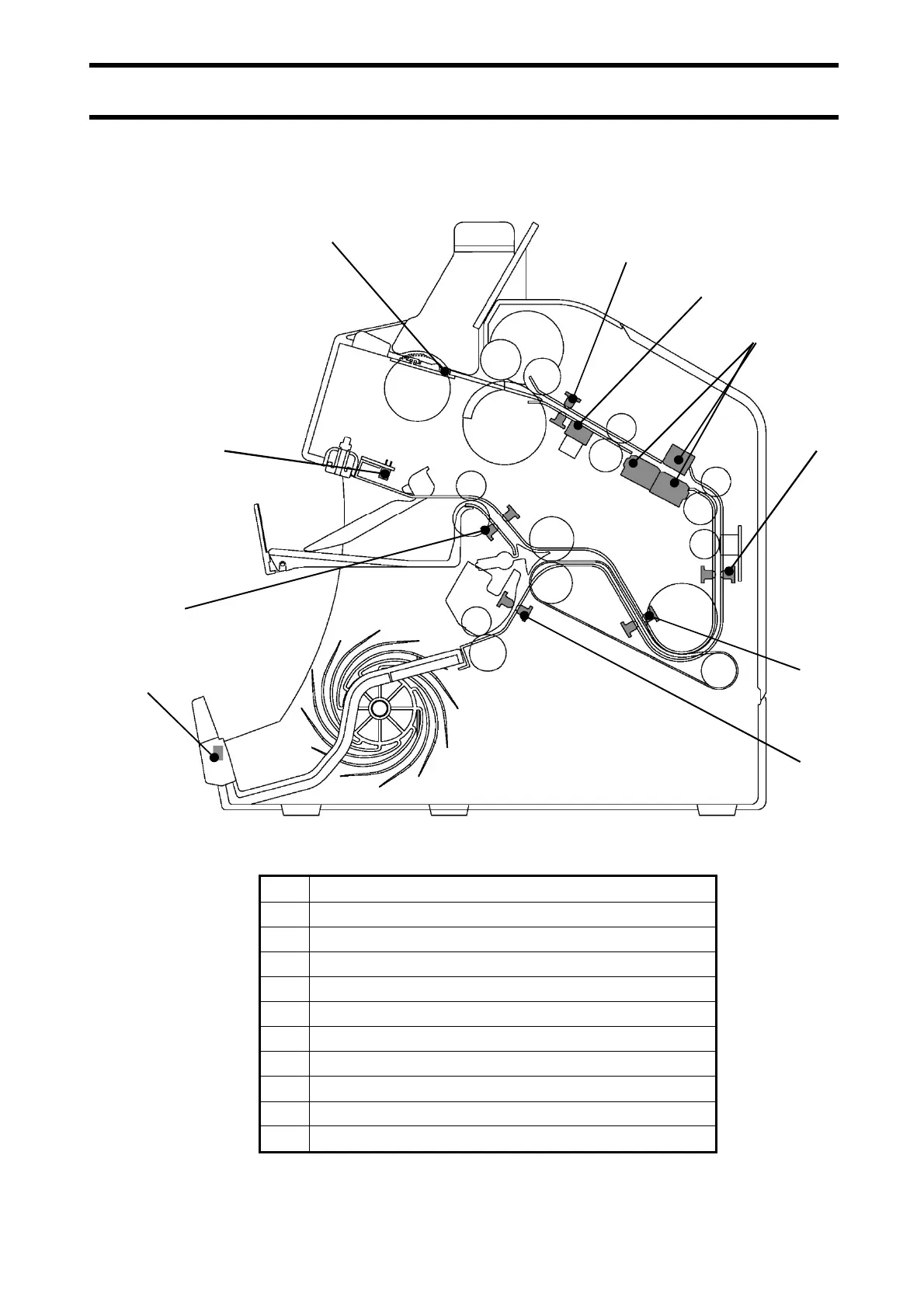

6-1. Sensor Location
No Description
1. HS Sensor
2. CSL / CSR Sensor
3. UV Sensor
4. Image Sensors
5. USL / USR Sensor
6. DSL / DSR Sensor
7. LPL / LPR Sensor
8. Stacker Sensor
9. UPL / UPR Sensor
10. Reject Stacker Sensor
1
2
3
4
5
6
9
10
8
7
