LAUREL X8 - Machine Overview; Parts Identification and Functions

- 7 -
1. OVERALL DESCRIPTIONS
1-1. Names and Functions of Parts

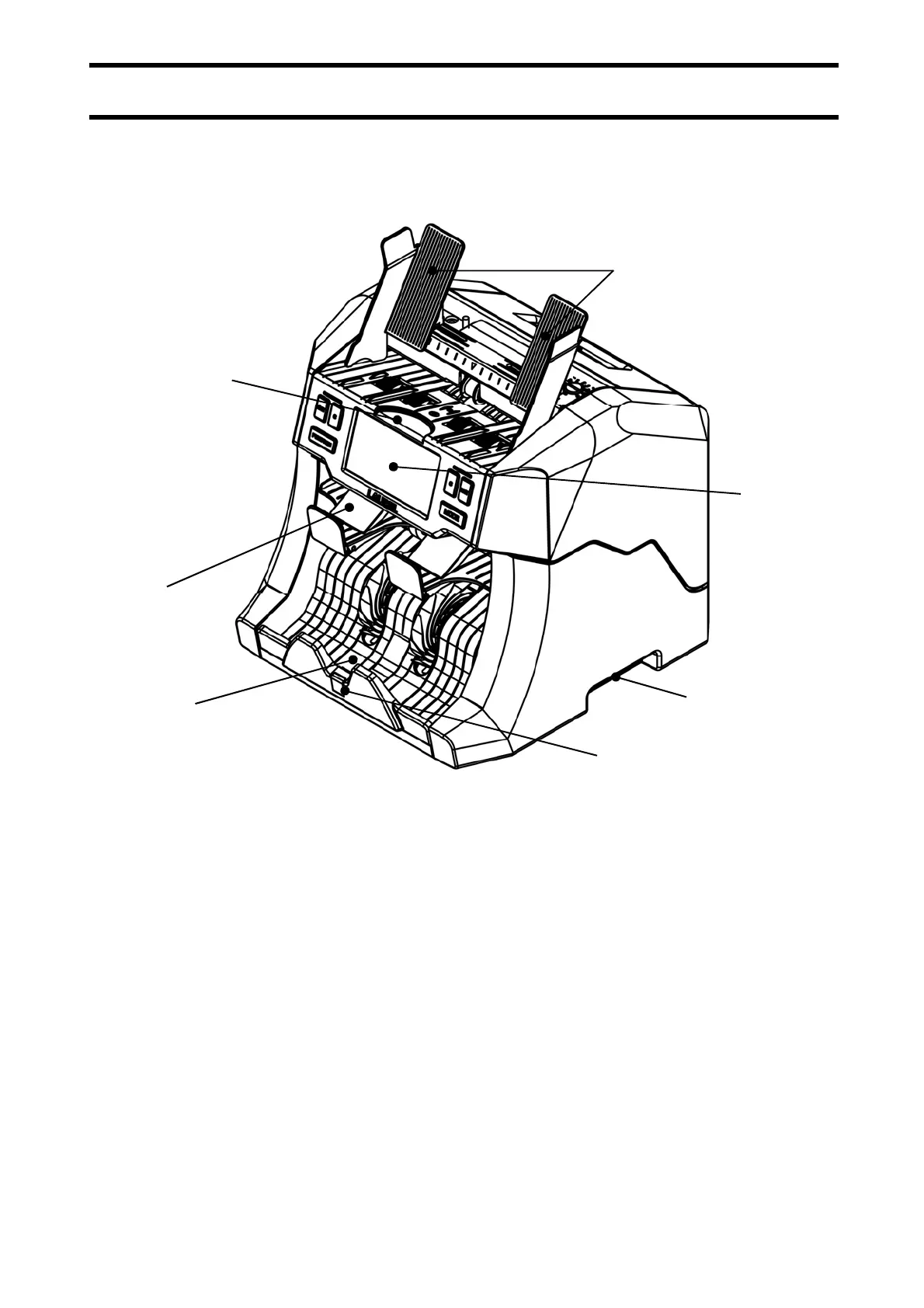

Front View
1. Hopper
Notes to be counted are put onto the Hopper.
2. Note Guides
Notes can be centered using the Note Guides.
3. Operation Panel
The display indicates count result at Main-Display and there are various
operation keys.
4. Carrying Handle
It is used for carrying the machine.
5. Stacker LED
LED indicates count result of notes and machine condition by color.
6. Stacker
Counted notes are stacked in this Stacker.
7. Reject Stacker
Reject notes and suspicious notes are stacked in this Stacker.
5. Stacker LED
3. Operation
Panel

1. Hopper
6. Stacker
2. Notes Guides
4. Carrying Handle
7. Reject Stacker
