Assembly
Note: Determine left and right sides of snowthrower by standing in the normal operating position.
Loose Parts
Part Qty Use
Wheels
Spacers
Pushnuts
2
2
2
Installing the wheels
Discharge chute
Chute handle
Carriage bolts
Washers
Locknuts
1
1
3
3
3
Installing the discharge chute and chute handle
Handle
Eyebolt and spacer
Machine screws
1
1
3
Installing the handle
Control cable
Spring
Cable adjuster
1
1
1
Installing the control cable

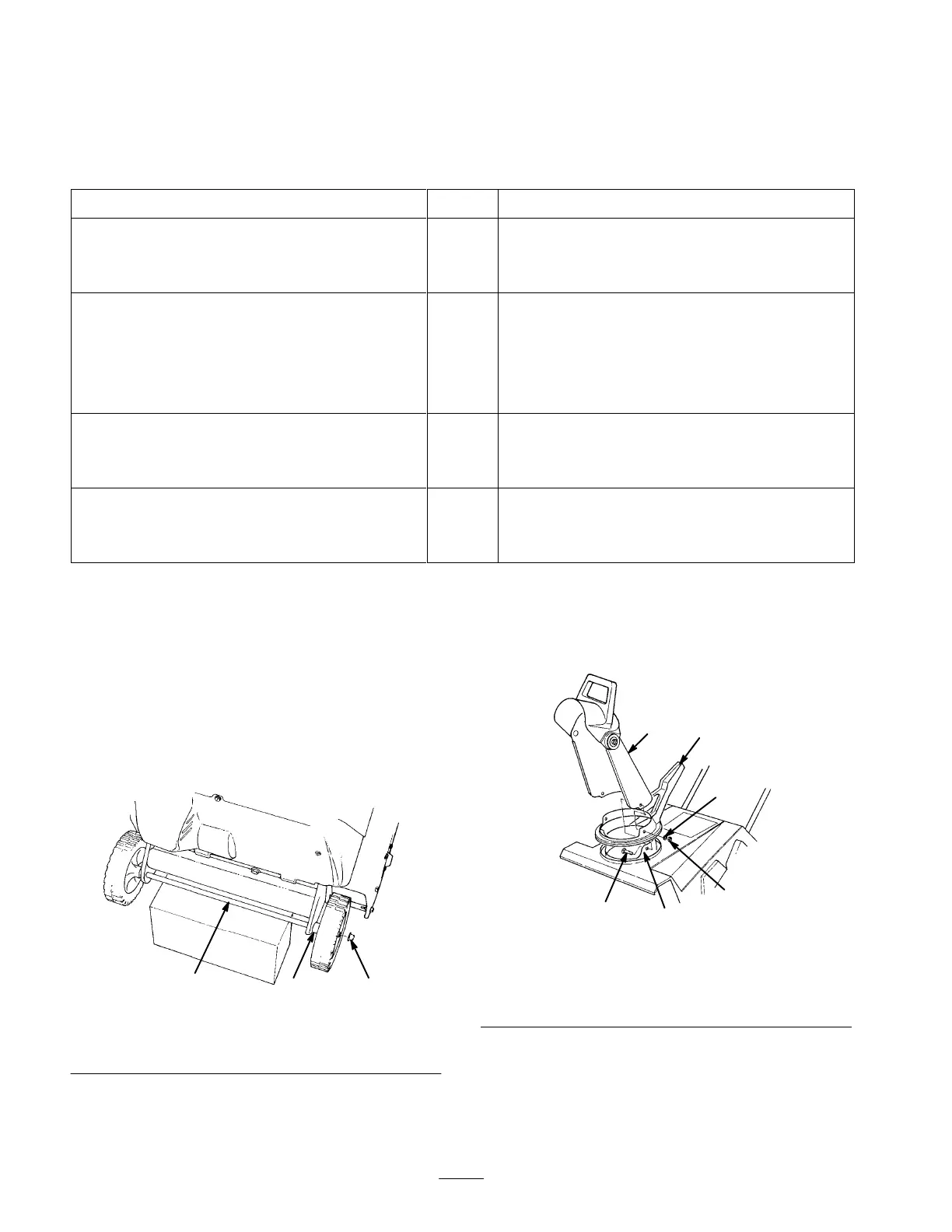

Installing the Wheels
1. Place a wood block under the wheel axle for support
(Fig. 2).
2. Slide a spacer and wheel onto the axle. Ensure that the
side of the wheel with six spokes faces the center of
the axle. Slide a pushnut onto the end of the axle (Fig.
2).
3.
Using a hammer , strike the pushnut to seat it firmly in
place. Repeat steps 2 and 3 for the other wheel.
894
1
3
2
Figure 2
1. Pushnut
2. Spacer
3. Axle
Installing the Discharge Chute
and Chute Handle
1. Place the chute handle over the chute ring (Fig. 3).
895
1
4
6
5
2
3
Figure 3
1. Chute ring
2. Discharge chute
3. Chute handle
4. Carriage bolt
5. Washer
6. Locknut
2. Insert the dischar ge chute between the chute ring and
the chute handle and align the holes (Fig. 3).
