ASSEMBLY

FITTING THE DEBRIS GUARD (See Figs. 1-3)

■ Loosen and remove the screw from the debris guard using the screwdriver provided.

■ Starting from the top of the split shaft, slide the debris guard all the way down to the correct mounting

position as shown (Fig. 1).

■ Align the screw hole on the debris guard with the screw hole on the bracket. Insert the screw through the

debris guard and the bracket on the shaft (Fig. 2).

■ Secure the screw tight using the screwdrive (Fig. 3).

INSTALLING AND REMOVING THE SHAFT (See Figs. 4-6)

To install the shaft:

■ Turn the locking collar counter-clockwise to remove it from the shaft connection sleeve. Slide the locking

collar onto the shaft.

■ Check to ensure the axles in the shafts are aligned as shown (Fig. 4). If not aligned, slightly rotate the

trimmer head to adjust the axle until it aligns.

WARNING

The trimming line cutting blade on the debris guard is sharp and is tted with a blade protection lm

which will need to be removed prior to using the trimmer. When tting the guard avoid contact with

the blade. Failure to avoid contact can result in serious personal injury.

WARNING

Never install, remove, or adjust any attachment while the engine is running. Failure to stop the engine

can cause serious personal injury.

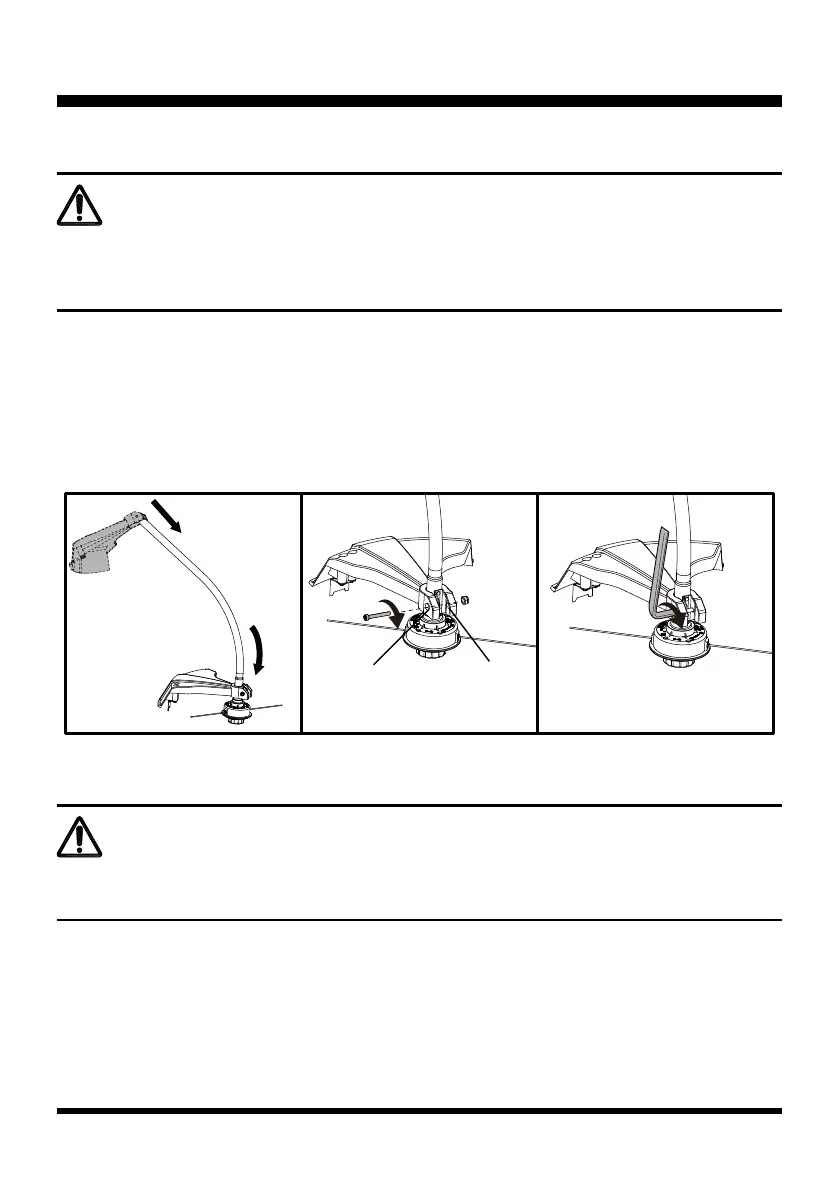

Fig. 1 Fig. 2

Fig. 3

Hole on the

debris guard

Hole on the

bracket

LawnMaster NPTGCP2517B User Manual

Other manuals for LawnMaster NPTGCP2517B
