LawnMaster NPTGCP2517B User Manual

14
ASSEMBLY

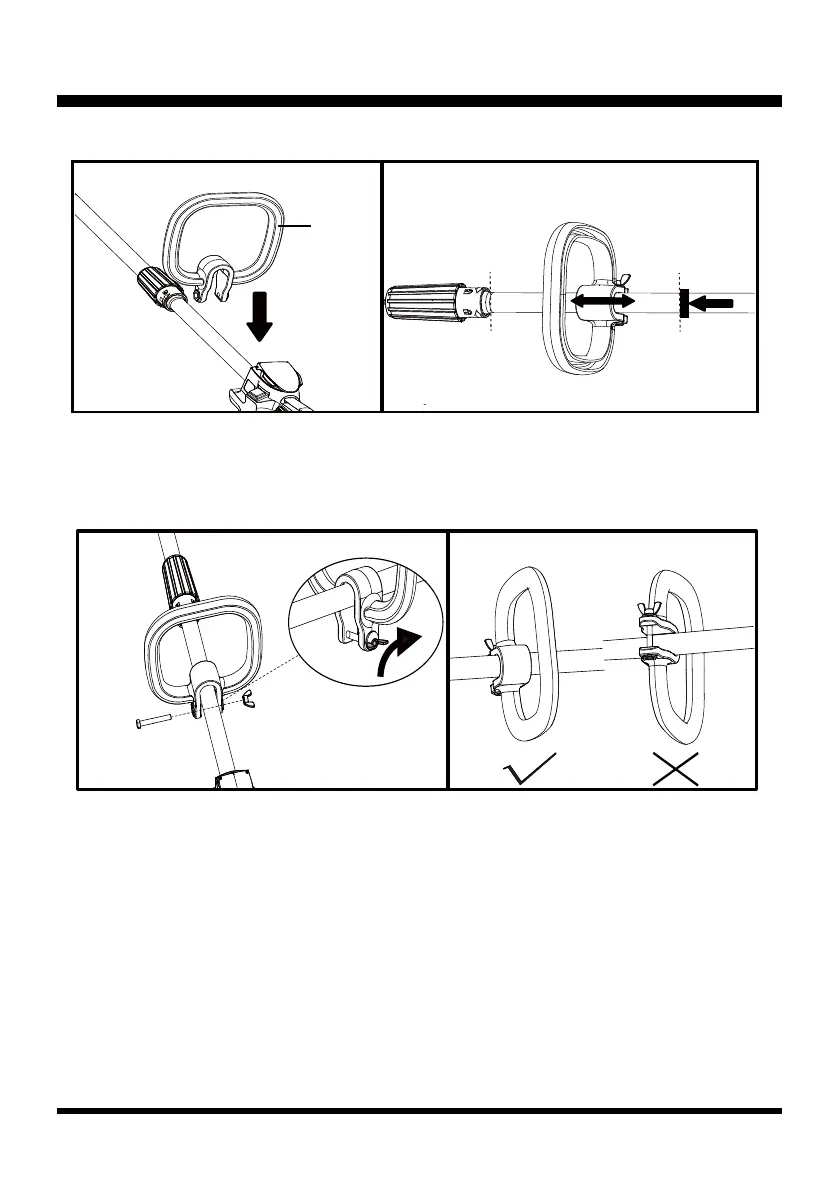

■ Insert the screw bolt to the screw holes on the assist handle and tighten the wing nut. Secure the wing nut
tightly by turning it clockwise (Fig. 9).
■ Pay attention not to position the assist handle under the shaft (Fig. 10).
Handle Position
Fig. 7 Fig. 8
Groove
Fig. 9 Fig. 10

LawnMaster NPTGCP2517B Specifications

General

Brand	LawnMaster
Model	NPTGCP2517B
Category	Trimmer
Language	English
