NOPULL

STARTER SYSTEM

F. If the battery indicator LED does not turn on, the possible causes are as below:

1). The microswitch is broken. Replace it.

2). The wiring harness of the microswitch has detached. Re-weld it.

3). There is failed contact in the battery connector to the PCB. Adjust the battery connector (Fig.

79).

4). The battery does not have voltage output. Use a multi-meter to test if an open circuit occurs in

the fuse of the battery. If yes, replace it (Fig. 80).

Ŷ7KHHOHFWULFPRWRUVWDUWVWKHQVWRSVZKHQSUHVVLQJWKHVWDUWEXWWRQ$FFRUGLQJWR/('LQGLFWRUVWKH

possible causes are as below:

$,IWKHUHLVQR/('ÀDVKLQJWKHVWDUWEXWWRQPD\KDYHEURNHQRULIWKHVWDUWEXWWRQUHPDLQVSUHVVHG

for 5 seconds, the motor will stop automatically).

%*UHHQÀDVKLQJRIWKHEDWWHU\LQGLFDWRU/('LQGLFDWHVDVKRUWFLUFXLWLQWKHHOHFWULFVWDUWHU&KHFNWKH

electric motor and the motor drive lines as illustrated above.

&$OWHUQDWHUHGDQGJUHHQÀDVKLQJRIWKHEDWWHU\LQGLFDWRU/('LQGLFDWHVDQRYHUFXUUHQWLQWKHHOHFWULF

starter. Check if the engine is stuck and cannot be rotated smoothly.

Ŷ7KHHOHFWULFPRWRUVWDUWVQRUPDOO\EXWWKH/('GRHVQRWWXUQRQZKHQSUHVVLQJWKHVWDUWEXWWRQ

Possible causes are:

$7KHUHLVORRVHRUIDLOHGFRQWDFWRUIDOORIILQWKHFRQQHFWLRQRI3&%RU/('SDQHOWRWKHÀDWFDEOH

B. LED panel is broken.

Ŷ7KHHQJLQHFDQQRWEHVWRSSHGZKHQSUHVVLQJWKHVWRSVZLWFK7KHSRVVLEOHFDXVHVPD\EHWKDWWKH

stop switch has failed or the wiring harness of the stop switch has broken. Check as below:

Open the corrugated pipe buckle, disconnect the male and female terminals of the stop switch wiring

harness (covered by two transparent insulation covering):

A. Press the stop switch, test the stop switch wiring harness of the handle part using the resistance

stall of multi-meter (Fig. 81). If conduction fails, the possible causes are:

1). The wiring harness of the handle has detached from their welding position to the stop switch;

2). There is loose or failed contact in the connection of the wiring harness of the handle part to the

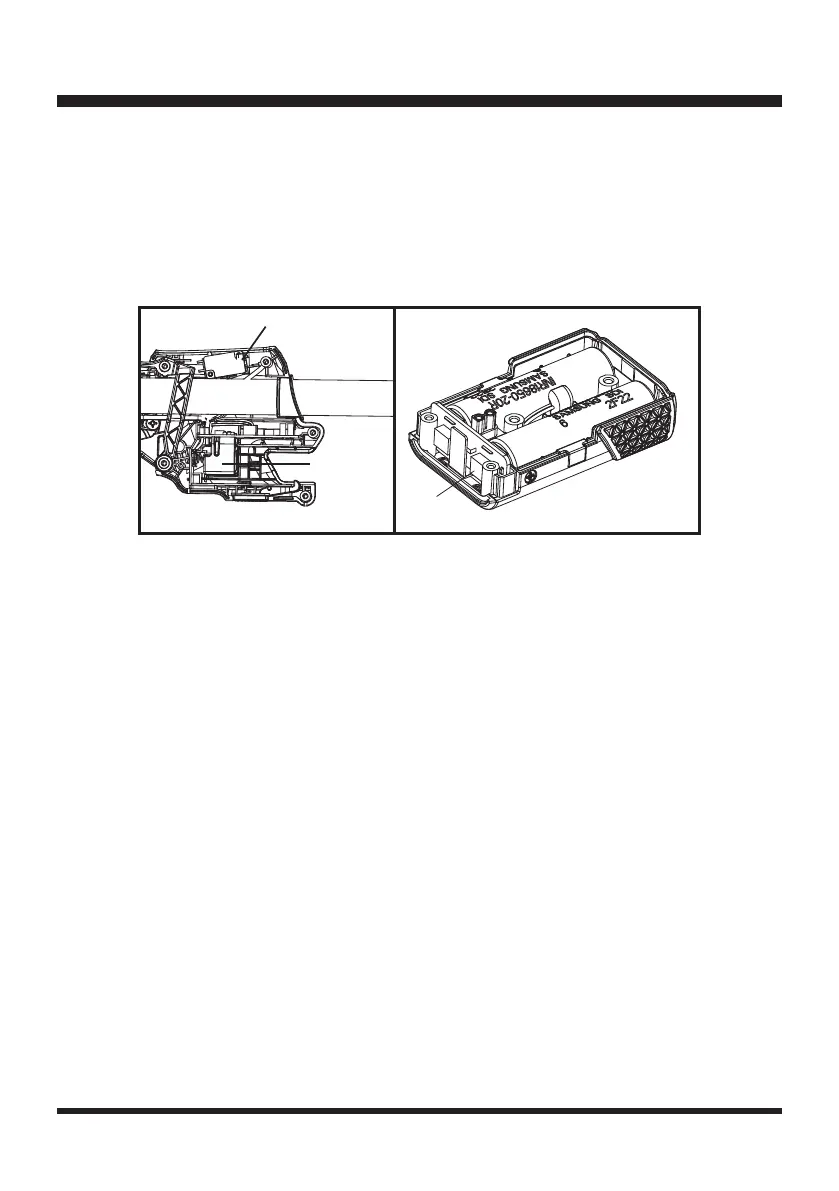

Fig. 80Fig. 79

Microswitch

Battery

Connector

Fuse
