LawnMaster NPTGSS2617A Service Manual

29
AIR & FUEL SYSTEM
Ŷ5HPRYHWKHVFUHZRQWKHERWWRPRIIXHOWDQN)LJ
Ŷ8QSOXJWKHUXEEHUSOXJLQWKHIURQWRIIXHOWDQNDQGUHPRYHWKHIXHOWDQN)LJ
Ŷ5HSODFHZLWKDQHZIXHOWDQN
NOTE:0DNHVXUHDOOSDUWVDUHUHSODFHGLQWKHH[DFWRUGHULQZKLFKWKH\ZHUHUHPRYHG
Insert the Fuel Tube
Connect the fuel tubes with the carburetor. The black tube is for fuel entering. The transparent is for
fuel return. The fuel tubes should be connected to the turning position as shown (Fig. 50).
NOTE: Do not damage or fold the fuel tubes.

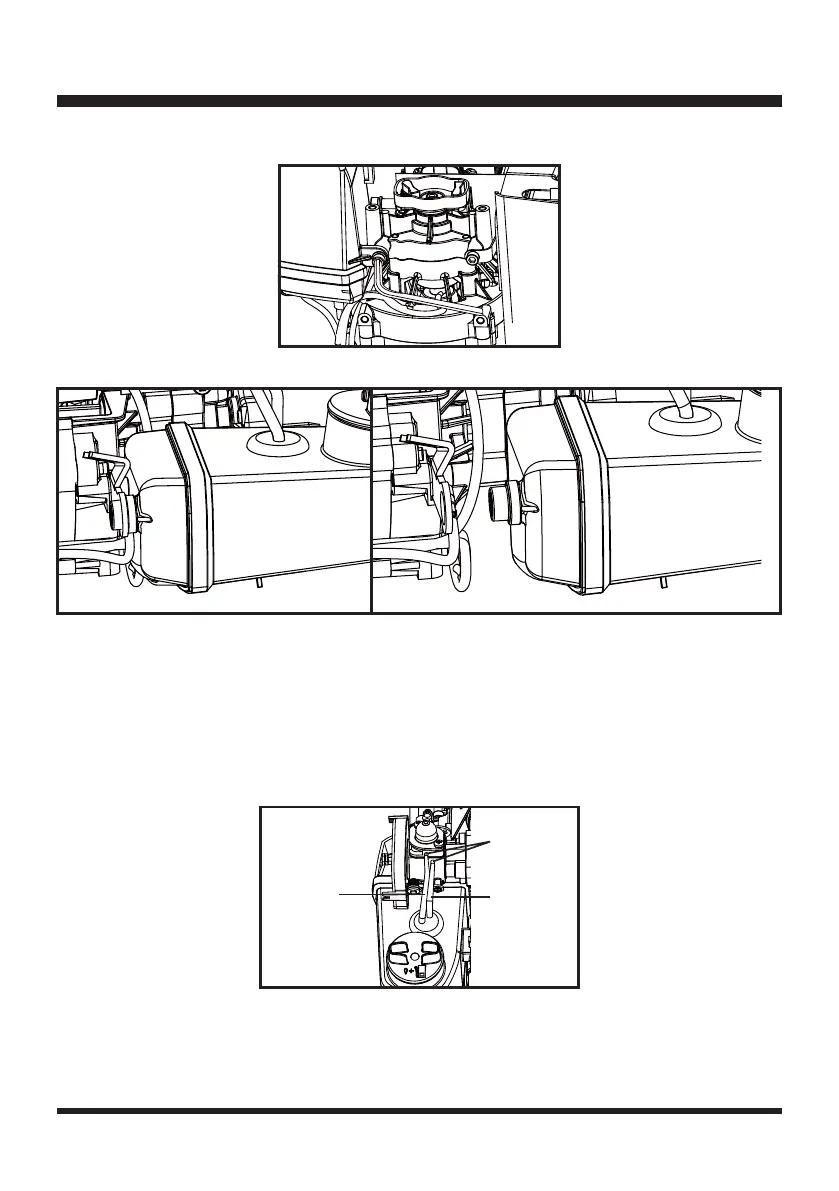

Fig. 47
Fig. 48 Fig. 49
Fig. 50
Fuel Return
Tube
(Transparent)
Fuel Tube
(Black)
Turning
Position
