LawnMaster NPTGSS2617A Service Manual

40
GEAR HEAD AND SPOOL

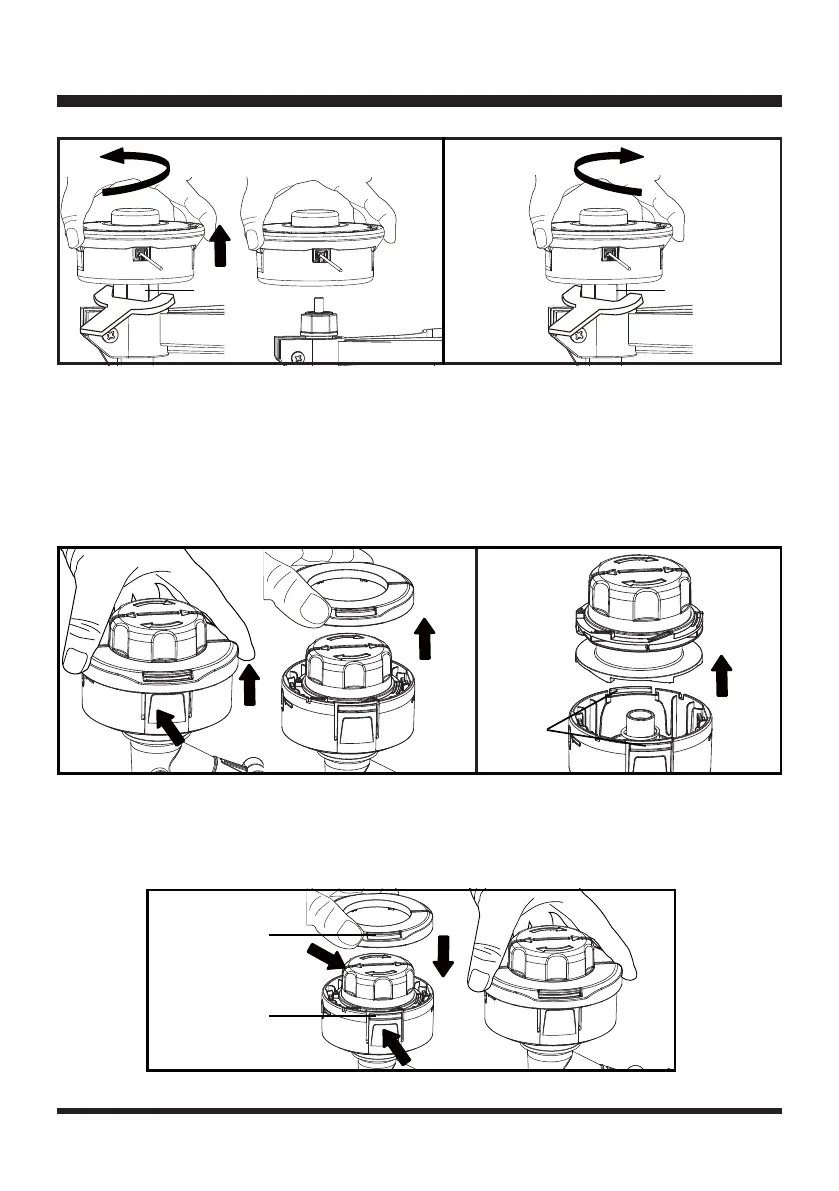

SPOOL REPLACEMENT (See Figs. 79-85)
Straight shaft grass trimmer (NPTGSS2617A) - Rapid Reload™ Spool
Ŷ+ROGWKHWULPPHUKHDGFRYHU8VLQJWKHLQGH[¿QJHUDQGWKXPE¿UPO\VTXHH]HWKHORFNLQJWDEVRQ
the trimmer head housing. Then remove the trimmer head cover (Fig. 79).
Ŷ5HPRYHWKHHPSW\VSRROIURPWKHWULPPHUKHDG)LJ
NOTE: It is not necessary to remove the trimmer head housing from the drive shaft.
Ŷ,QVWDOOWKHQHZVSRROLQWRWKHWULPPHUKHDG
Ŷ7RUHLQVWDOOWKHWULPPHUKHDGFRYHU¿UVWDOLJQWKHPRXQWLQJKROHVRQWKHWULPPHUKHDGFRYHUZLWK
the locking tabs on the trimmer head housing as shown. Then press the locking tabs and push the
trimmer head cover onto the trimmer head housing. Make sure they are secured tightly (Fig. 81).
Fig. 81
Fig. 78Fig. 77
+H[1XW +H[1XW
Locking tabs
on the trimmer
head
housing
Locking tabs
on the trimmer
head housing
Mounting Hole
Fig. 80Fig. 79
