19
For HELP, call La-Z-Boy
® Spas at 1.800.465.2933.

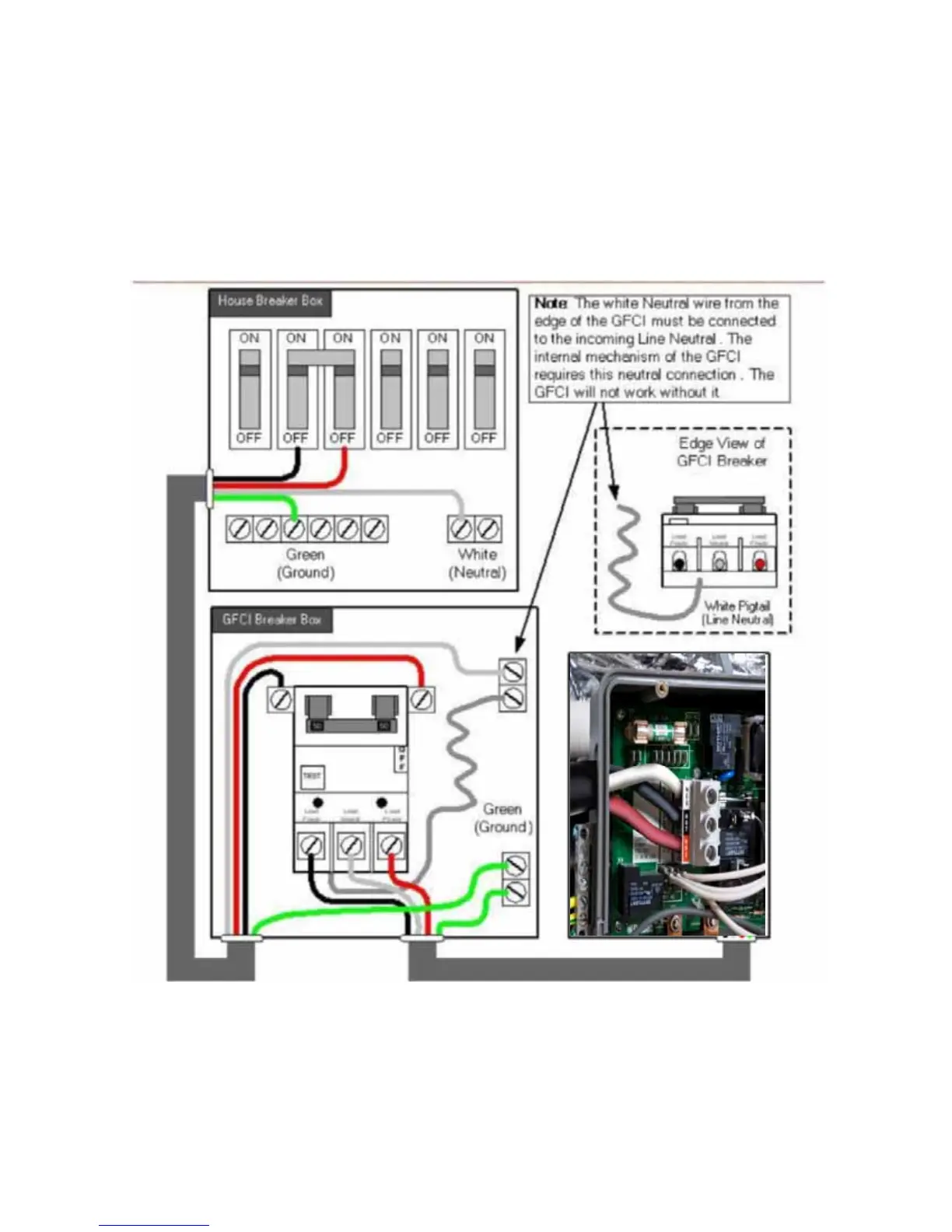

Figure 4 - U.S. and Canada Wiring Diagram
See wire size chart on page 17.
Important: Use only a properly sized (50 amp, Revive, Refresh, Relieve / 40 amp
Rejoice) GFCI Circuit Breaker. Installation, including selection of conductor size and
type, must be performed by a qualified electrician in accordance with the National
Electrical Code or the Canadian Electrical Code, and all federal, state, provincial and
local codes and regulations in effect at the time of installation.
