In-Touch 2000 Electronic Control
The La-Z-Boy Spas In-Touch 2000 topside controls are mounted front and center and
control the pumps, temperature, lighting, and filtration cycles and more. State of the art
electronics protected by special weather resistant materials make the In-Touch 2000
Electronic Controls one the most reliable choice in the harshest of climates

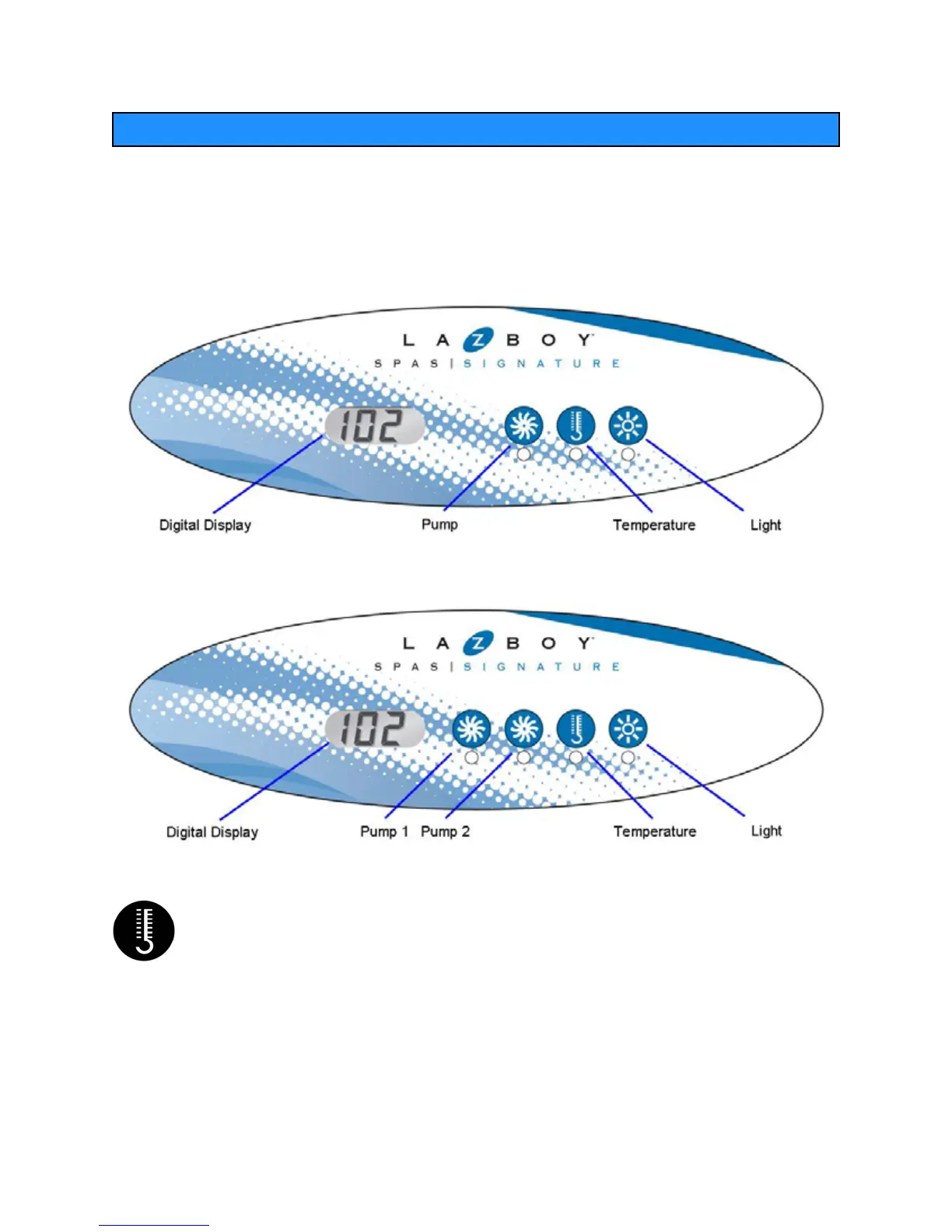

Figure 11(a) – Rejoice Topside Control Panel (One Pump)
Figure 11(b) – Revive, Refresh, Relieve Topside Control Panel (Two Pumps)
Temp Control (80°F - 104°F / 26°C - 40°C)
The last measured water temperature is constantly displayed. The water temperature
displayed is current only when the pump has been running for at least 2 minutes. To
display the set temperature, press the button once. To change the set temperature,
press the button a second time before the display stops flashing. Each press of the
button will continue to either raise or lower the set temperature. If the opposite
direction is desired, allow the display to revert to the current water temperature.
