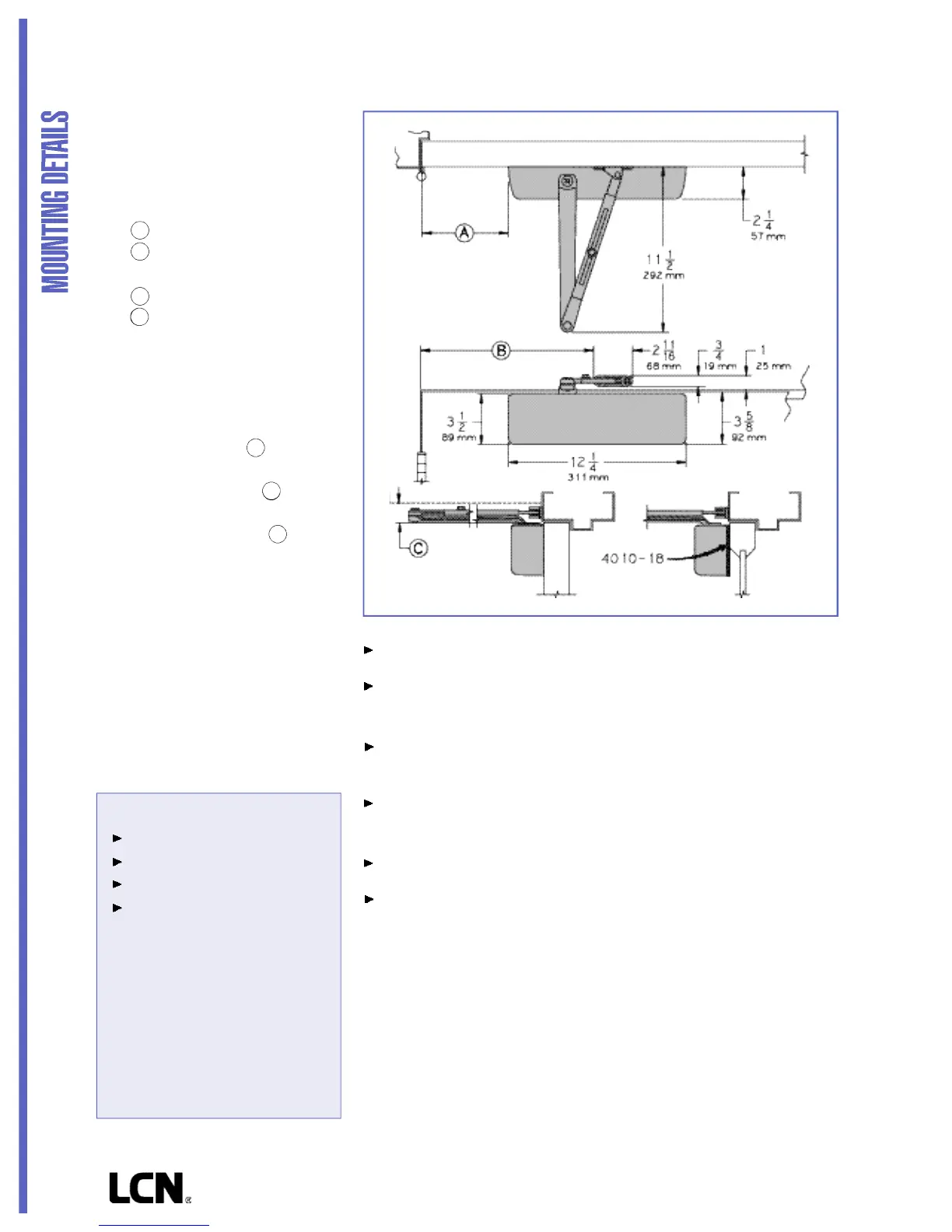

HINGE (PULL) SIDE
MOUNTING
MAXIMUM OPENING
Can be templated for 100°,
A = 5 15/16” (151 mm)
B = 11 15/16” (303 mm)
or 140°.
A = 4 3/16” (106 mm)
B = 10 3/16” (259 mm)
Hold-open points up to maximum
opening with hold-open arm.
Arm Clearance above door.
Regular arm requires C =
1 1/16” (27 mm).
Hold-open arm requires C =
1 3/8” (35 mm).
Fusible link arm requires C =
1 5/8” (41 mm).
LCN 4010 SERIES
Butt Hinges should not exceed 5” (127 mm) in width.
Auxiliary Stop is recommended at hold-open point or where a door
cannot swing 140°.
Reveal should not exceed 3/4” (19 mm). Fusible link arm should not
exceed 1/8” (3 mm).
Top Rail less than 3
3
/
4
” (95 mm) requires PLATE, 4010-18.
Plate requires 2” (51 mm) minimum.
Clearance of 2 1/4” (57 mm) behind door required for 90° installation.
Delayed Action Add suffix “DEL” to selected cylinder.
Not available with 4016 cylinder.
Delays closing from maximum opening to approximately 70°.
Delay time adjustable up to approximately 1 minute.
Options
Size 6 or non-sized cylinder.
Delayed action cylinder.
Hold-open or fusible link arm.
Metal cover.
Special Templates
Customized installation templates
or products may be available to
solve unusual applications.
Contact LCN for assistance.
