Copyright © 2018 Liquid Combustion Technology, LLC LCT Engine Service Manual: 79, 136, 179, 208, 254, 291, 306, 369, 414 & 420cc 16

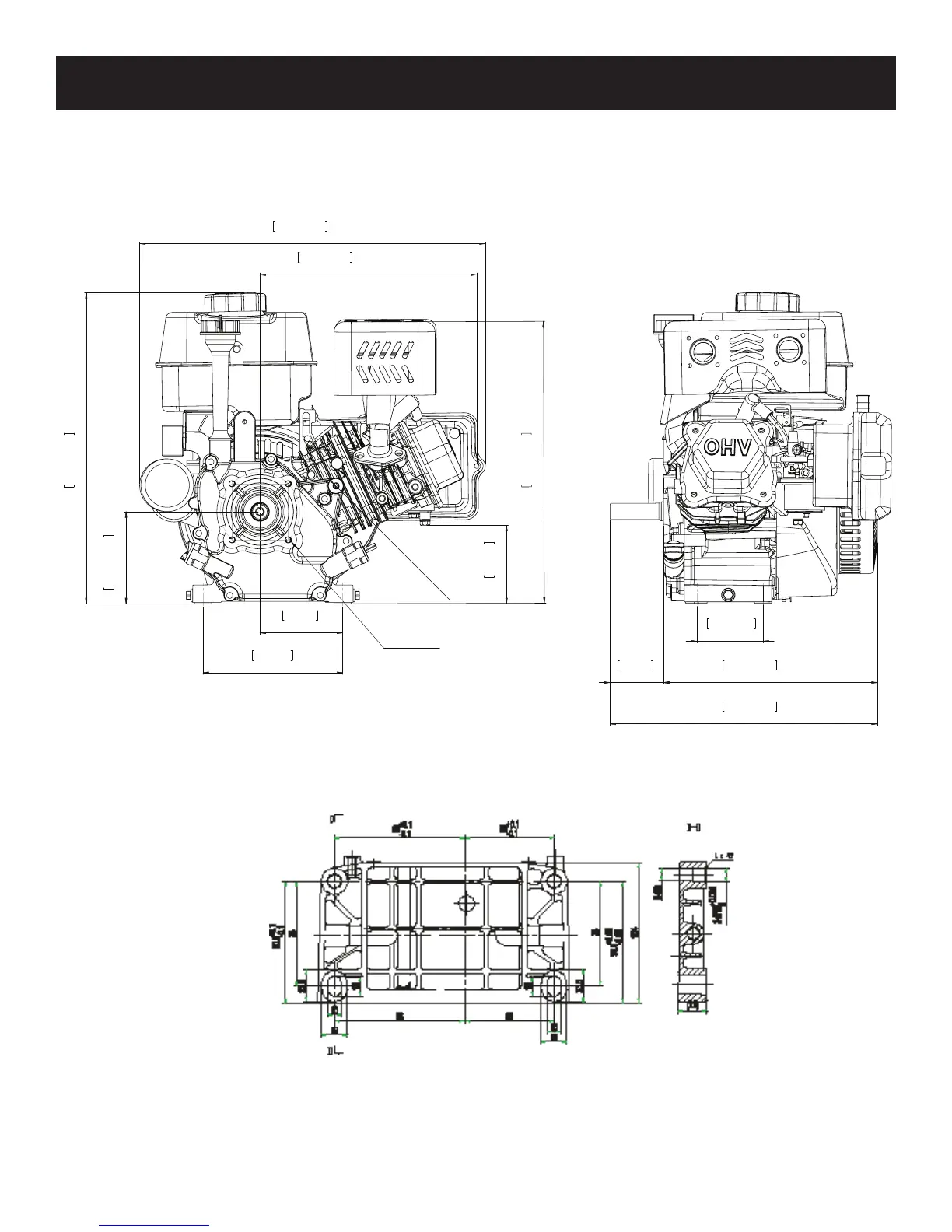

136cc Summer Engine Dimensions
*Drawings do not accurately represent actual engine appearance.
14.208in
360.89mm
ni478.21
mm99.623
15.794in
401.18mm
3.583in
91mm
5/16-24UNF
4.201in
106.70mm
6.378in
162mm
3.780in
96mm
9.902in
251.50mm
3.625in[92mm]
Bolt Circle
4-5/16-UNF
12.212in
310.19mm
9.771in
248.19mm
2.441in
62mm
3.027in
76.88mm
To Next Page
