LD MAUI 28 - CONTROL ELEMENTS; SUB LEVEL AND MAIN LEVEL; STATUS INDICATOR LEDS; MULTIPIN PLUG-IN CONNECTOR

7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS
FRANCAIS
FRANCAIS
FRANCAIS
DEUTSCH
ENGLISH

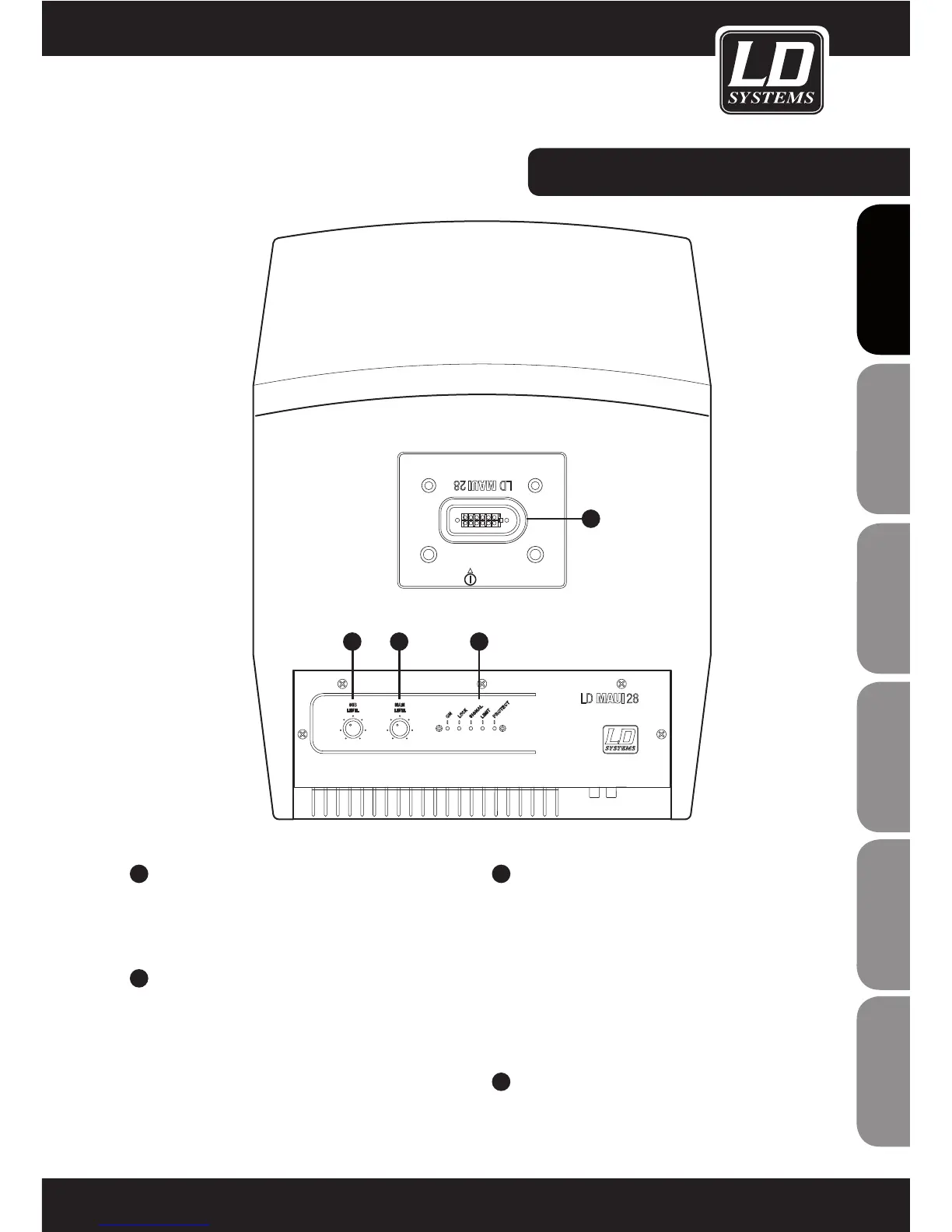

CONTROL ELEMENTS:
1
SUB LEVEL
Presetting of the subwoofer volume in relation to
the volume of the array columns. Basic setting
12 o'clock.
2
MAIN LEVEL
Presetting of the overall volume - the subwoofer
is also controlled in accordance with the SUB
LEVEL preset.
3
LEDS
ON: lights up when the unit is on.
LOCK: lights up when the system is plugged
together correctly.
SIGNAL: lights up when a signal is present at the
input.
LIMIT: lights up when the limiter is active.
PROTECT: lights up when the system is overloa-
ded and automatically switches to mute.
4
MULTIPIN PLUG-IN CONNECTOR
This is where the lower part of the array column
is plugged on.
