6
About the Radio Sense feature
Radio Sense is an exclusive LDG feature that automatically grounds all inputs when you turn
your radio off. It is available only if you are using the DTS-6 with the DTS-6R remote; the DTS-
6 by itself does not support this feature.

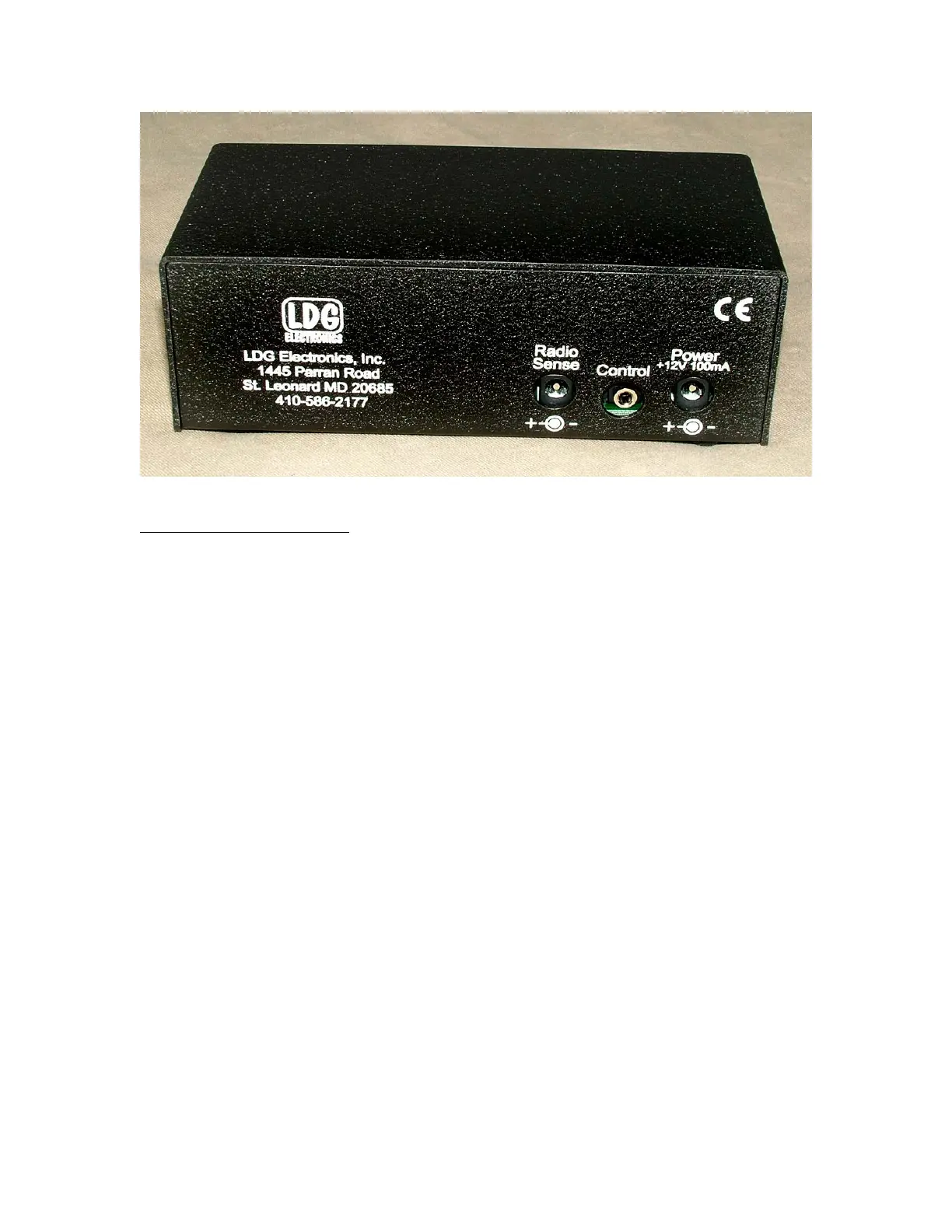

A sense line connects the DTS-6R to any DC output port on your radio providing at least 2 volts
DC at 1 ma when the radio is turned on; most modern radios have at least one such DC output.
When this mode is enabled, the DTS-6R senses the DC output port go to zero volts when you turn
your radio off, and automatically grounds all inputs, protecting the rig from static discharges.
When you turn your rig back on, the DTS-6R senses the voltage on the DC output port and
automatically selects the antenna you were using when you powered down. You can also
manually ground all inputs from the front panel with a single press of the control buttons.
