LDR Aria f1000 plus Series User Manual

LDRAriaf1000&Ariapc1000User’sManual–1.0
LucidellaRibaltasrl,ViaBerna14,46042CastelGoffredo(MN)Italy
Tel.+390376771777–fax+390376772140–emailinfo@ldr.it–webwww.ldr.it
3
c. metalsafetyguard185x185mm,fitted

Shouldoneormoreitemsmiss,wekindlyaskyoutocontactyourdealerimmediately.



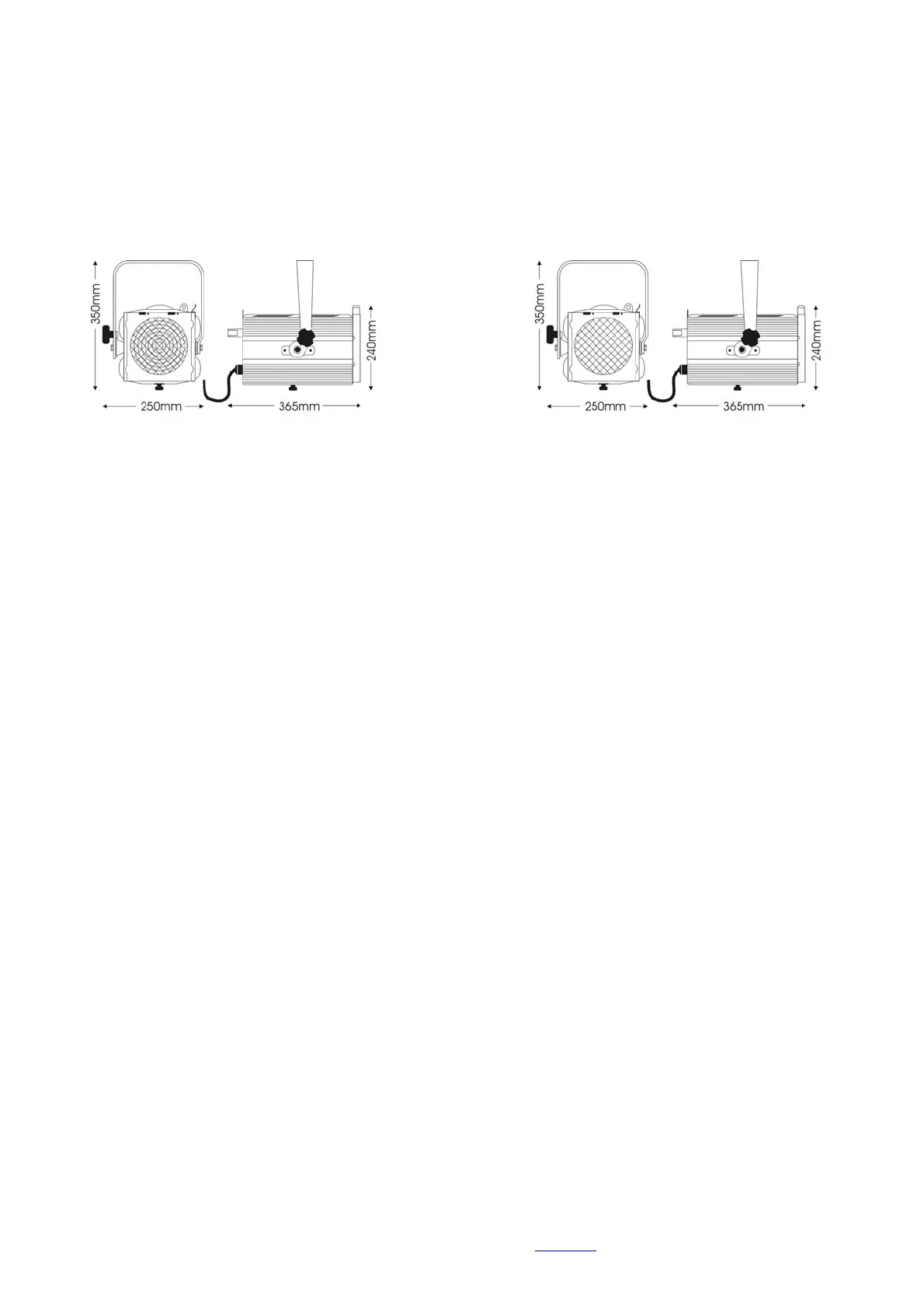

2. WEIGHTANDDIMENSIONS


    

Ariaf1000plusAriapc1000plus
netweight:5,6kgnetweight:6kg
grossweight:7kggrossweight:7,4kg
packingdimensions:48x32x32hcmpackingdimensions:48x32x32hcm


3. IMPORTANTNOTICEBEFORETHEINSTALLATION
1. Makesuretheclampiscorrectlyfixedandstronglytightenedtothe
stirrup
2. Makesuretheunitandanyaccessory(colourscroller,barndoor)aresecurelyfixedtothestructureby
anindividualsafetycable


4. CHOOSINGTHELAMP
Shouldthefixtureyouhavepurchasedhavebeendeliveredwithoutlamp,pleaserefertothe“Compatible
Lamps”sectionontheLDRproduct’sspecification
sheetorchoosefromoneofthebelow‐listedlamps:

650WGX9.5 CP673200°K 120hours  650WGX9.5 T213000°K 900hours
1000WGX9.5 CP703200°K240hours  1000WGX9.5 T193050°K 900hours
1200WGX9.5 CP903200°K 240hours  1200WGX9.5 T293000°K 480hours

LDRrecommendsPhilipslamps


5. LAMP‐HOLDERSETTING
Thelamp‐holderisfactorysetforusagewitheitheraCP70oraT191000Wlamp.ToadjusttheGX9.5lamp‐
holderforusagewitheitheraCP90orT29lamp:

1. removethelampholdersupportplatefromitsseatbyslackeningitsfixing
screw.
2. repositiontheplateinthelowercutandre‐tightenthescrewtofixitinplace.


6. INSTALLATIONORREPLACEMENTOFTHELAMP
• makesuretheunitiscoldanddisconnectedfromthemains
• ifreplacingalampuseaproperthermalprotectionforyour
hands(ex.gloves)in casethelampisstillhot

LDR Aria f1000 plus Series Specifications

General

Brand	LDR
Model	Aria f1000 plus Series
Category	Light Fixture
Language	English
