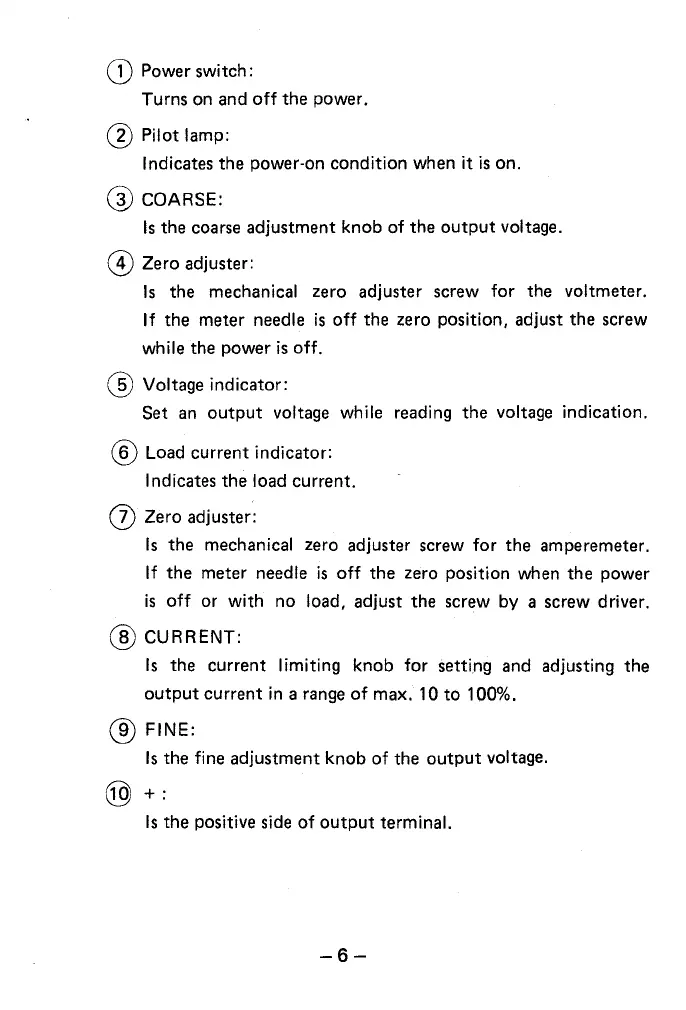

Power switch:

Turns on and

off

the

power.

(])

Pilot lamp:

Indicates

the

power-on condition when it

is

on.

@COARSE:

Is

the

coarse

adjustment

knob

of

the

output

voltage.

@)

Zero adjuster:

Is

the

mechanical zero adjuster screw for

the

voltmeter.

If

the

meter needle

is

off

the

zero position, adjust

the

screw

while

the

power

is

off.

@ Voltage indicator:

Set

an

output

voltage while reading

the

voltage indication.

® Load

current

indicator:

Indicates

the

load

current.

(J)

Zero adjuster:

Is

the

mechanical zero adjuster screw

for

the

amperemeter.

If

the

meter needle

is

off

the

zero position when

the

power

is

off

or

with no load, adjust

the

screw by a screw driver.

@CURRENT:

Is

the

current

limiting knob for setting and adjusting

the

output

current

in

a range

of

max. 10

to

100%.

@FINE:

Is

the

fine

adjustment

knob

of

the

output

voltage.

@

+:

Is

the

positive side

of

output

terminal.
