@ GND:

Is

connected

to

the frame

of

the instrument.

When

the

positive

polarity

or

negative

polarity

is

to

be

connected

to

the

ground, either

an

appropriate

output

terminal should

be

connected

to

the

GND

by a short-circuit bar supplied

as

an

accessory.

When

no bar connection

is

made, the terminal

is

used

as

the ground terminal.

Is

the negative side

of

output

terminal.

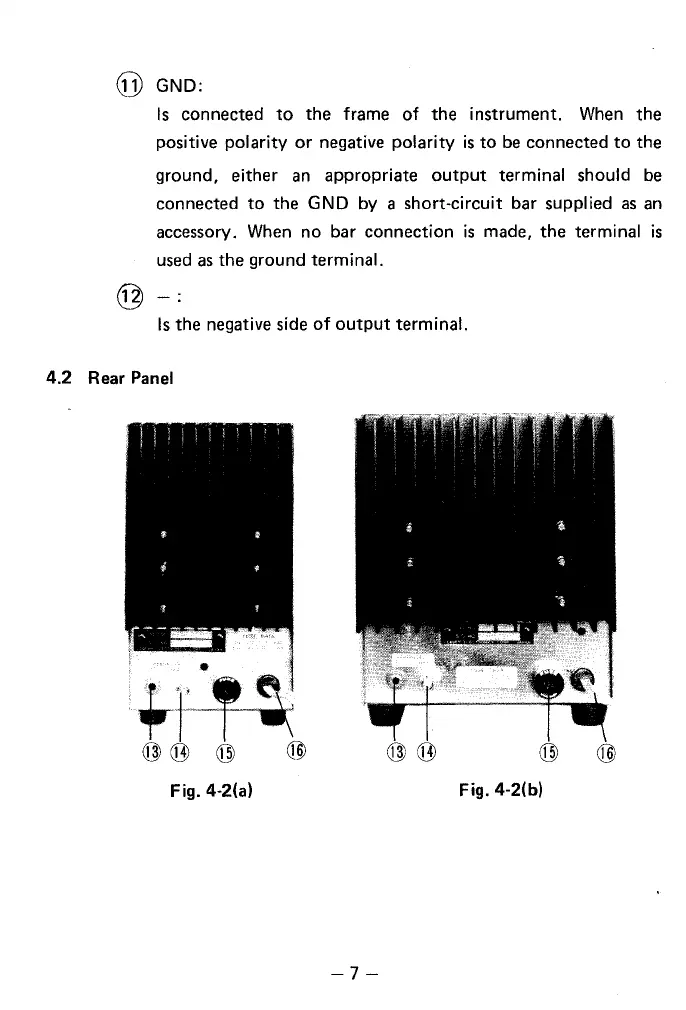

4.2

Rear

Panel

•

~r

'~

@(j])

@ @

Fig. 4-2(a)

Fig. 4-2(b)

-7-
