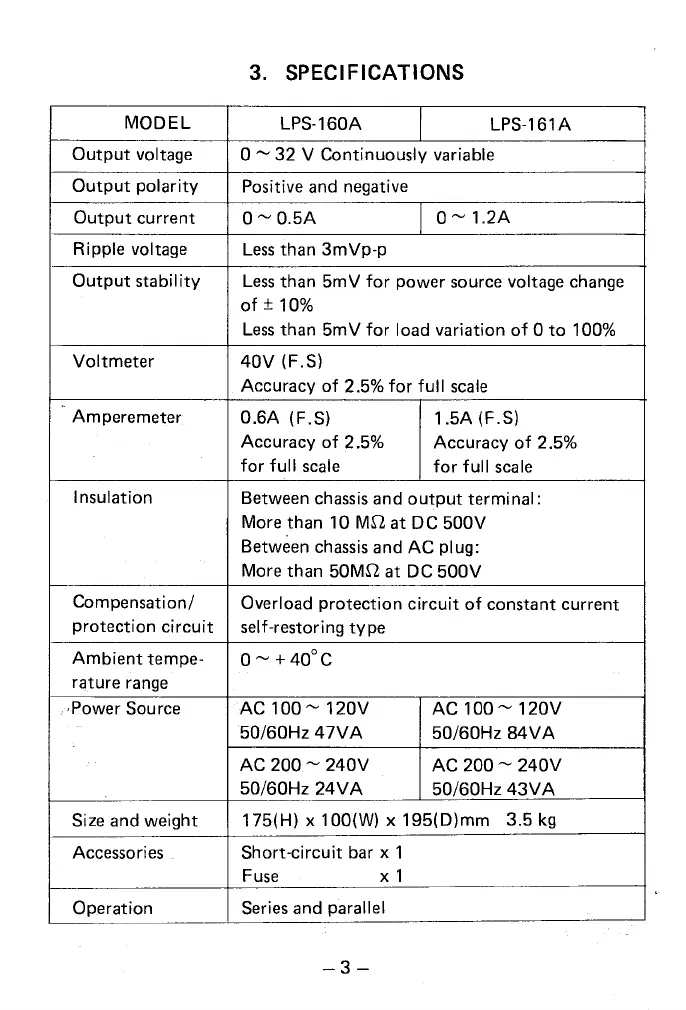

3. SPECIFICATIONS

MODEL

LPS-160A

LPS-161A

Output

voltage

0-

32 V Continuously variable

Output

polarity

Positive

and

negative

Output

current

o-

o.5A

o-1.2A

Ripple voltage

Less

than 3mVp-p

Output

stability

Less

than 5mV

for

power source voltage

change

of±

10%

Less

than 5mV

for

load variation

of

0

to

100%

Voltmeter

40V

(F.S)

Accuracy

of

2.5%

for

full

scale

Amperemeter,

0.6A

(F.S)

1.5A

(F.S)

Accuracy

of

2.5%

Accuracy

of

2.5%

for

full

scale

for

full

scale

Insulation

Between

chassis

and

output

terminal:

More than

10

MQ

at

DC 500V

Between

chassis

and

AC

plug:

More than

50MQ at DC 500V

Compensation/

Overload protection circuit

of

constant current

protection

circuit

self-restoring type

Ambient

tempe-

0-

+ 40°C

rijture

range

;·Power Source

AC

100-

120V

AC

100-

120V

-

50/60Hz 4

7V

A

50/60Hz 84

VA

..

AC

200-

240V

·

AC 200 - 240V

50/60Hz

24

VA

50/60Hz

43V

A

Size

and weight

175(H) x

100(W) x 195(D)mm 3.5

kg

Accessories _ Short-circuit bar x 1

Fuse

x1

Operation

Series

and parallel

-3-
