Defrosting your elan
Changing the plug
Changing the internal light

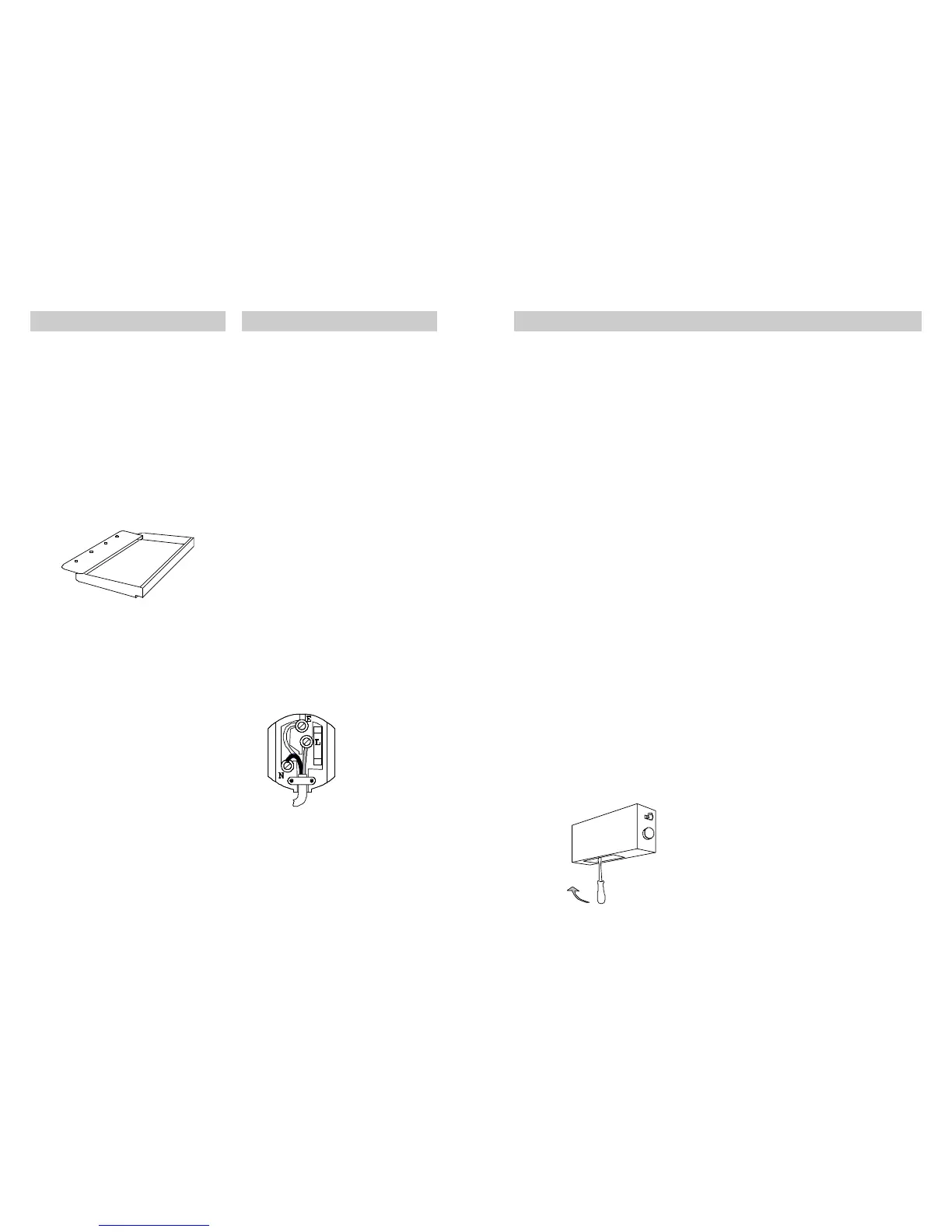

For 1 star size cabinets, the drip tray should
be placed on the top shelf, immediately
under the ice box. Its purpose is to catch
water from the ice as it defrosts.
For 2 star cabinets the drip tray is located on
the runners immediately below the frozen
food compartment
The baffle panel should be placed as shown
below when defrosting. It directs the water
into the drip tray.
Note. Some models have a loose plastic
panel in the base of the drip tray, in addition
to the baffle plate. This panel ensures the
correct operation of your elan and must be
replaced after cleaning and defrosting.
Your elan is fitted with a fused three pin plug
which will be suitable for use in all
residences fitted with sockets to current
specifications.
The elan runs on an electricity supply of
220-240 V 50Hz and must be earthed. If the
plug is removed it should not be re-used,
but thrown away immediately. A cut off plug
can be dangerous if plugged into a socket.
If the plug supplied becomes damaged it
must be replaced with a new one and the
flexible mains lead connected as shown
below.
Note: Only 13 amp fuses approved to
BS 1362 A.S.T.A. should be used. After
replacing or changing a fuse, the fuse cover
in the plug must be replaced. If lost,
replacement fuse covers are available for a
nominal charge from:
Spares Department, Lec Refrigeration plc,
Bognor Regis, West Sussex, P022 9NQ
Tel 01243 863161.
connect BLUE to connect GREEN &
NEUTRAL(N) YELLOW to EARTH (E)
connect BROWN
to LIVE (L)
make sure the cable
is held by the clamp
Do not push excess mains lead into the
compressor (motor) compartment as this
may cause an electrical hazard.
Your elan conforms with the requirements of
EEC Directive No. 821499/EEC & BS 800-
1983 relating to radio interference
suppression.
8
Before carrying out the bulb replacement
always switch off and disconnect the
electricity supply.
• Remove the light's translucent cover by
holding it firmly and pushing on the
small arrow to release the catch and
sliding the cover back in the direction of
the arrow to remove it.
• Remove the old bulb by unscrewing in an
anti-clockwise direction.
• Replace with a new bulb (15W SES) by
screwing it in a clockwise direction
making sure that it is secure in the bulb
holder
• Replace the cover and re-connect your
elan to the electrical supply and switch
on.
212 litre fridges
To remove the light cover, insert a small
screwdriver blade between the housing and
the translucent cover at the centre and prise
it until free.
To replace the light cover, locate cover in
slot at front of housing. insert thumb
between cover and housing at the centre
and spring rear edge of cover upwards into
slot at rear.
9
