7.12 Attaching the Tray
cover
The tray cover attaches to the tray by
placing it over the top it will then clip into
place, to remove reverse the process.
7.11 Assemble the
tray

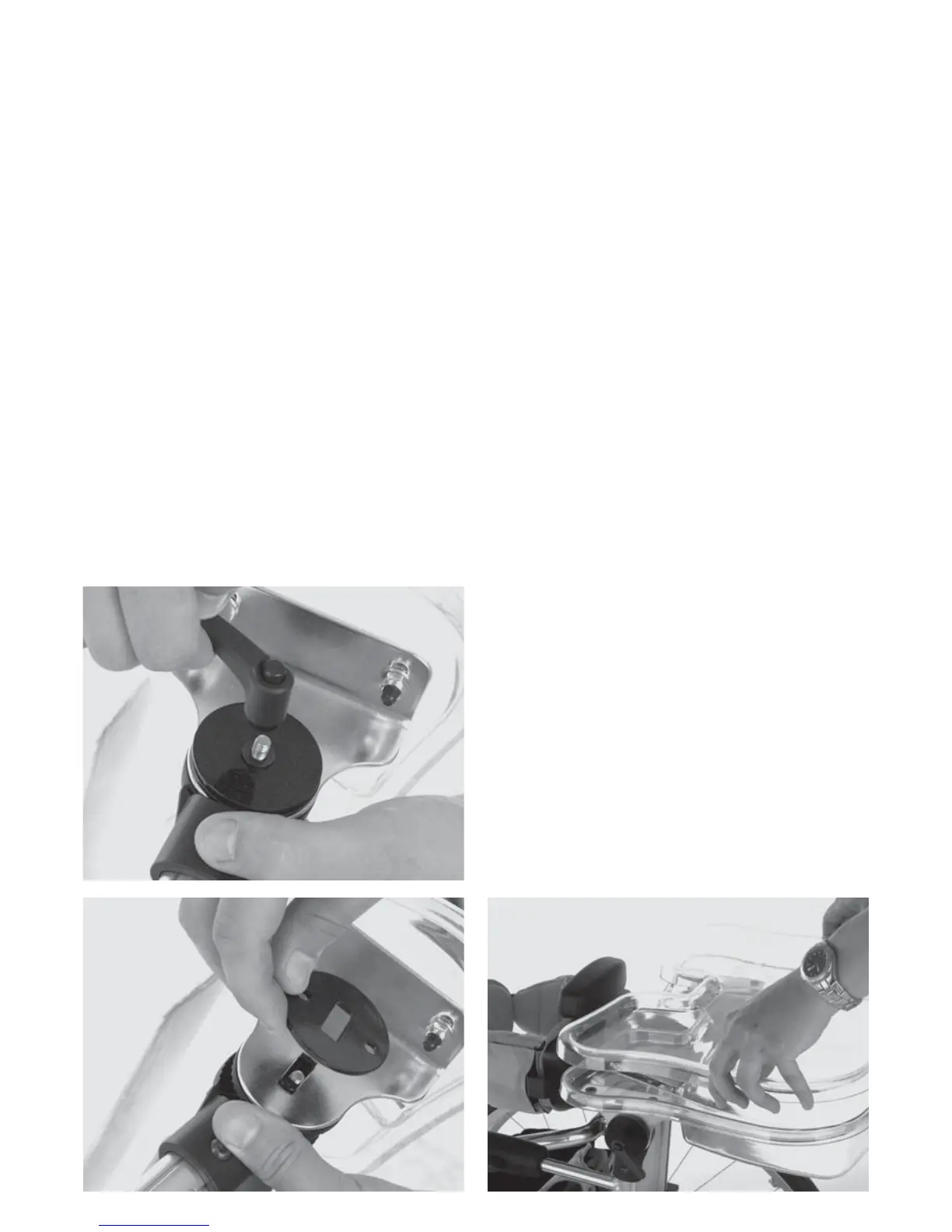

To attached the arms to the tray brackets,
loosen the knob (A), place the moulding to
the inside of the tray plate so the plastic
teeth mesh. Replace the knob on the
outside and secure. Repeat on other side.
Ensure both horizontal tubes are aligned so
they locate in the tray bracket receivers.
