14
GB/IE
Changing the door hinging

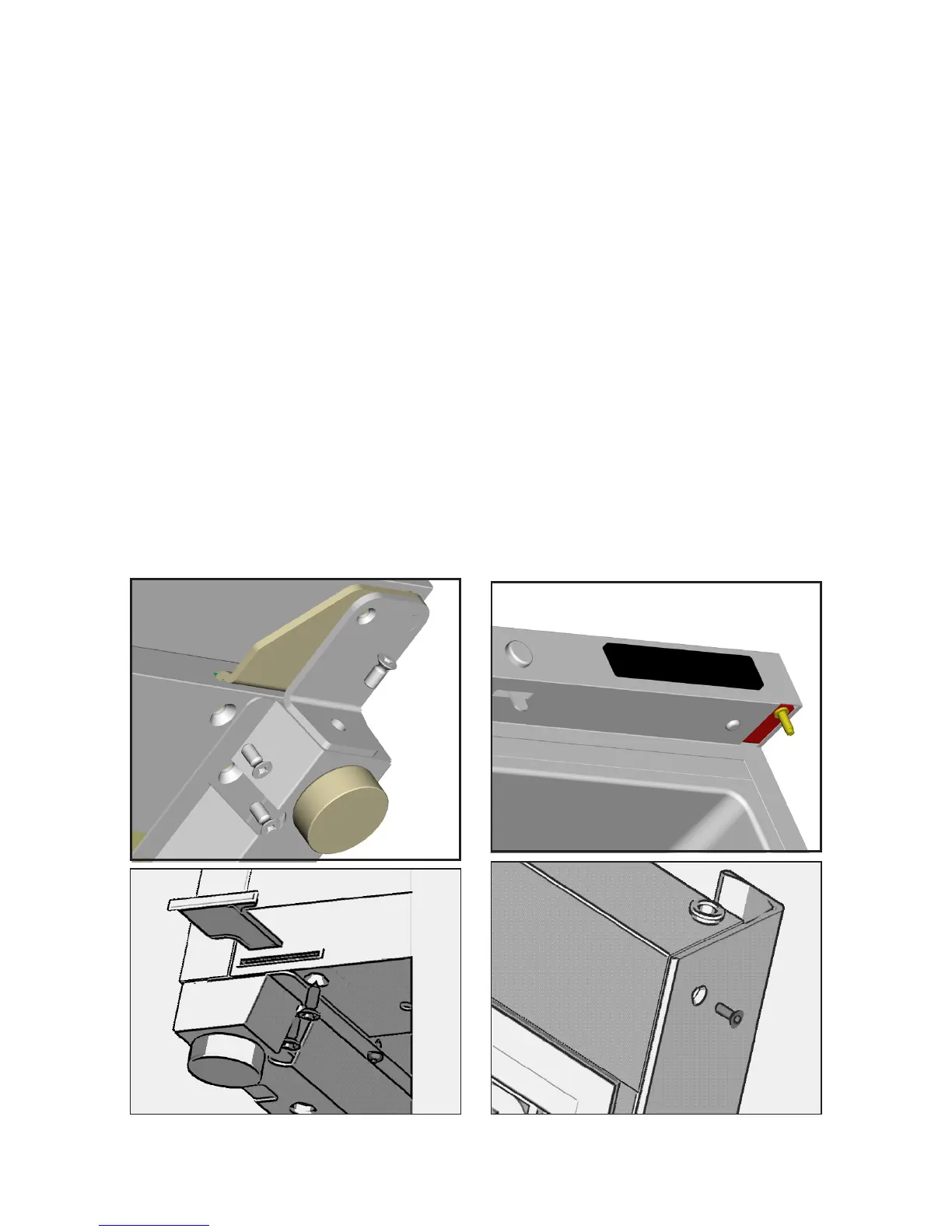

See gures 16-19 for instructions on how to change the door hinging.
The fridge must be off and empty.
- tilt the appliance by 45 degrees backward. Thereby, the lower hinge becomes accessible.
- use cross screw driver to unscrew the three lower hinge bolts (2 bolts from the top,
and one from the front) (see g. 16).
- remove the door and set aside. Make sure the door cannot fall.
- use screw driver to remove the pin below the control panel at the right side of the
fridge. Screw it fully into the hole at the left side (see g. 17).
- unscrew the two lower bolts. Remove the plug from the lower hinge socket with a
screw driver (see g. 18).
- t the fridge door back, insert the top pin into the door slat.
- insert the hinge pin into the lower slat. Screw the hinge fully with a cross screw driver.
- unscrew the door handle (see g. 19).
- t the handle to the opposite side of the door.
- start the appliance according to the relevant instructions.
17
16
18
19
