Lectron Level 2 Charging Station - How to Install

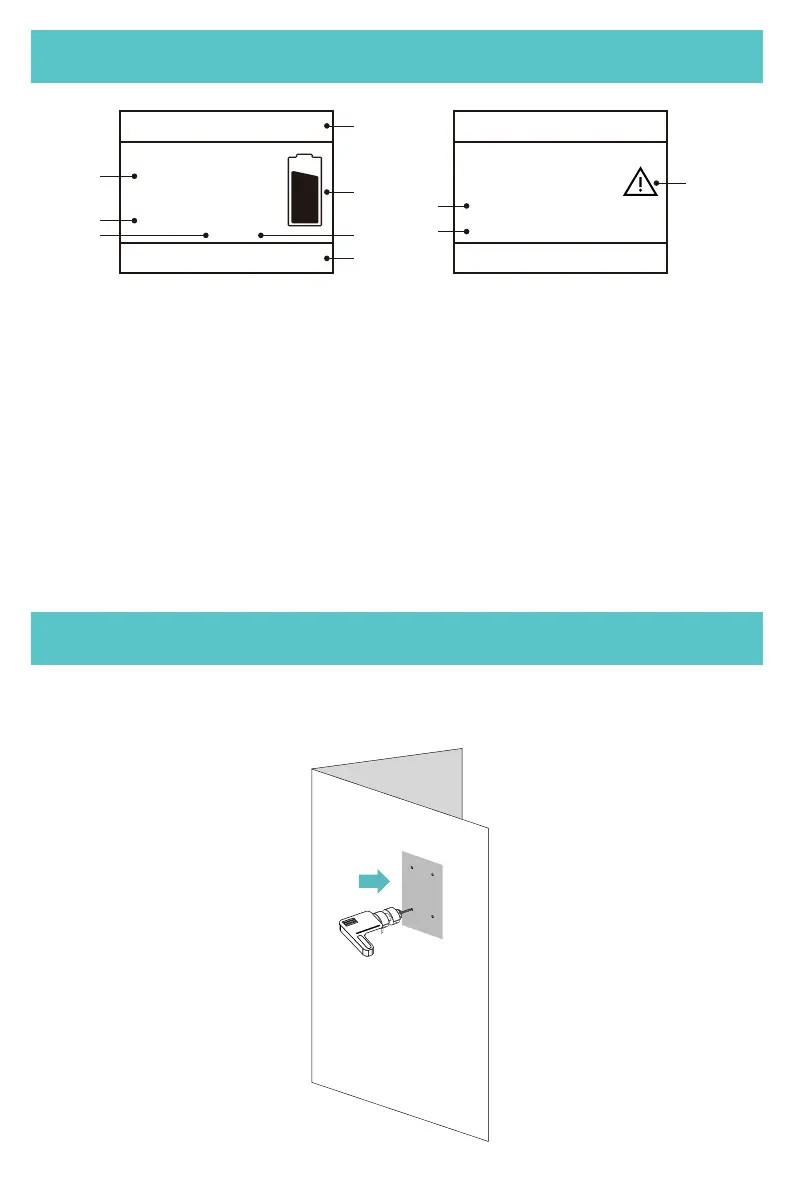

Charging Display Overview
How to Install
Note:
If any problem such as a short current occurs, the charging station will
automatically restart and continue charging.
1. Drill four holes according to the reference paper.
1. Real-time current
2. Real-time voltage
3. Power consumed
4. Temperature
5. Charging icon
Page 3
2
1
3
6
5
4
7
Rated 32A
00: 11: 041.14Kwh212V
EV Charger
30.8A
111.72 ºF
6. Charging time
7. Rated current
8. Cause of fault
9. Automatic restart
10. Fault icon
10
8
9
Rated 32A
00:00:00 FA ULT
Restarting...6
Shot Current
220V 0.00Kwh
EV Charger
31.6A
105.44 ºF
