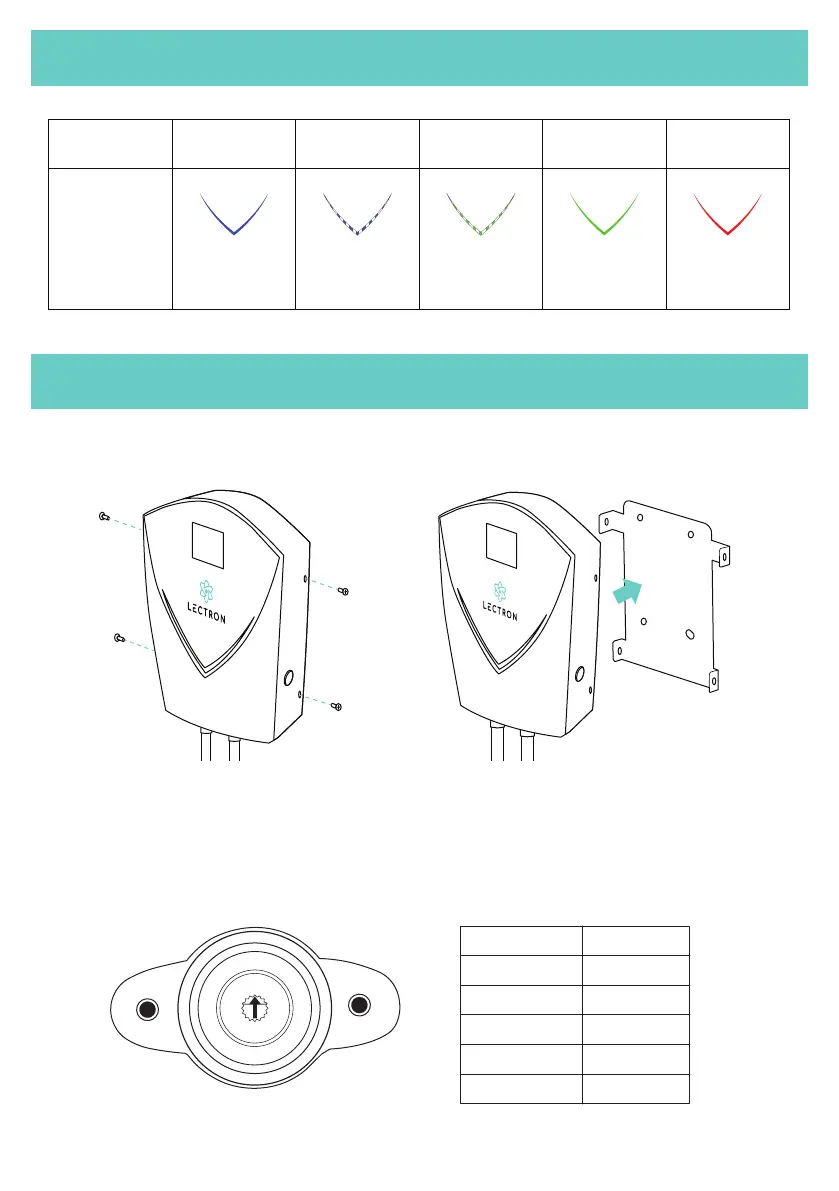

Lectron V-BOX 48A - Charging Status; Pre-Installation

Pre-Installation
Charging Status
Status
LED
Disconnected
Solid
blue
Connected
Rolling
blue
Charging
Rolling
green
Charge
Complete
Solid
green
Fault
Solid
red
4
0
1
2
3
Page 3
By default, the V-BOX has been set to 4 (48A). To adjust the amps, unscrew and
remove the plastic cover from the back of the V-BOX, and turn the dial on the
inside to your preferred setting.
Remove the short screws and lift up on the mounting plate.
0
Dial Position Current (A)
1
2
3
4
16 A
24 A
32 A
40 A
48 A
