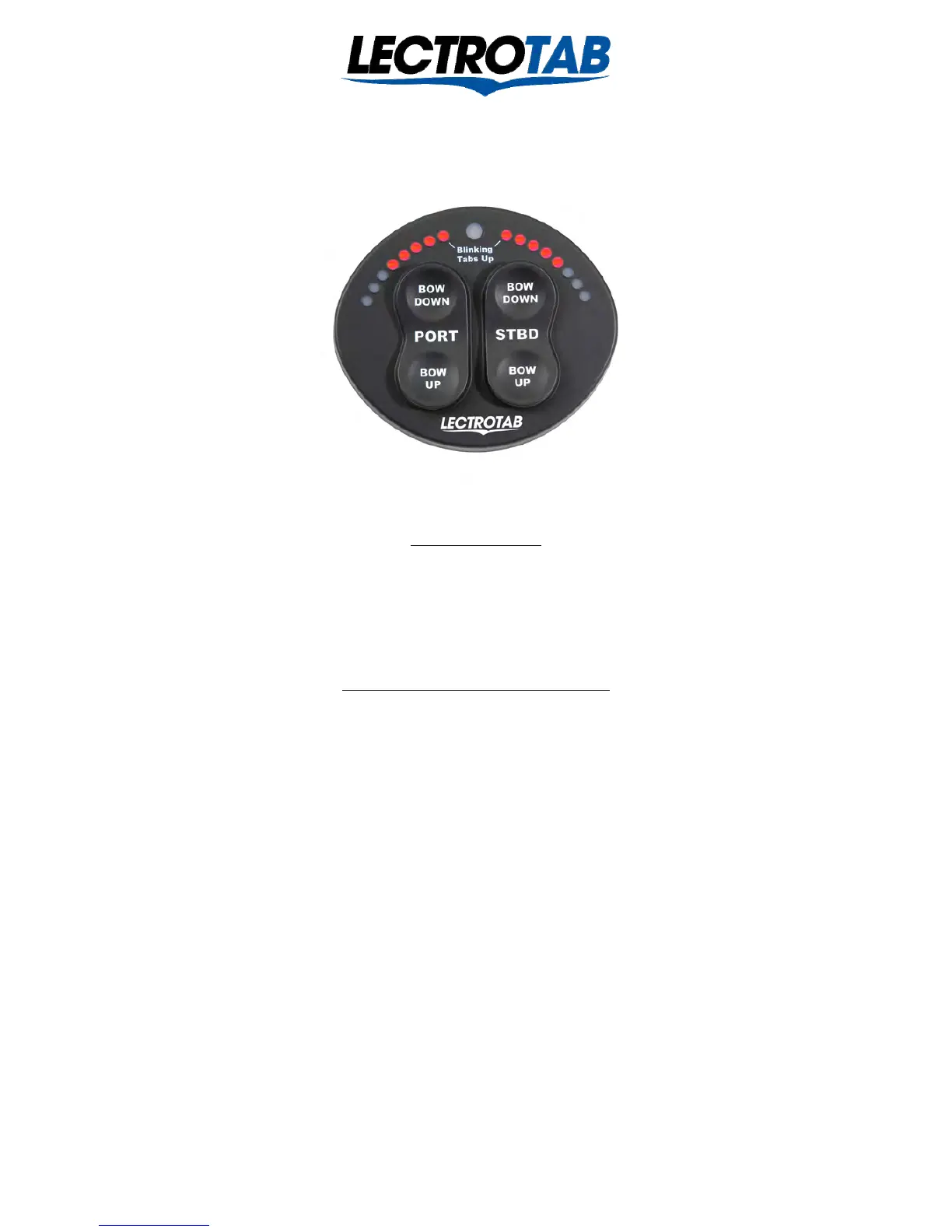

MODEL SETR-61
Trim Tab Control
* The actual size is about 4” wide, 3 ½” high and ½” deep.
Introduction
Thanks for your interest in the Lectrotab model SETR-61, Sealed Electronic Trim and Retract system, with tab position indication.
The SETR-61 “Oval” is either a stand alone or multi-station, software driven, microprocessor based control, featuring positive click
switches with integrated LED position indicators, in a single waterproof unit. The SETR-61 “Oval” is unique in that no position
feedback device is needed in the actuator. Also unique is the single component design of this control; no other interface box or
components are required for operation, and all connections are made directly to the back of the control.
SETR-61, “Oval” Features
• Multi station capable, supporting up to 6 Ovals in the same trim tab system wherein each Oval is a full function control
with no switchover requirements.
• High current outputs; 20 amps for both Port & Starboard actuators.
• Mirror operation at all Ovals; simultaneous use at different stations is OK.
• Independent control of Starboard and Port actuators.
• Eight LED’s, operating sequentially; indicate the position of each tab.
• Automatic dimming for night operation, with each Oval dimming independently.
• Salt water hose down proof and UV protected.
• Ergonomically designed keypad for “Heads Up” operation with tactile feed back switches.
• Any Oval can operate as the master control or as a remote; therefore, only one model is required. Expanding a single
station system to multi-station is a simple add-on with no changes to the original control.
• Actuators, auxiliary switch and main power connect directly to only one Oval in a multi-station system.
• Remotes connect to the master via 22 gage, 2 conductor wire, unshielded and splicible.
• To power the position indicator LED’s, local D.C. power, at about 10 milliamps, needs to be connected to each remote.
• The SETR-61 Oval may be used on 12 or 24 VDC systems.
• Indicators are programmable for use with 4, 6 or 12 second stroke time actuators. Cannot be used with hydraulic trim
tab systems.
Lit # J1107
Revised January 2014
