3 PRODUCT ILLUSTRATIONS & NAMES OF PARTS

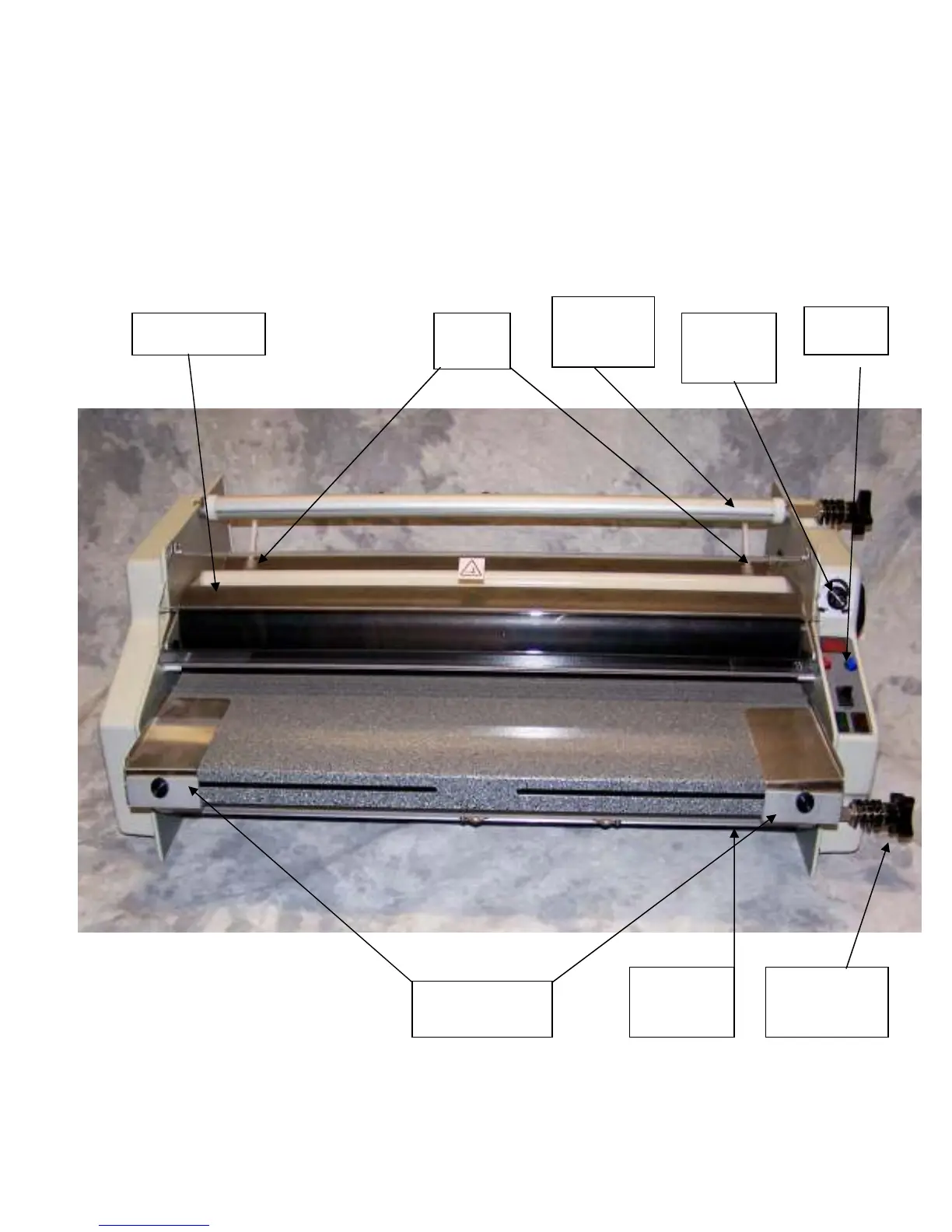

The following photos identify major components and operating controls. Refer to them as
you study the installation, operating, and maintenance procedures described in this manual.
Control
Panel
Upper
supply roll
mandrel
Safety shield
Slitter
Heads
Feed table
guides
Supply roll
tensioning
knob
Bottom
Supply
Roll
Variable
Speed
control
