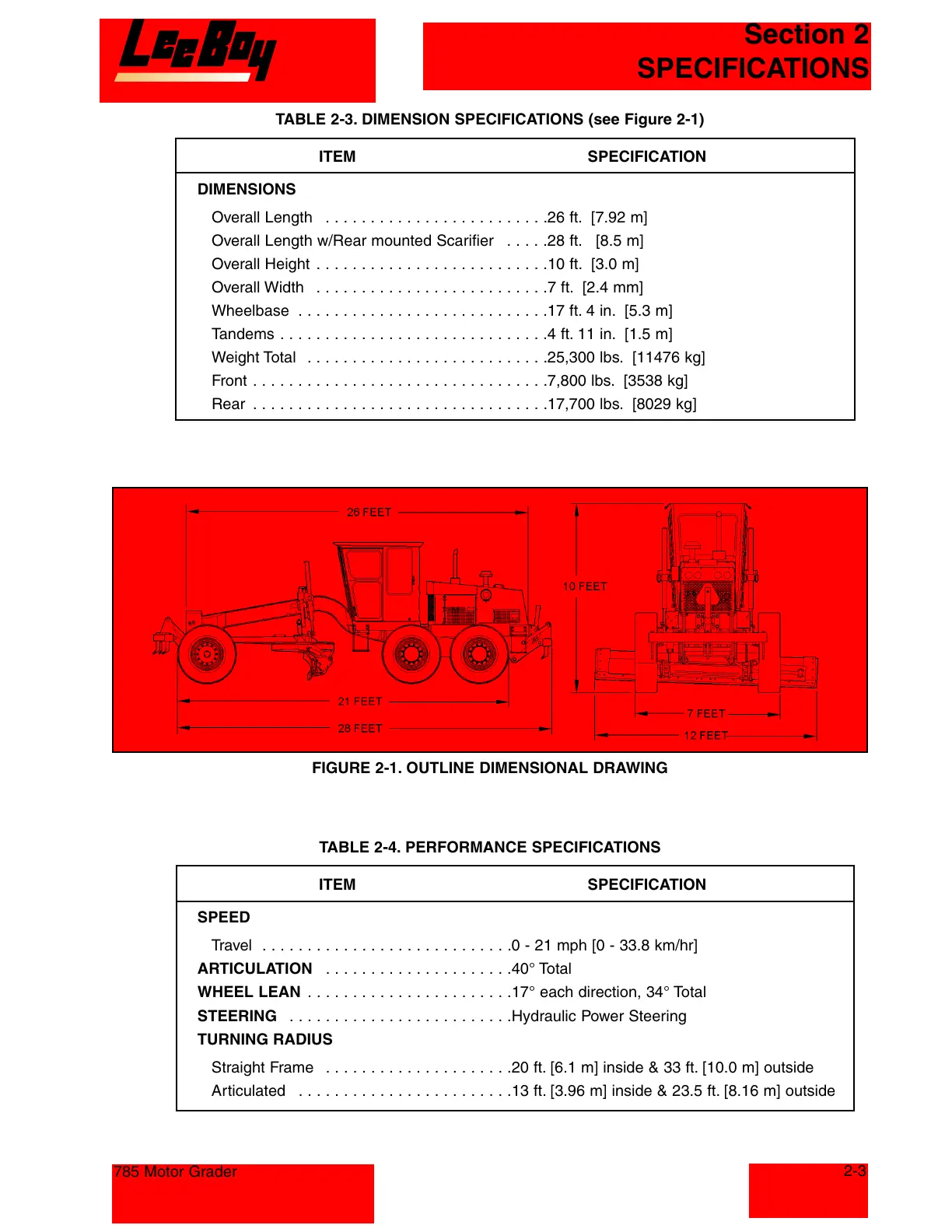

785 Motor Grader
Section 2
SPECIFICATIONS
2-3
TABLE 2-3. DIMENSION SPECIFICATIONS (see Figure 2-1)
ITEM SPECIFICATION
DIMENSIONS
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . .26 ft. [7.92 m]
Overall Length w/Rear mounted Scarifier . . . . .28 ft. [8.5 m]
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . .10 ft. [3.0 m]
Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . .7 ft. [2.4 mm]
Wheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 ft. 4 in. [5.3 m]
Tandems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 ft. 11 in. [1.5 m]
Weight Total . . . . . . . . . . . . . . . . . . . . . . . . . . .25,300 lbs. [11476 kg]
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7,800 lbs. [3538 kg]
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17,700 lbs. [8029 kg]
FIGURE 2-1. OUTLINE DIMENSIONAL DRAWING
TABLE 2-4. PERFORMANCE SPECIFICATIONS
ITEM SPECIFICATION
SPEED
Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 21 mph [0 - 33.8 km/hr]
ARTICULATION . . . . . . . . . . . . . . . . . . . . .40° Total
WHEEL LEAN . . . . . . . . . . . . . . . . . . . . . . .17° each direction, 34° Total
STEERING . . . . . . . . . . . . . . . . . . . . . . . . .Hydraulic Power Steering
TURNING RADIUS
Straight Frame . . . . . . . . . . . . . . . . . . . . .20 ft. [6.1 m] inside & 33 ft. [10.0 m] outside
Articulated . . . . . . . . . . . . . . . . . . . . . . . .13 ft. [3.96 m] inside & 23.5 ft. [8.16 m] outside
