6
Note: If anything is leaning or touching the Vending
Machine, it may cause inaccurate vending transactions.
Merchandiser Leveling:
The merchandiser installation location should have a solid,
level base. If the merchandiser is exhibiting a slight forward
lean, the front of the cabinet should be blocked to bring the
merchandiser to a level position. On auto-defrost models, a
forward lean may prevent proper draining of the evaporator
assembly during the defrost cycle.
Note: Incorrect installation may result in poor vending
transaction performance. Leveling kits come standard with
all vending units.
Leveling kits are available for use on most merchandiser
models. Contact Leer Merchandiser Customer Service
Department. Phone: 800-766-5337 for additional
information.

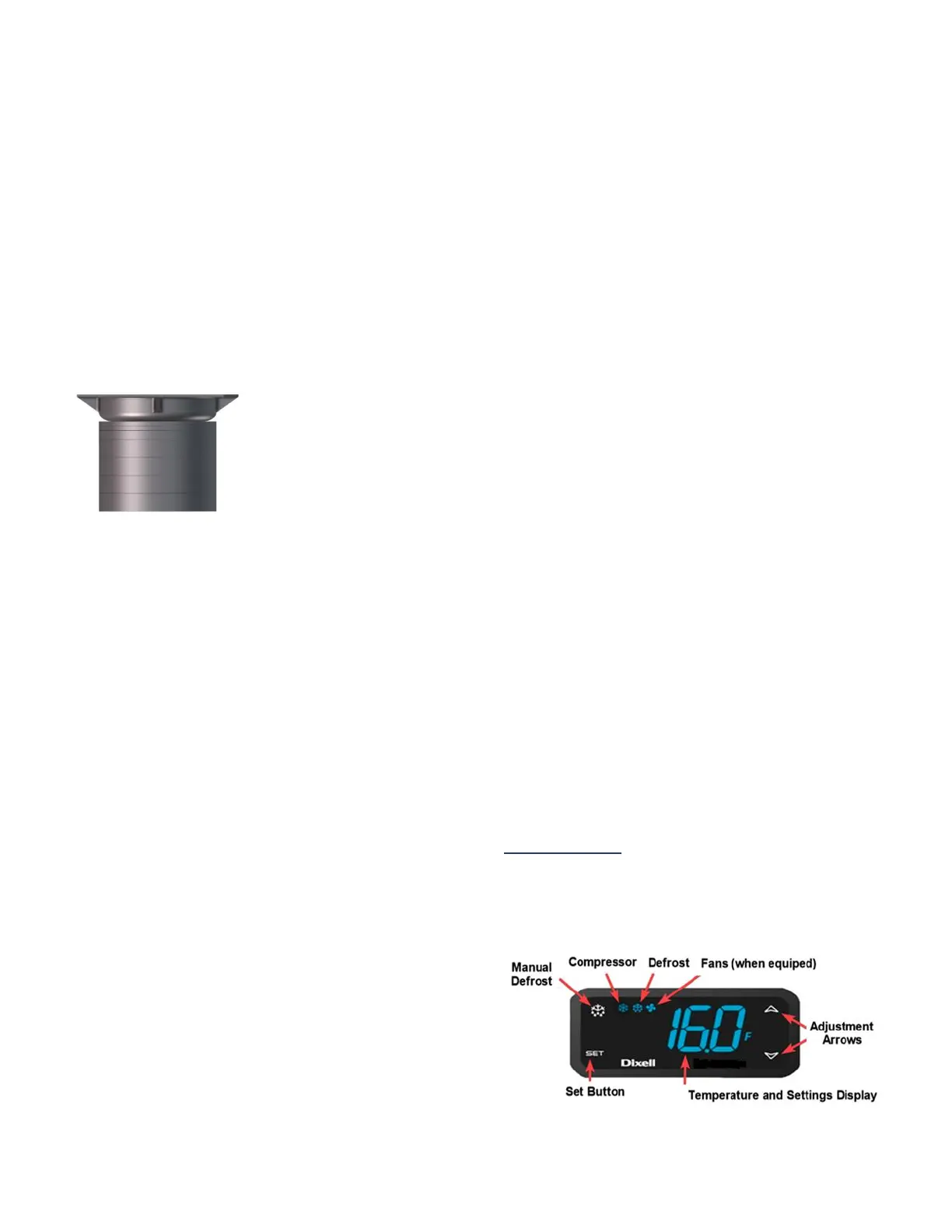

Full leveling kit shown,
inserted into the skid plate of
the merchandiser.
Condensate Evaporator:
Indoor auto-defrost models require a condensate evaporator
heater assembly (sold separately). The condensate
evaporator will require installation by the consumer. The
merchandiser is to be placed so that there is at least 1 inch
(2.54 cm) of air space between the back surface of the
condensate evaporator housing and any wall surface behind
the cabinet which will allow for heat dissipation away from
the surface of the wall. The main power cord should also be
routed to avoid pinching.
Note: Do not operate an auto-defrost model indoors without
having a condensate evaporator assembly installed under the
evaporator drain tube exiting the back wall of the cabinet.
Failure to install this assembly will result in water draining
directly onto the floor during the defrost cycle. This may
result in water damage to the floor and create a hazardous
slip condition in the area surrounding the merchandiser.
For more detailed information regarding the purchase of the
Condensate Evaporator Kit for indoor use, please contact:
Leer Merchandiser Customer Service Department. Phone:
800-766-5337.
Electrical:
Warning! Component parts shall only be replaced with
like components. Electrical and servicing shall be done
by licensed professionals. Disconnect power before
performing service; certain models contain multiple
voltages. Leer does not assume responsibility for any
damage to people or things deriving from violation,
improper use, or noncompliance with Leer’s
instructions.
DO NOT use extension cords. Extension cords may
decrease the voltage to the unit and ultimately cause the
compressor to fail.
Note: Some models are equipped with a main power switch.
Make sure the switch is in the OFF position before plugging
the merchandiser into the outlet.
WARNING: Operating more than one appliance on the
same circuit may result in voltage fluctuations when both
appliances are operating simultaneously. This voltage
fluctuation may lead to premature compressor failure.
Information regarding the electrical voltage and frequency
being supplied to the vending machine can be found on the
machine’s serial data plate located at the upper left-hand
corner of the merchandiser’s interior. Information regarding
the maximum fuse/circuit breaker size required by a specific
model is available from the condensing unit data plate.
Electrical service connections must be in accordance with
the country’s electrical standards and any local code that
may apply.
115v Models:
The merchandiser must be plugged into a dedicated and
properly grounded 115-volt 60hz/1Ph circuit with a circuit
fuse or breaker rated at a 15 or 20 Amps depending on
model. The 20 Amp plug configuration, that some models
come with, should NOT be removed, and never use an
adapter plug.
230v Models:
The merchandiser must be plugged into a dedicated 230-volt
50/60 Hz grounded receptacle electrical outlet with a circuit
fuse or breaker. The condensing unit data plate will indicate
the maximum fuse or breaker size.
Note- 230v only: Due to country differences in power cord
plug requirements, the Leer power cord and condensate
evaporator (when required) are not provided with electrical
plugs to allow assembly of correct country standard plug for
electrical connection. Country specific plugs will be
included on request.
Operation
Temperature Controls:
R290 Merchandisers are only available with an electronic
control.
Electronic Controls Digital Display:
