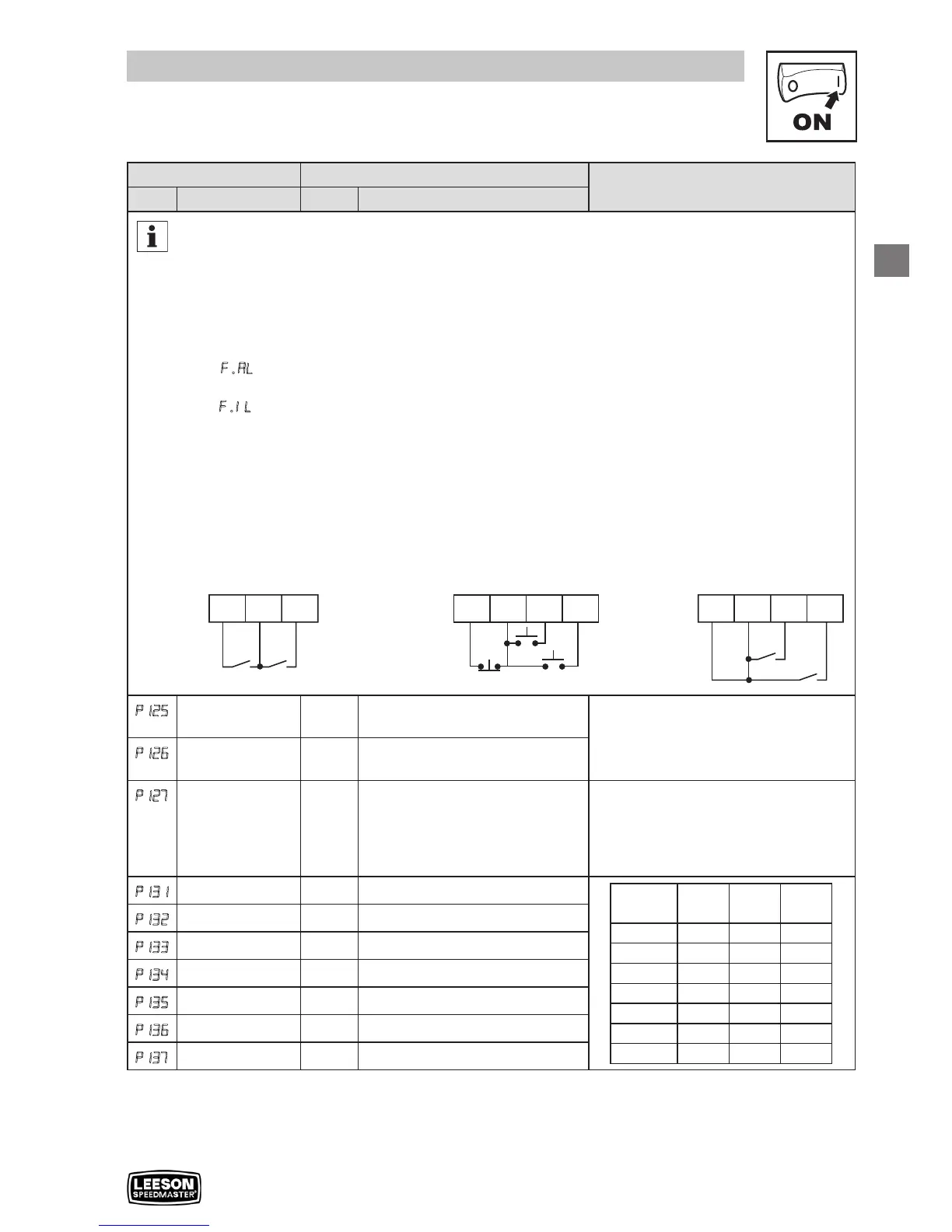

19
Commissioning
Code Possible Settings
IMPORTANT
No. Name Default Selection
Note
• When input is activated, settings 1...7 override P101
• When TB-13A...TB-13C are configured for Auto References other than MOP, TB-13C overrides
TB-13B, and TB-13B overrides TB-13A. Any other Auto Reference will have priority over MOP.
• Settings 10...14 are only valid in Terminal Strip mode (P100 = 1, 4, 5)
• If Start/Run/Jog Forward and Start/Run/Jog Reverse are both activated, drive will STOP
• If Jog input is activated while the drive is running, the drive will enter Jog mode; when Jog input is
deactivated, drive will STOP
• An F.AL fault will occur if the Assertion Level switch (ALsw) position does not match the
P120 setting and any of the digital inputs (P121...P123) are set to a value other than 0.
• An F.IL fault will occur under the following conditions:
- TB-13A...TB-13C settings are duplicated (each setting, except 0 and 3, can only be used once)
- One input is set to “MOP Up” and another is not set to “MOP Down”, or vice-versa.
- One input is set to 10 and another input is set to 11…14.
- One input is set to 11 or 12 and another input is set for 13 or 14.
• Typical control circuits are shown below:
- If any input is set to 10, 12 or 14, P112 must be set to 1 for Reverse action to function.
Run / Stop
with Direction
P121 = 10
Start Forward /
Start Reverse
P121 = 11, P122 = 12
Run Forward /
Run Reverse
P121 = 13, P122 = 14
P125
Acceleration
Time 2
20.0 0.0 {s} 3600 • Selected using TB-13A...TB-13C
(P121...P123 = 17)
• For S-ramp accel/decel, adjust P106
P126
Deceleration
Time 2
20.0 0.0 {s} 3600
p127
Deceleration
Time for Auxiliary
Ramp to Stop
20.0 0.0 {s} 3600 • Selected using TB-13A...TB-13C
(P121...P123 = 19).
• For S-ramp accel/decel, adjust P106
• Once executed, this ramp time has
priority over P105 and P126.
p131
Preset Speed #1 0.0 0.0 {Hz} 500
PRESET
SPEED
13A 13B 13C
1 X -- --
2 -- X --
3 -- -- X
4 X X --
5 X -- X
6 -- X X
7 X X X
p132
Preset Speed #2 0.0 0.0 {Hz} 500
p133
Preset Speed #3 0.0 0.0 {Hz} 500
p134
Preset Speed #4 0.0 0.0 {Hz} 500
p135
Preset Speed #5 0.0 0.0 {Hz} 500
p136
Preset Speed #6 0.0 0.0 {Hz} 500
p137
Preset Speed #7 0.0 0.0 {Hz} 500
