lefeirc SN-L Plus User Manual

SN-L+ USER MANUAL
3

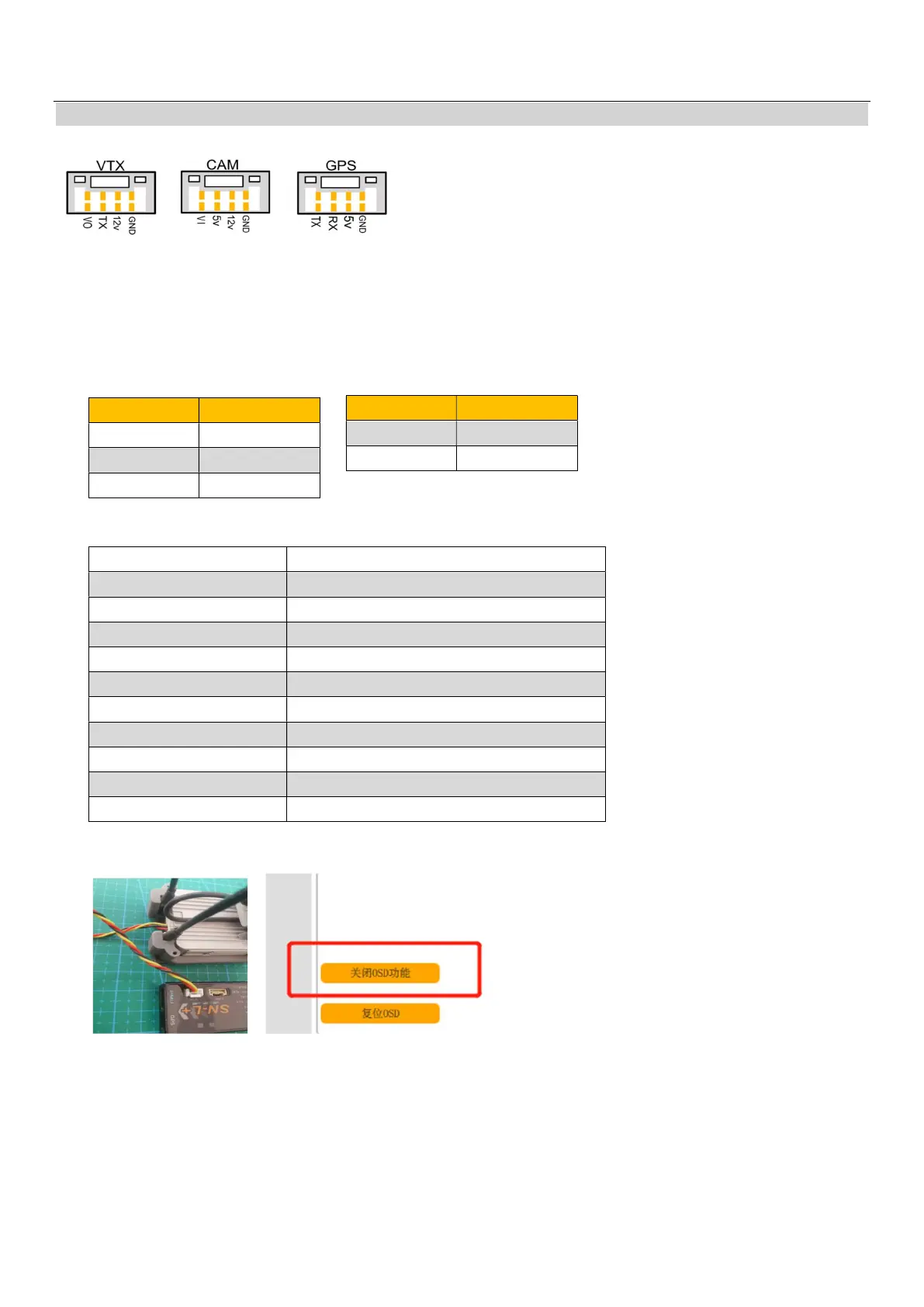

1. INTERFACE：
 POWER
① VTX, CAM, are powered by PMU 12V
② GPS, FC are powered by PMU 5V
③ Servo and receiver are powered by external BEC
 LED
RED LED GPS
OFF disconnect
FLASH Satellite < 7
ON Satellite > 6
 CONNECTOR
AIL AIL servo
ELE ELE servo
THR ESC signal
RUD RUD servo
AS / AUX1 Airspeed connector/AUX1
AUX2 AUX2
PPM / AUX3 PPM connector/AUX3
SBUS SBUS
VTX Video transmitter
CAM camera
GPS GPS/ upgrade FW / tune parameters
 HOW TO CONNECT DIGITAL VIDEO TRANSMITTER
GCS ver1.5.0
If you do not use OSD function, please close it by SN_GCS.
Set telemetry port as <DJI> by OSD <MISC> or SN_GCS.
GREEN LED RC
FLASH Lose control
ON normal
