Legacy LA970 User Manual

speakers

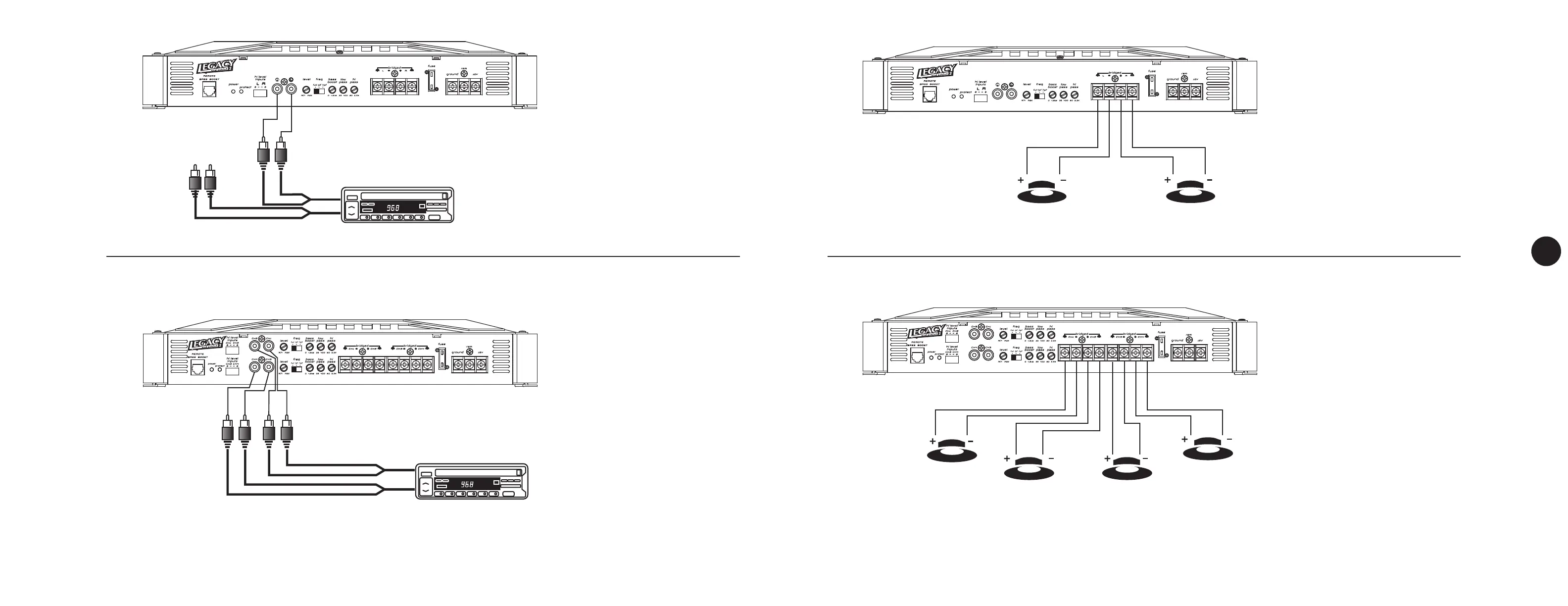

Speaker Connections
Input Connections
Bridged Input Connection
4 CH Bridged Input
from 2 CH Audio Source
CH1+2 = Left Channel
CH3+4 = Right Channel
Basic Stereo Output
Basic 4CH Output
9
head unit
Y adaptors
to a second
amplifier
Left Output
Right Output
FRONT
speakers
REAR
speakers
L
R
R L
LEFT speaker RIGHT speaker
2CH AMPS
LA670
LA870
4CH AMPS
LA370
LA470
LA570
LA770
LA970
LA1470
LA1870
LA2070
LA670
LA870
4CH AMPS
2CH AMPS
LA370
LA470
LA570
LA770
LA970
LA1470
LA1870
LA2070
head unit
Y adaptors

Legacy LA970 Specifications

General

Brand	Legacy
Model	LA970
Category	Car Amplifier
Language	English
