Legacy Predator LA-1068 User Manual

2CH AMPS
LA- 468
LA- 568
LA- 768
LA- 968
LA- 1468
LA- 1868
LA- 2068
LA- 2268
4CH AMPS
LA- 668
LA- 868
LA- 1068
LA- 668
LA- 868
LA- 1068
4CH AMPS
Speakers
Speaker Connections
inputs
Input Connections
11
Basic Stereo Output
Basic 4CH Output
FRONT
speakers
REAR
speakers
L
R
R L
LEFT speaker RIGHT speaker

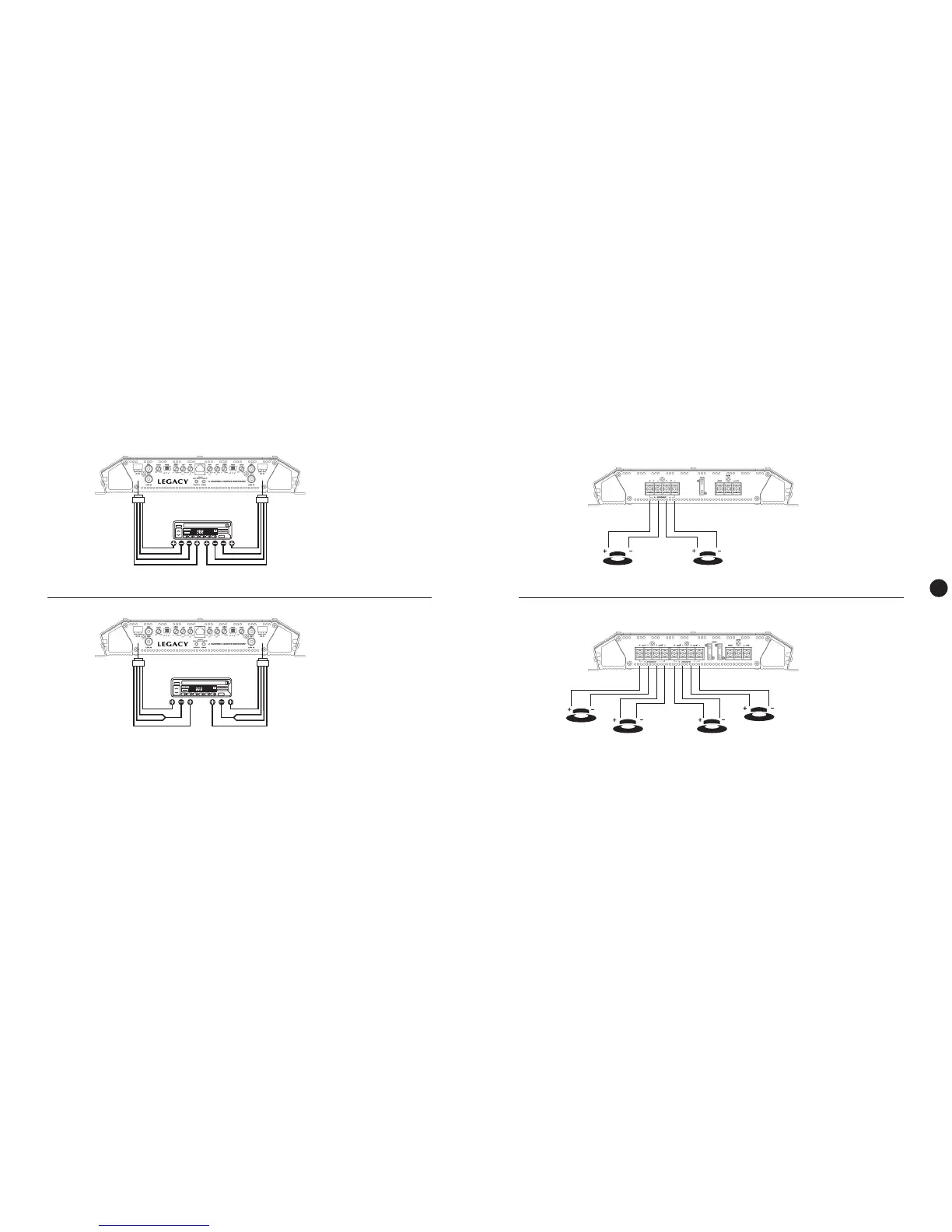

High Level 4 CH Stereo Input
from 4CH Audio Source
floating ground connection
wiring harness
L R
REAR FRONT
L R
orange
black
black
orange
orange
black
black
orange
head unit
High Level 4 CH Stereo Input
from 4CH Audio Source
common ground connection
head unit
RL R L
REAR FRONT
orange
black
black
orange
orange
black
black
orange

Legacy Predator LA-1068 Specifications

General

Brand	Legacy
Model	Predator LA-1068
Category	Car Amplifier
Language	English
