Legacy Predator LA-1068 - Page 8

2CH AMPS
LA- 468
LA- 568
LA- 768
LA- 968
LA- 1468
LA- 1868
LA- 2068
LA- 2268
4CH AMPS
LA- 668
LA- 868
LA- 1068
Speakers

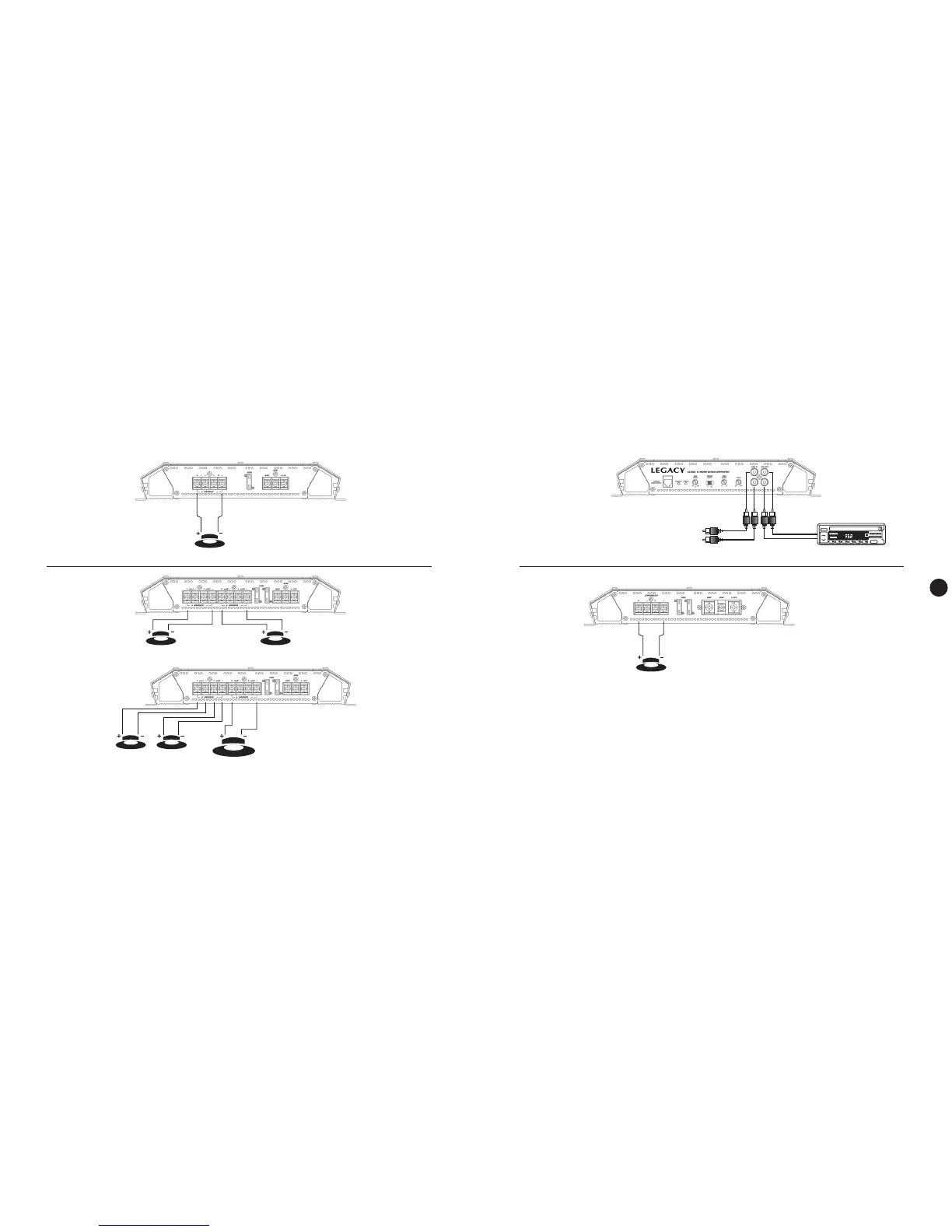

Speaker Connections
13
inputs/Speaker
Low Level Stereo Input Connection
Input Connections/Speaker Connection
2 CH Mono-Bridged Output
speakers
L R
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
MONO CHANNEL
AMPS
LA- 2268
2 CH Stereo plus
Mono-Bridged
Subwoofer Output
speakers
L
Mono
Subwoofer
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
R
Bridged Mono Output
speaker
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
Speaker Output Connection
TO SATELLITE AMPLIFIER
LINE INPUT
L/R Audio
Outputs
head unit
subwoofer
MINIMUM
SPEAKER
IMPEDANCE
1.3~4 OHMS!
