HDMI
Installation
Connection to HDMI Input
Connecting to an HD Set-Top Box or High Definition DVD Player
Using HDMI
For BEST video performance
Connect to external equipment that offers HDMI, an uncompressed, all
digital video / audio interface found on today’s HD digital set top boxes
and Blu-ray players. Use of this pure digital technology offers enhanced
high definition video and digital audio all via a single cable.
There are three (3) HDMI inputs available for use with HD set top boxes,
gaming consoles and HD DVD / Blu-ray players.

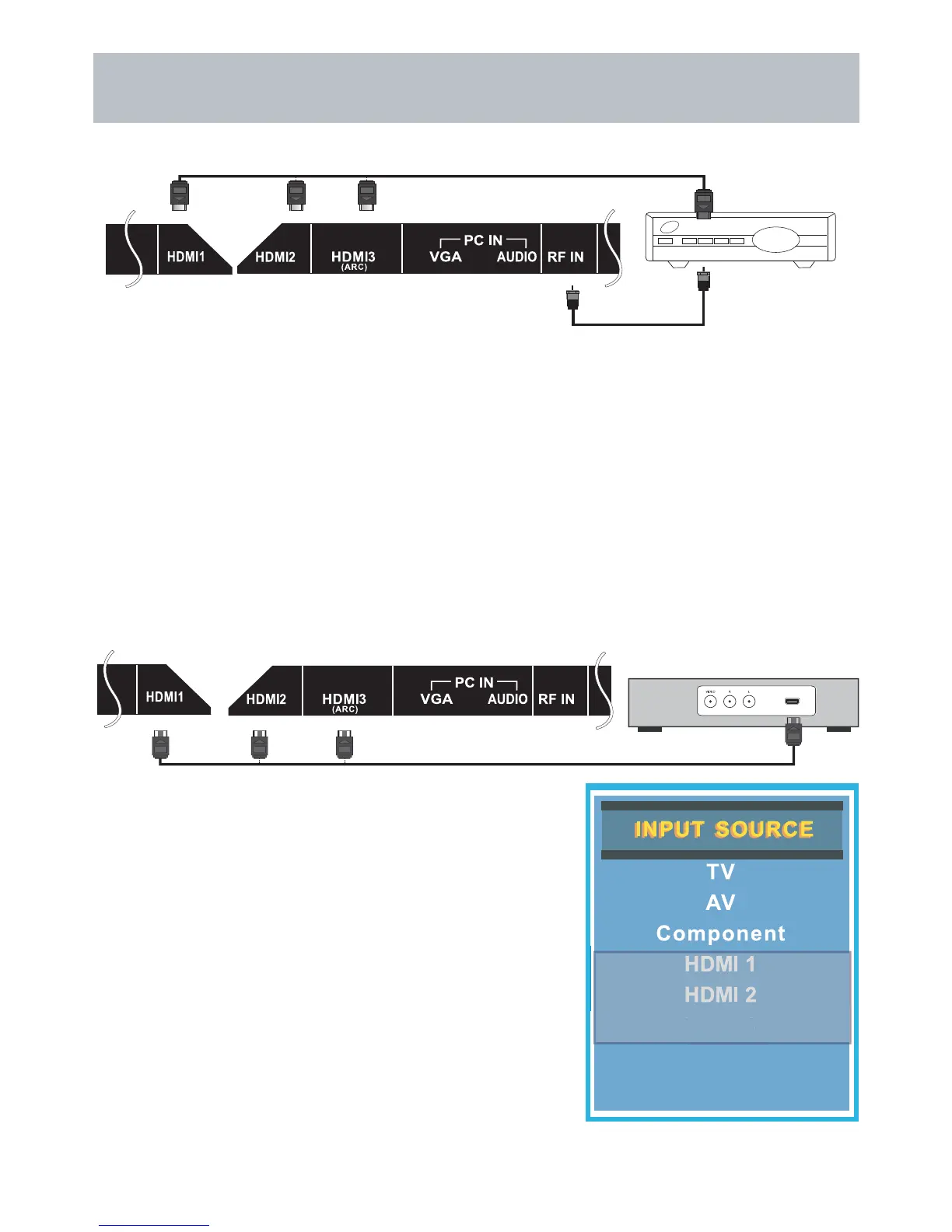

How to Connect HDMI
• From your external digital equipment, connect an HDMI cable from
the HDMI output to the HDMI input on the TV’s panel.
How To Use
• Press the INPUT button on the remote control. Use arrow
buttons to highlight the input to view (HDMI1,2,3 ) then press ENTER .
Coaxial / RF Cable
(not included)
Optional HDMI cable ( not included )
Cable / Satellite
set top box
Optional HDMI cable ( not included )
Digital set top box, gaming console,or
Blu-ray w / HDMI interface
Digital Cable / Satellite Set Top Box
How to connect with Digital Cable / Satellite Set Top Box
• Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV’s
panel. Select Ch. 3 or 4 on the TV and select a channel.
• For greater performance, if possible, use component or an HDMI installation(shown). Refer to your set top box user
manual.
