Lehle DUAL EXPRESSION - Typical Uses and Connections; As a Classic Expression Pedal

17
LEHLE GmbH · Germany · www.lehle.com · support@lehle.com
TYPICAL USES
LEHLE DUAL EXPRESSION AS A CLASSIC EXPRESSION PEDAL
Control of a specific parameter of your
eects pedal is probably the most popu-
lar application.
If you are unsure how to set the param-
eter you wish to control, if you need a TRS
or TS cable and if you should use the 10K
or 50K socket, please refer to the manual
of your eects pedal.
How to do this:
1. At the LEHLE DUAL EXPRESSION the
LEDs of RTS and TRS should be both on.
This way the Polarity Autodetection is ac-
tive.
2. Connect the 50K or 10K socket to the
expression input socket of your eects
pedal.
3. After the LEDs of RTS and TRS now
have started and stopped flashing, the
LEHLE DUAL EXPRESSION has selected
the correct polarity automatically.
4. Move the rocker of the LEHLE DUAL
EXPRESSION.
5. There you go!

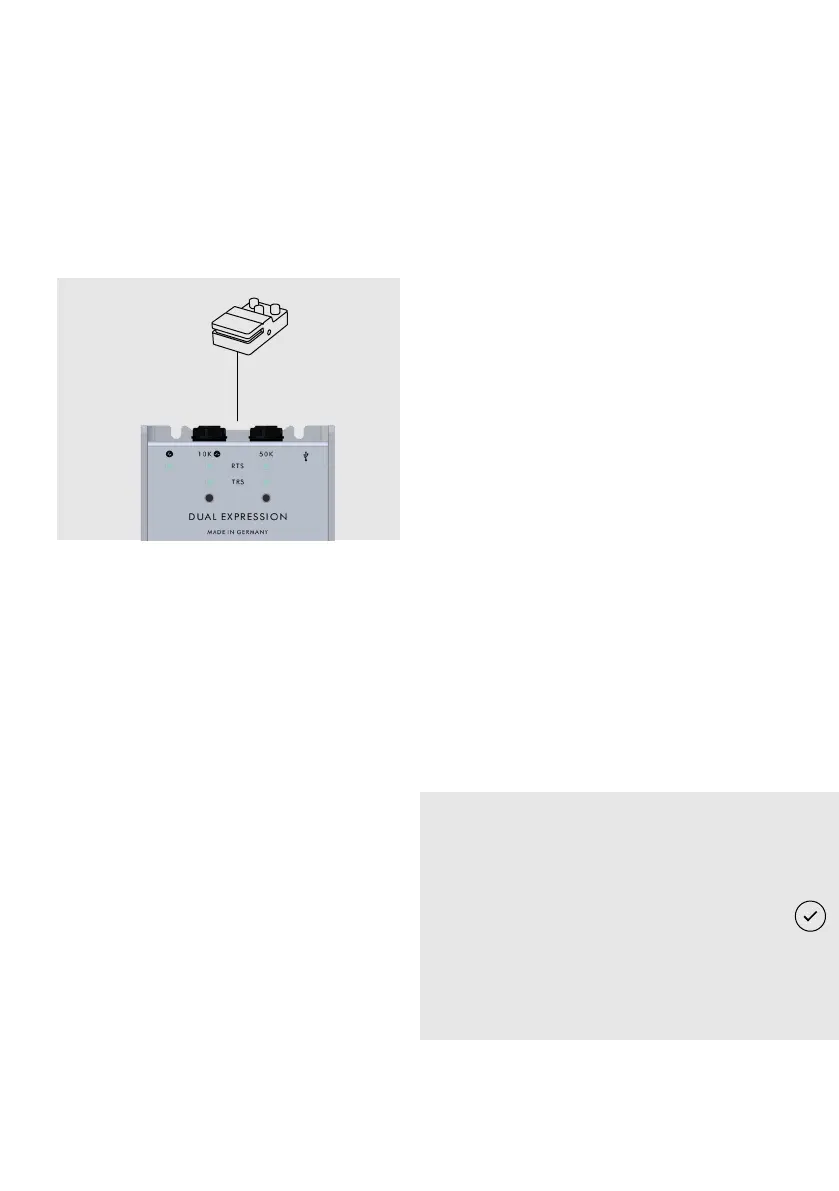

50K EXP socket eects pedal
EXP socket eects pedal10K
DEVICE CONNECTIONS
If your eects pedal doesn‘t react
properly:
- Try the other output socket (2 or 3) of
the LEHLE DUAL EXPRESSION.
- Depending on which output socket you
are using (2 or 3), toggle the 10K button
(6) or the 50K button (7) to change the
polarity manually.
