LEHLE DUAL EXPRESSION WITH A SYNTHESIZER
Keyboards, synthesizers and master key-
boards often have expression pedal in-
puts.
With the LEHLE DUAL EXPRESSION you
can control parameters such as volume,
eects amount, pitch, filter, and so on.
The possibilities are almost endless.
How to do this:
1. At the LEHLE DUAL EXPRESSION the
LEDs of RTS and TRS should be both on.
This way the Polarity Autodetection is
active.
2. Connect the 50K or 10K socket to the
expression input of your keyboard instru-
ment.
3. After the LEDs of RTS and TRS have
started and stopped flashing, the
LEHLE DUAL EXPRESSION has selected
the correct polarity automatically.
4. Move the rocker of the LEHLE DUAL
EXPRESSION.
5. There you go!

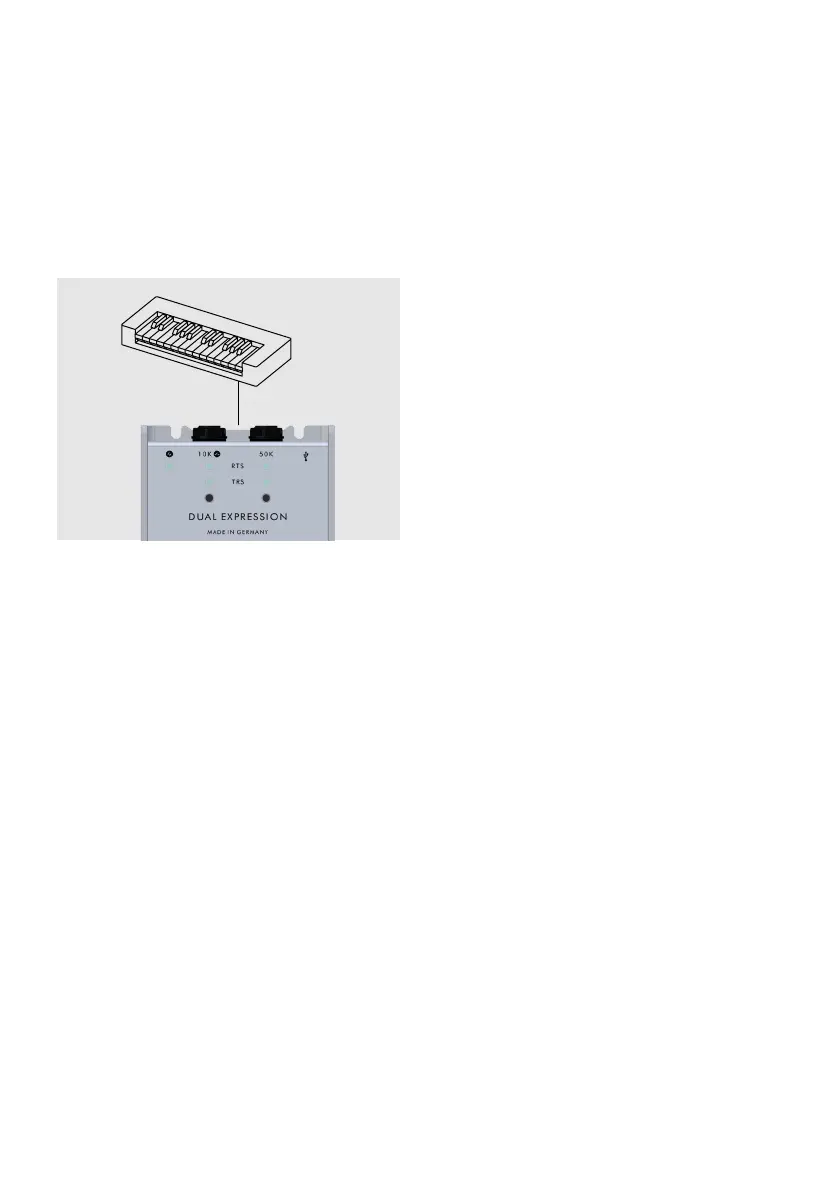

DEVICE CONNECTIONS
50K EXP socket synthesizer
EXP socket synthesizer10K
