LEHLE GmbH · Germany · www.lehle.com · support@lehle.com
LEHLE P-SPLIT III AS A BALANCED/UNBALANCED SIGNAL CONVERTER
Some units feature only balanced inputs
and outputs, whereas others have only
unbalanced inputs and outputs. A LEHLE
P-SPLIT III can be used to connect these,
also enabling you to separate the ground
connection (see “Types of signal routing”,
pages 6 & 7).
HOW TO DO THIS
1. Connect the balanced or unbalanced
signal source to the input socket (1) of the
Lehle P-Split III.
2. Do not use the DIR socket (2).
3. Connect the balanced or unbalanced
signal input to the ISO socket (5).
4. Use the ground lift switch (4) to deter-
mine the position in which the most back-
ground noise is eliminated.
5. There you go!

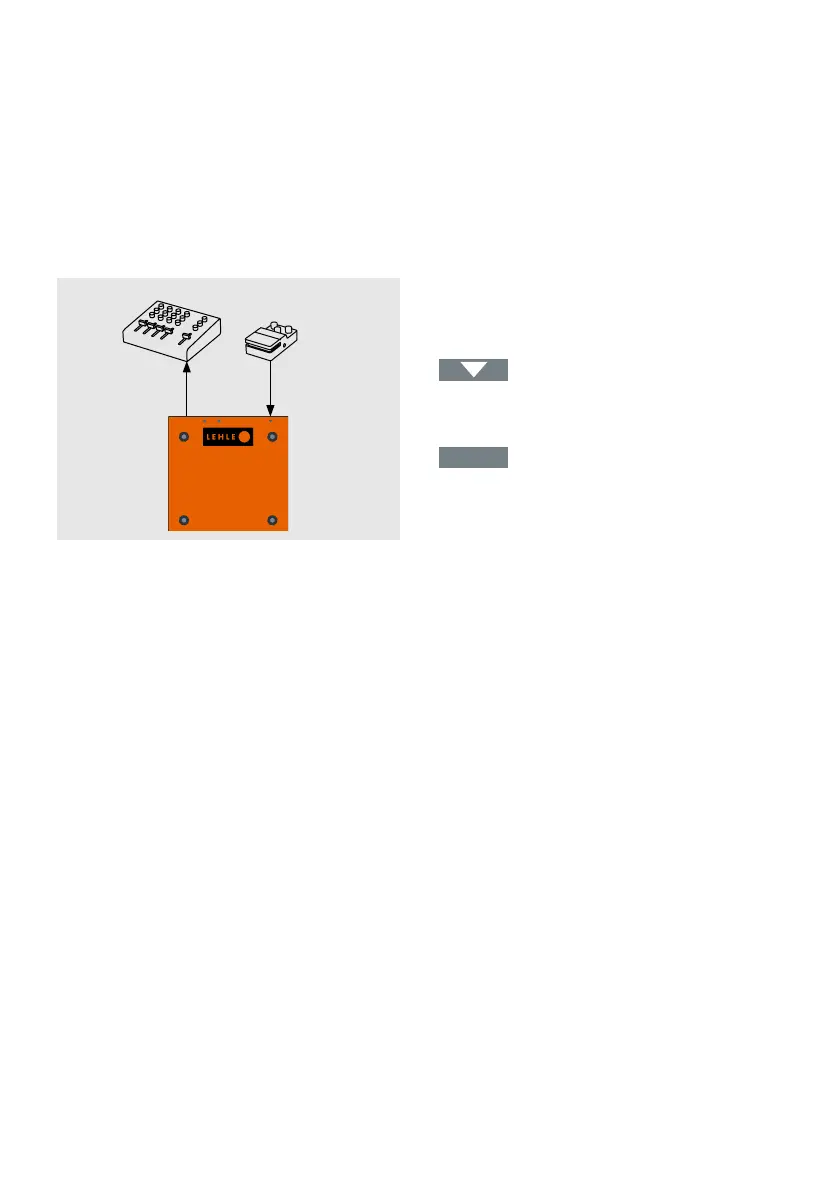

DEVICE CONNECTION
Input Signal source
(un)balanced
Output Signal input
(un)balanced
ISO
DIR
ISO
MADE IN GERMANY
P-SPLIT
