GENERAL DESCRIPTION
DIR
ISO
MADE IN GERMANY
P-SPLIT

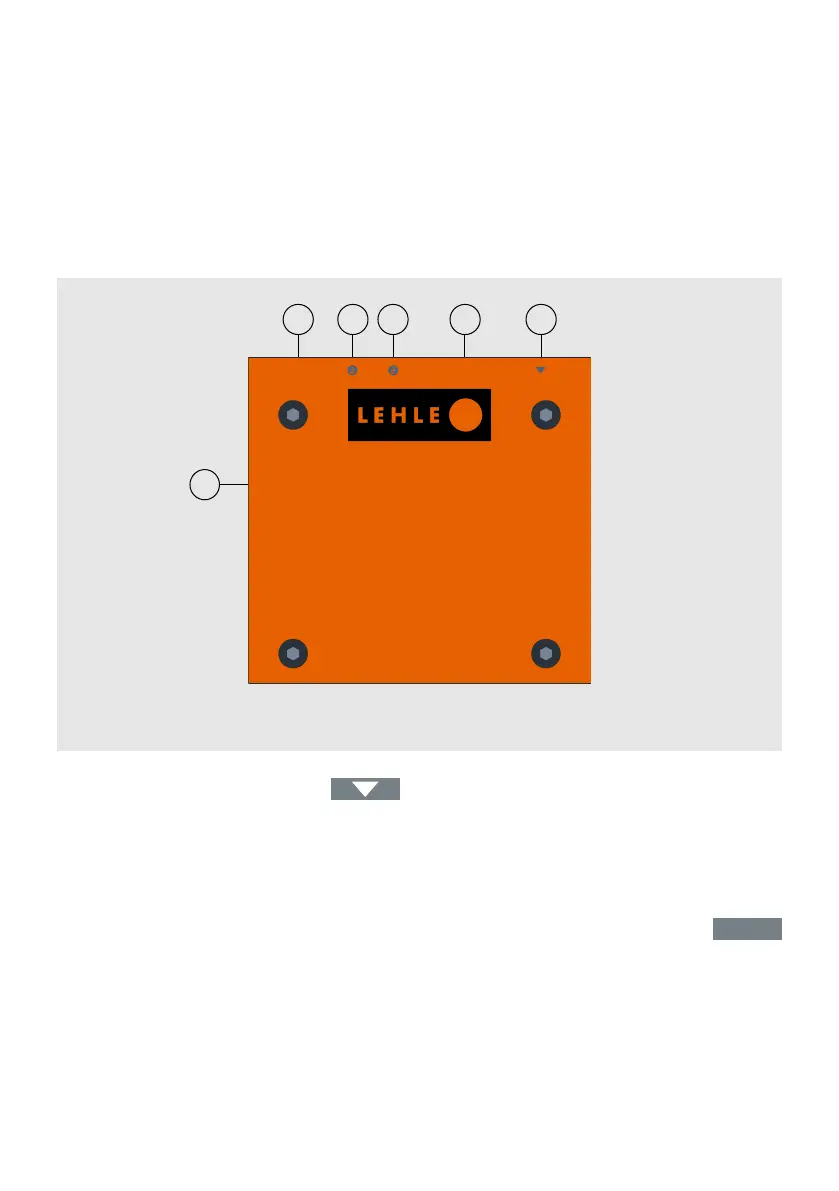

1. INPUT SOCKET
Connect your instrument or the output
from an eects unit or DAW here.
The input signal is fed into this socket.
The LEHLE P-SPLIT III operates entirely
passively.
The input signal remains connected to the
ISO and DIR outputs at all times, with no
semiconductors or any other active com-
ponents in the signal path.
Both balanced and unbalanced signals
can be split, since the LEHLE TRANS-
FORMER HZ is capable of handling both
types.
2. OUTPUT SOCKET
Connect the input of an amplifier or ef-
fects unit to be connected directly to the
LEHLE P-SPLIT III input here.
The input signal and its ground are pre-
sent directly on the DIR socket. The signal
1
2345
6
DIR
