LEHLE P-SPLIT STEREO AS THREE WAY AMP SPLIT
What‘s better than two amps?
Right: three amps.
If the left input socket is not used, the left
section will be fed by the right inputted
signal.
This way the LEHLE P-SPLIT STEREO can
be used as three way amp split; of course
with galvanically isolated outputs and
thus hum- and noise-free.
HOW TO DO THIS
1. Connect your instrument to the right in-
put socket of the LEHLE P-SPLIT STEREO.
2. Connect the first amplifier to the R DIR
socket.
3. Connect the second amp to the R ISO
socket.
4. Use the L ISO socket to feed your third
amp.
5. Use the phase inverter switch (3) to de-
termine which setting you prefer.
6. Use the ground lift switch (4) to find the
position at which noise is minimised.
7. There you go!

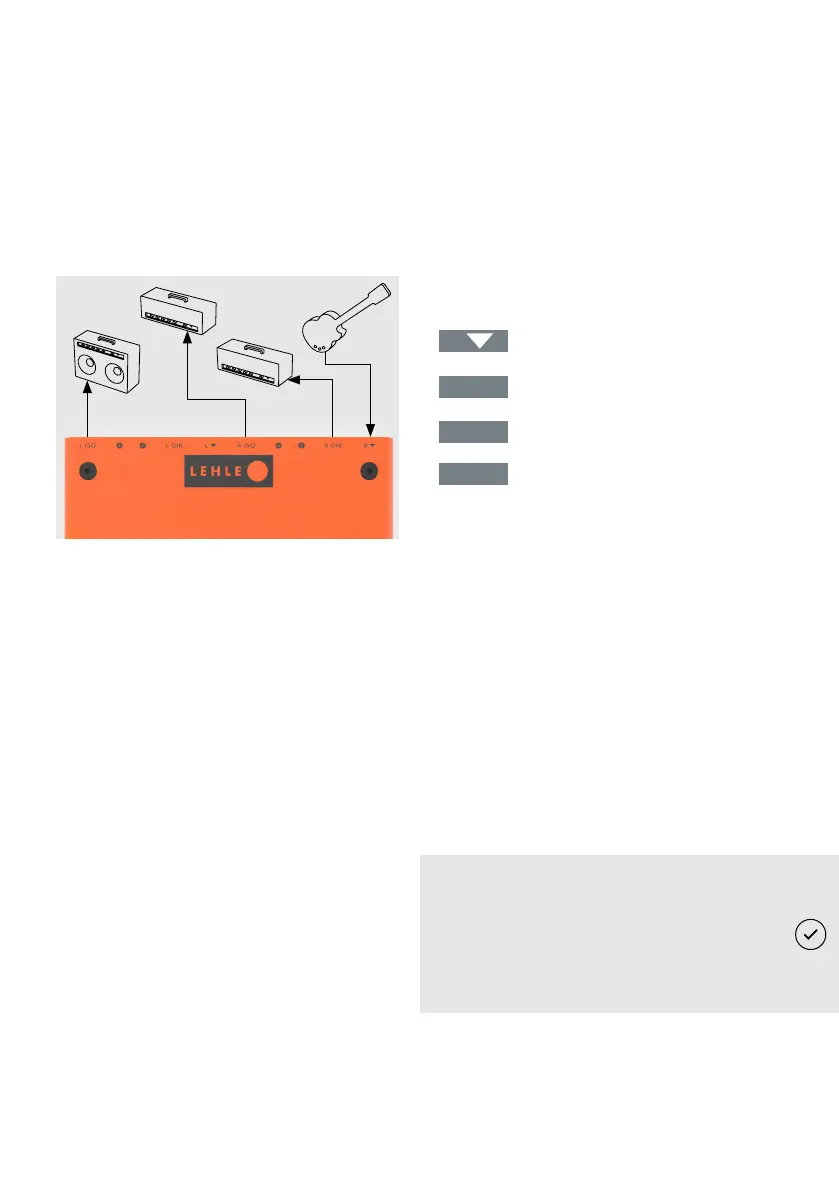

DEVICE CONNECTION
Instrument
Input amp 2
Input amp 1
Input amp 3
R
R ISO
R DIR
L ISO
Avoid long cable runs and thus loss in
signal and treble.
Elsewise we recommend to use a bu-
er before the split, such as the LEHLE
SUNDAY DRIVER II.
