LEHLE P-SPLIT STEREO AS SPLIT AND DI-BOX IN THE STUDIO
In studio situations it’s often useful to re-
cord not only the amplifiers, but at the
same time a dry, unprocessed signal, too.
This signal can then be routed in the mix
either to a real amplifier, or to a digital
simulation, for editing.
Even at the recording of electric bass sig-
nals it often makes sense to add the direct
signal to the record amp signal.
At the L ISO output the signal can be
tapped balanced via TRS already.
Keep in mind, if you want to use a low
impedance and balanced input at your
audio interface, the signal needs to be
buered, as shown on page 17.
Otherwise use the Hi-Z input of your in-
terface.
HOW TO DO THIS
1. Connect your instrument to the right in-
put socket of the LEHLE P-SPLIT STEREO.
2. Connect the first amplifier to the R DIR
socket.
3. Connect the second amp to the R ISO
socket.
4. Use the L ISO socket to feed your au-
dio interface.
5. Use the phase inverter switch (3) to de-
termine which setting you prefer.
6. Use the ground lift switch (4) to find the
position at which noise is minimised.
7. There you go!

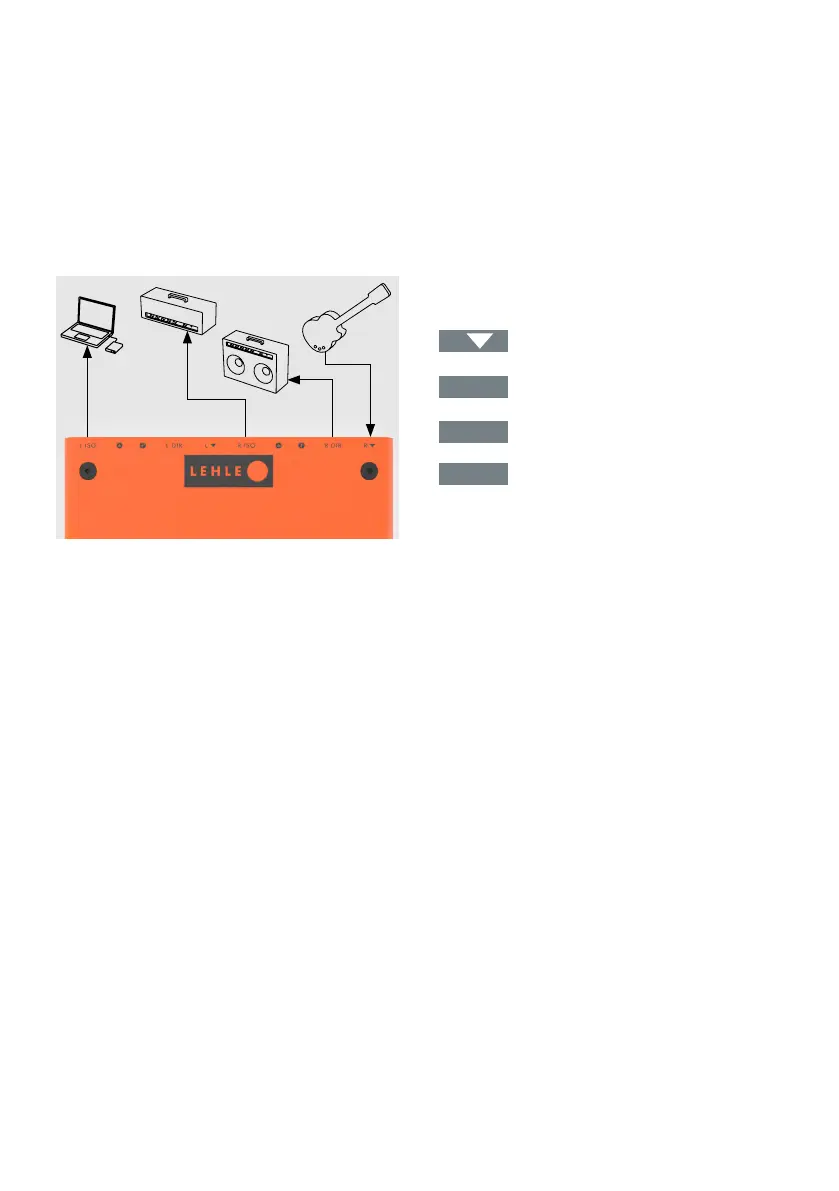

DEVICE CONNECTION
Instrument
Input amp 2
Input amp 1
Input audio interface
R
R ISO
R DIR
L ISO
