If your audio interface doesn’t have a
high impedance input (Hi-Z) or if you
want to send the signal through a long
distance loss-free and balanced at the
same time, we recommend to place a
buer in between your instrument and
the LEHLE P-SPLIT STEREO. This buer
changes your high impedance signal
to low impedance, such as the LEHLE
SUNDAY DRIVER II.

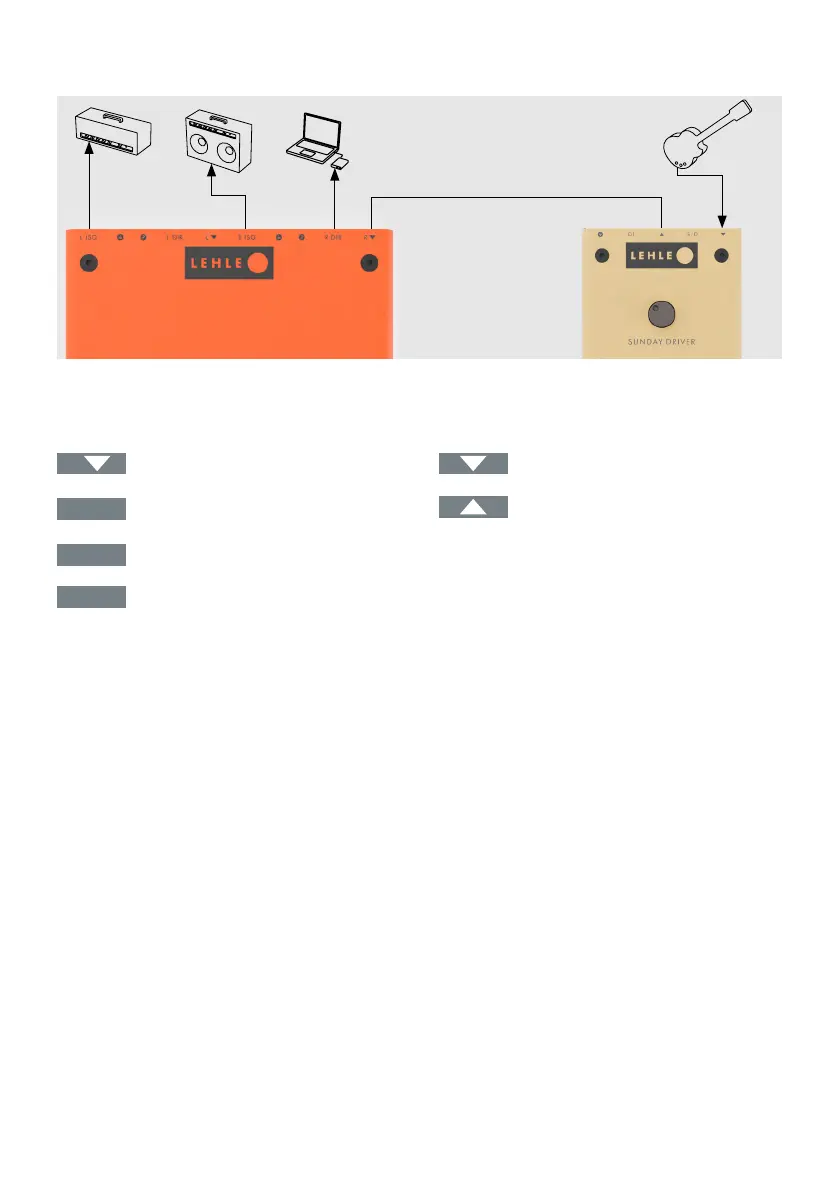

In the example above, the signal line type
is balanced (TRS), too.
HOW TO DO THIS
1. Connect your instrument to the input
socket of the LEHLE SUNDAY DRIVER II.
2. Use a TRS-TRS cable to connect the
output to the input socket of the LEHLE
P-SPLIT STEREO.
3. Connect R DIR to the balanced input
of your audio interface with a TRS-TRS or
TRS-XLR cable.
4. Connect the first amp to the R ISO
socket (unbalanced TS-TS).
5. Connect the second amp to the L ISO
socket (unbalanced TS-TS).
6. Use the phase inverter switch (3) to de-
termine which setting you prefer.
7. Use the ground lift switch (4) to find the
position at which noise is minimised.
8. There you go!
DEVICE CONNECTION
LEHLE P-SPLIT STEREO
DEVICE CONNECTION
LEHLE SUNDAY DRIVER II
SUNDAY DRIVER II TRS Instrument TS
Input amplifier 1 TS
Audio interface TRS P-SPLIT STEREO TRS
Input amplifier 2 TS
R
R ISO
R DIR
L ISO
