LEHLE P-SPLIT STEREO AS PASSIVE SUMMING BOX
If you are using a complex pedal board
with stereo eects, you sometimes could
have the problem that unfortunately
there‘s only one amplifier available and
the outputted signal should be therefore
mono.
The LEHLE P-SPLIT STEREO can sum in-
putted stereo signals to mono, once only
one amplifier is being connected.
This way your pedal board stays wired but
still ready for the „small gig“.
HOW TO DO THIS
1. Connect the outputs of your last stereo
eect to the input sockets L and R (1).
2. Connect the output socket R ISO to the
amplifier.
3. Use the phase switch (3) to find out
which setting sounds better to you.
4. Use the ground lift switch (4) to deter-
mine which position eliminates the most
background noise.
5. There you go!

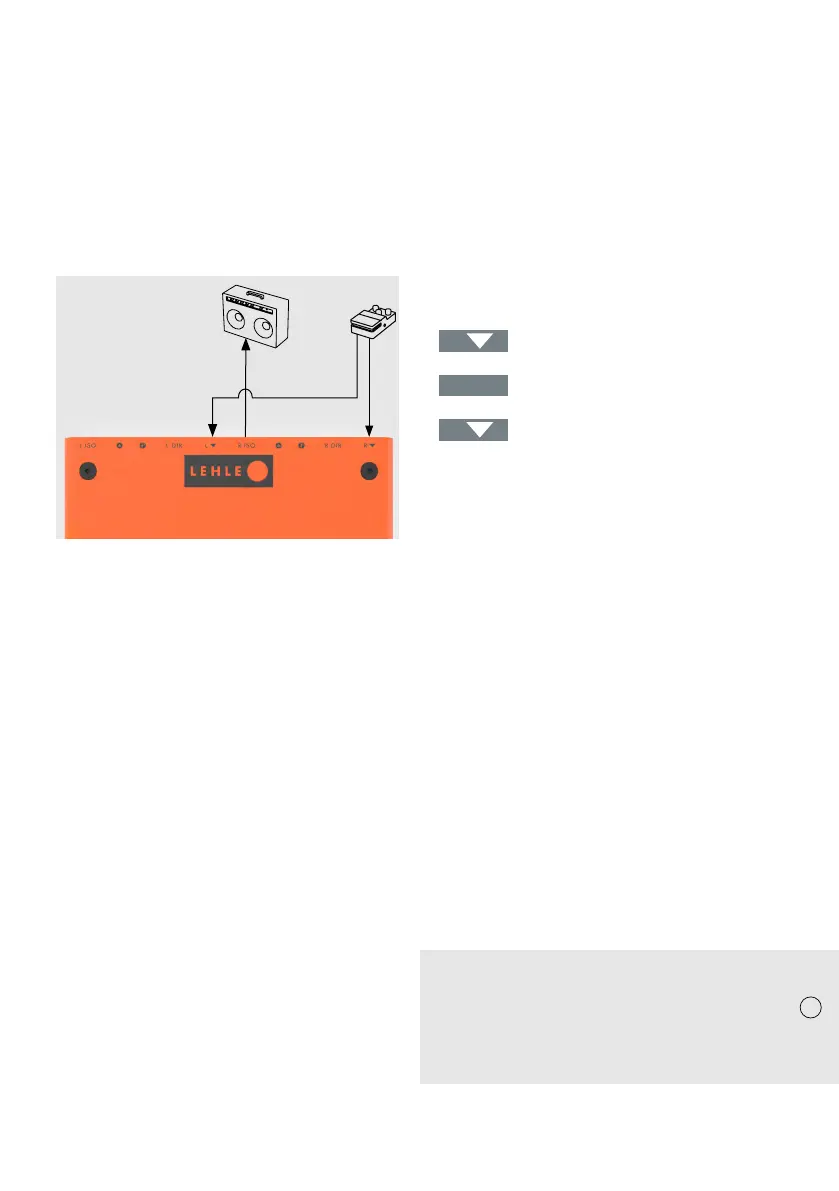

DEVICE CONNECTION
Eects output right
Eects output left
Input amplifier
If you are using kind of a patchbay on
your pedalboard, keep in mind that the
L ISO socket needs to be unplugged or
elsewise the passive summing won’t work.
!
R
R ISO
L
