- Apply some grease (Molykote P74) to the ring (8) as well
as to the threaded part of the connecting rod (3) and nut (7).
Fit the nut on the rod.
- Tighten the nut (7).
Torque: 950 Nm (95 kgm).
This torque is realised by extending your wrench with a
150 cm long pipe (fig. A-4) and by then applying a force of
635 N (63,5 kg).
When fitting the securing plate the nut should be tightened
and is not allowed to be unscrewed.
43

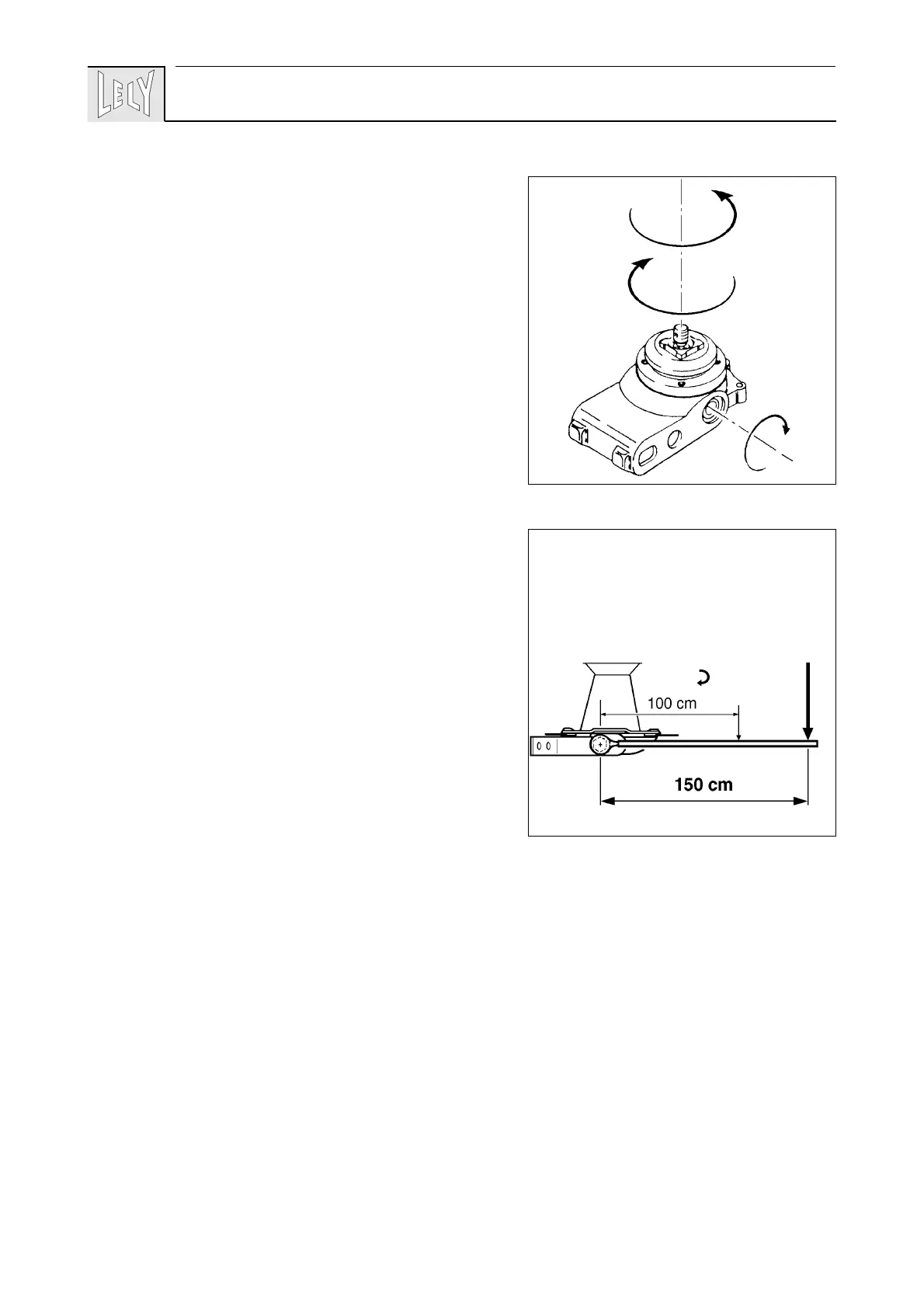

A-4
950 Nm
(95 kgm)
635 N
63.5 kg
A-3
R
L
Supplement A
