LELY SPLENDIMO T User Manual

- Check the gearboxes for oil leakage (for oil change - see §
7.5).
- Check all bolts and nuts for tightness. Pay particular
attention to the bolts which secure the skids and wear
plates (fig. 17).
When tightening loose bolts/nuts the torques listed below
should be applied.
- Convince yourself of the presence and undamaged

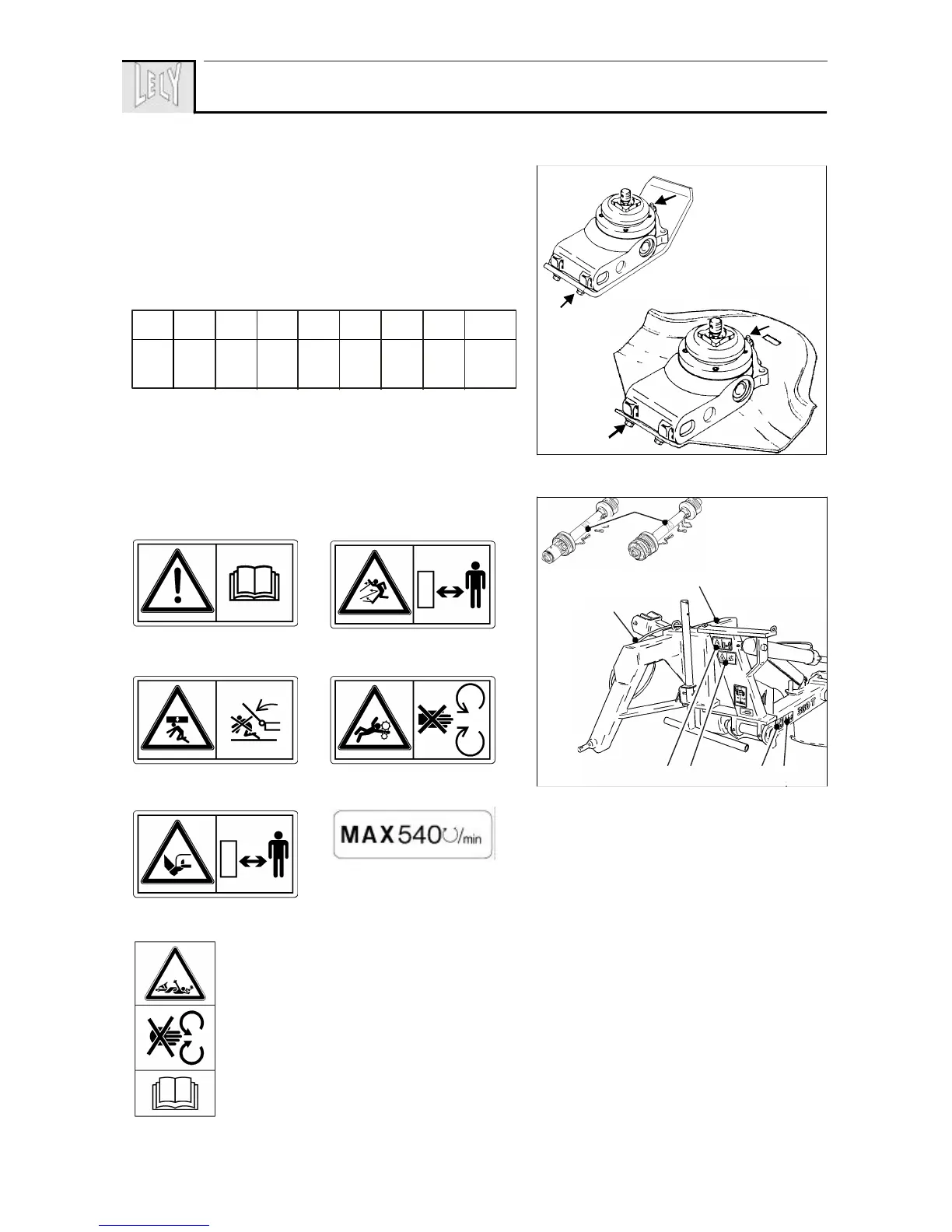

condition of all safety decals on the machine (fig. 18).
A (P/N 9.1170.0408.0)
B (P/N 9.1170.0410.2)
C (P/N 9.1170.0420.5)
D (P/N 9.1170.0407.6)
E (P/N 9.1170.0419.4)
F (P/N 9.1170.0125.4)
G (P/N 16.61.175) -2x-
37
17
M6 M8 M10 M12 M14 M16 M20 M24
Nm 10 25 50 85 135 215 410 710
kgm 1,0 2,5 5,0 8,5 13,5 21,5 41,0 71,0
A
G
F
C D
B
E
18
F
B C D E
A
G
