Connections
Connections
The LEM L3000-SD system’s receiver is fitted with two different format outputs: the first has a balanced
XLR connector, the second a normal unbalanced Jack socket.
The receiver has line-level outputs. The receiver’s output must therefore be connected to one of the
mixer’s line inputs.
When a bodypack transmitter is used with a guitar or bass, the receiver’s output can be connected to
the line input of a guitar or bass processor. To connect directly to the instrument’s amplifier, use the line
input (if there is one) or the input with the lowest possible gain, normally indicated as “Low Input” or
something similar.

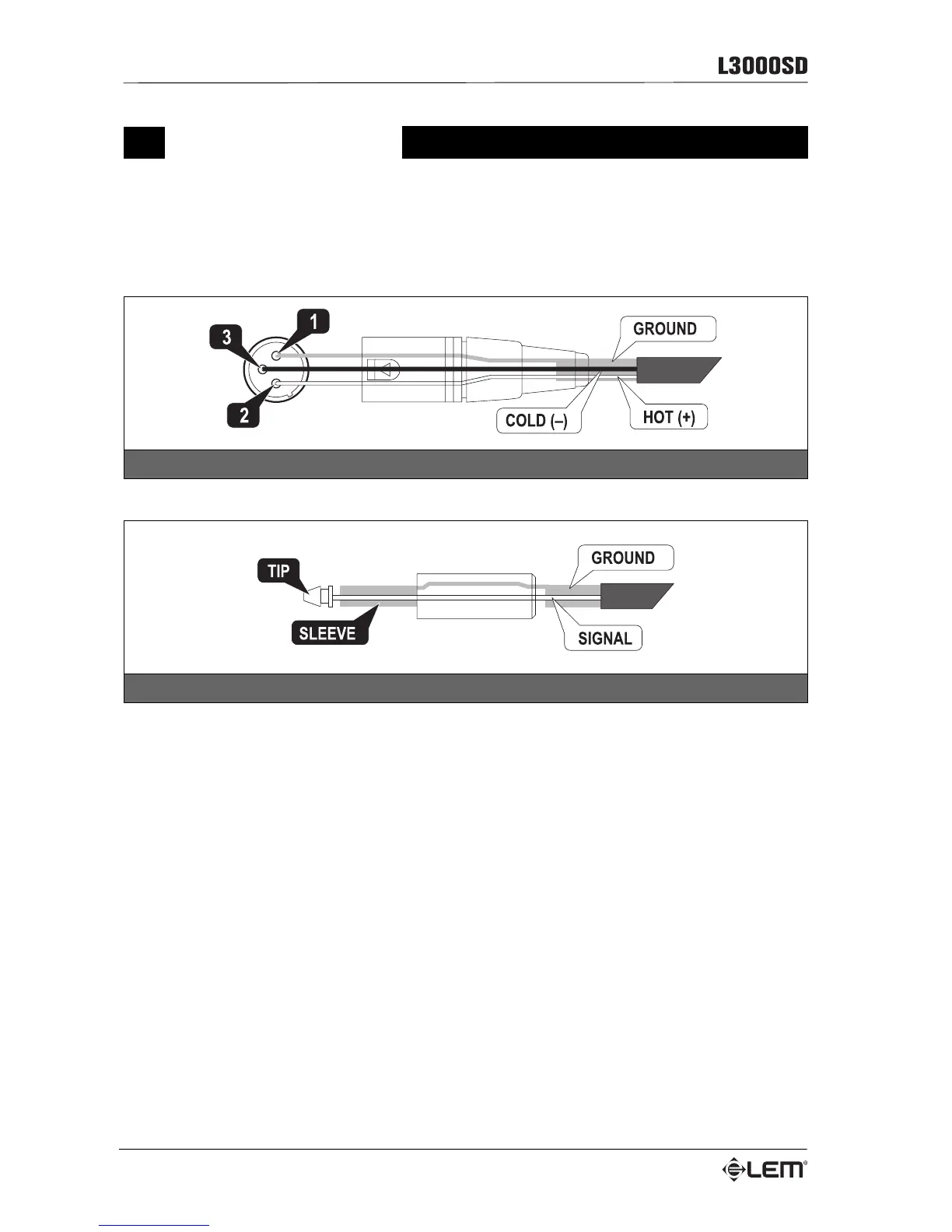

UNBALANCED JACK connector
BALANCED XLR-M connector
