The Receiver
The Receiver

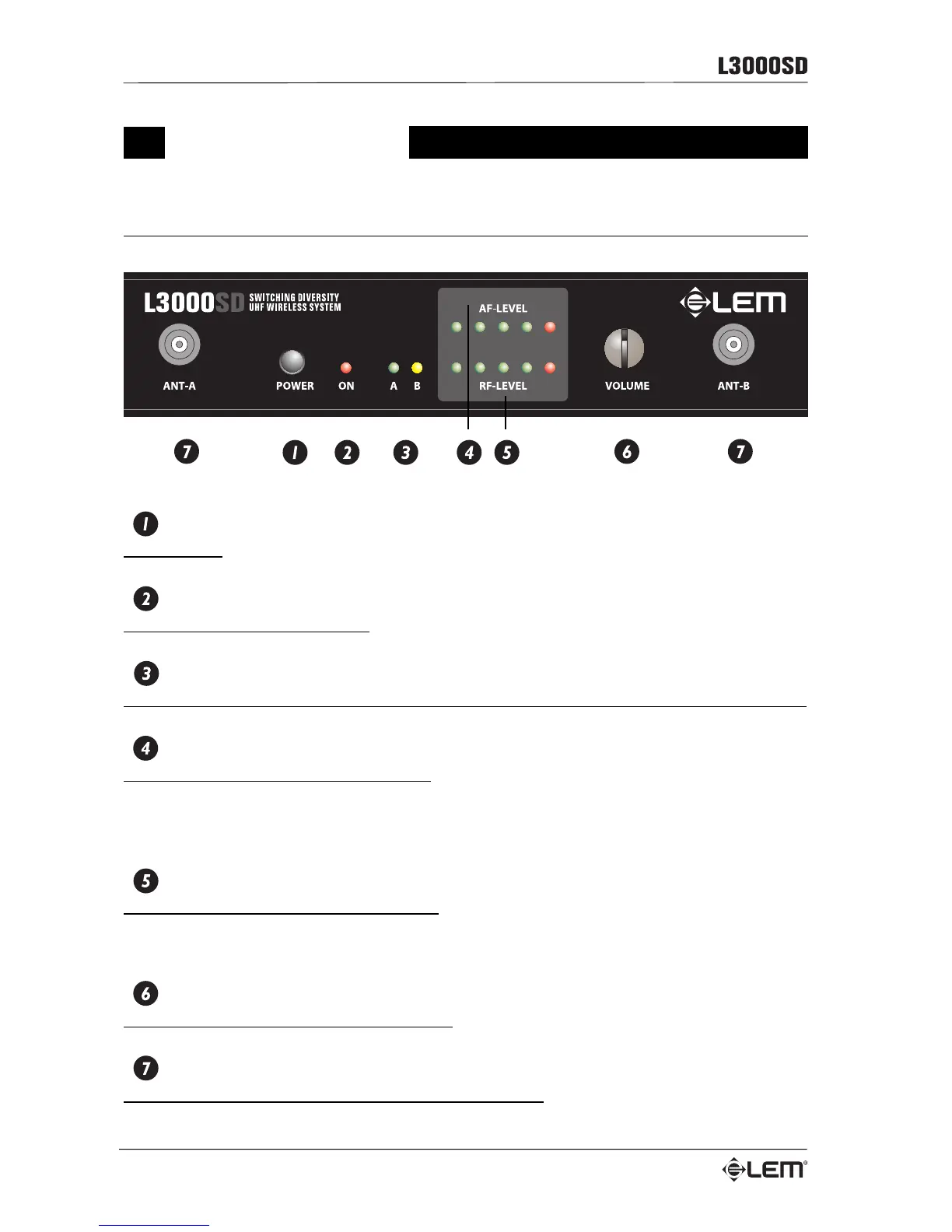

Front Panel
POWER
Power switch.
ON
LED indicating when the unit is on.
A & B
These two LEDs indicate which antenna the receiver’s Switching Diversity circuitry has selected.
AF-LEVEL
LED bargraph indicating audio output level.
When the red LED illuminates, this means the level is too high and will consequently distort. Adjust the
receiver’s volume control (and the bodypack transmitter’s, if used) in order to obtain the highest possible
distortion-free level.
RF-LEVEL
LED bargraph indicating receiver input level.
If the red LED illuminates, the signal being received is at maximum. If a bodypack transmitter is being
used, transmitter volume can be adjusted to obtain the highest possible distortion-free level.
VOLUME
Receiver output volume control potentiometer.
ANT-A & ANT-B
Connectors for connecting antenna A and B of the receiver.
