10

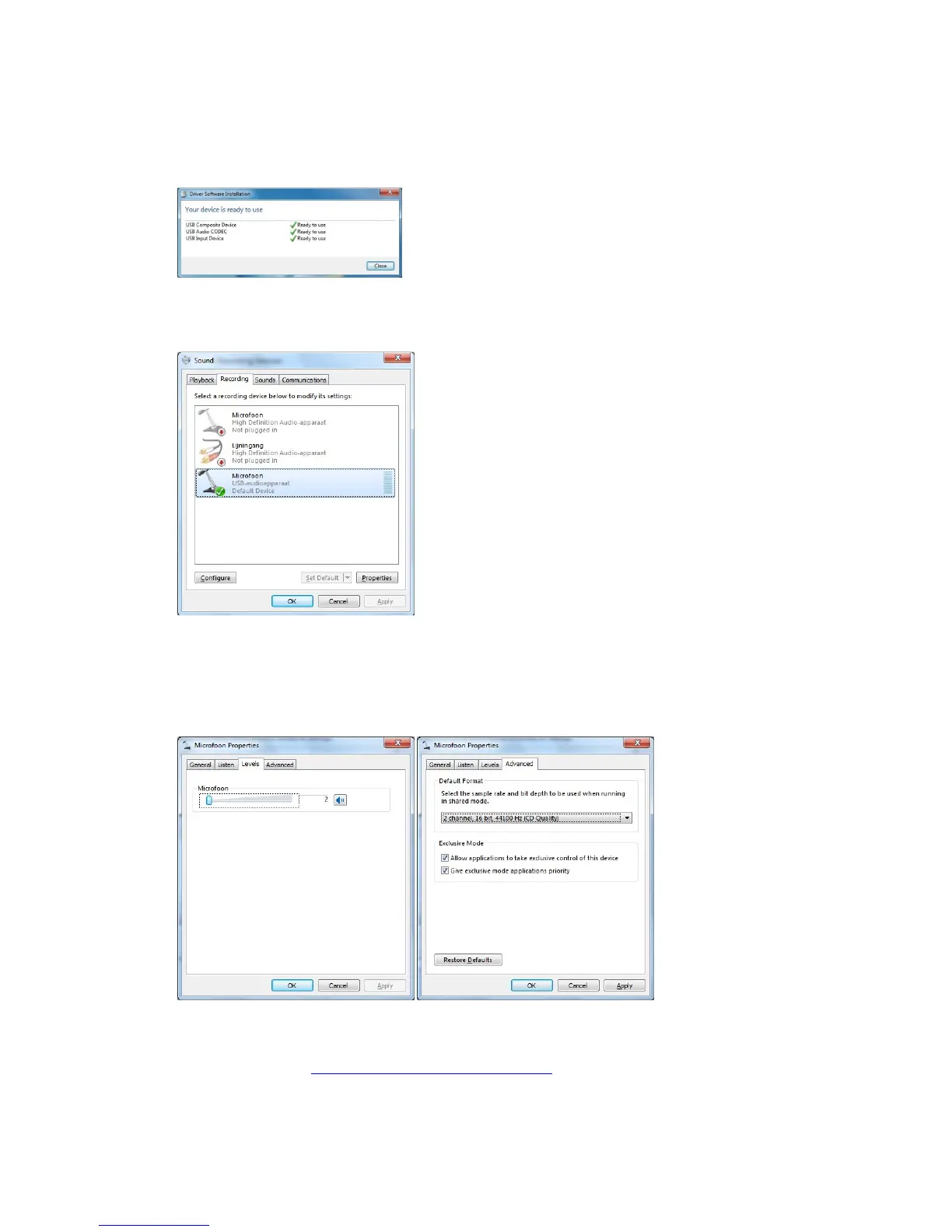

Software Installation & Configuration (Windows 7)
1. Connect the turntable with the AC power outlet.
2. Connect the turntable with a USB socket on your computer and wait for several
seconds until below pop-up screen appears.
3. Click on Close.
4. Click with the right mouse-button on the speaker icon (taskbar) and select
Recording, below screen appears:
5. Click on Microphone USB audio device.
6. Click on Properties.
7. Go to the Tab "Levels" and slide the volume slider down to level 2 as shown in
below example.
8. Go to Tab Advanced and select in the pull-down menu: 2 Channel, 16 bit, 44100
Hz (Cd-Quality).
9. Click on Apply, OK and OK again (now all programs are closed).
10. Insert the Audacity software CD into your disk drive or download free of charge
new software via http://audacity.sourceforge.net/ .
11. Run the installation as described instruction manual.
12. Run the Audacity software.
