13
TV Back
Audio and video cable (RCA)
Mini audio and video
transfer cable
DVD or VCR back

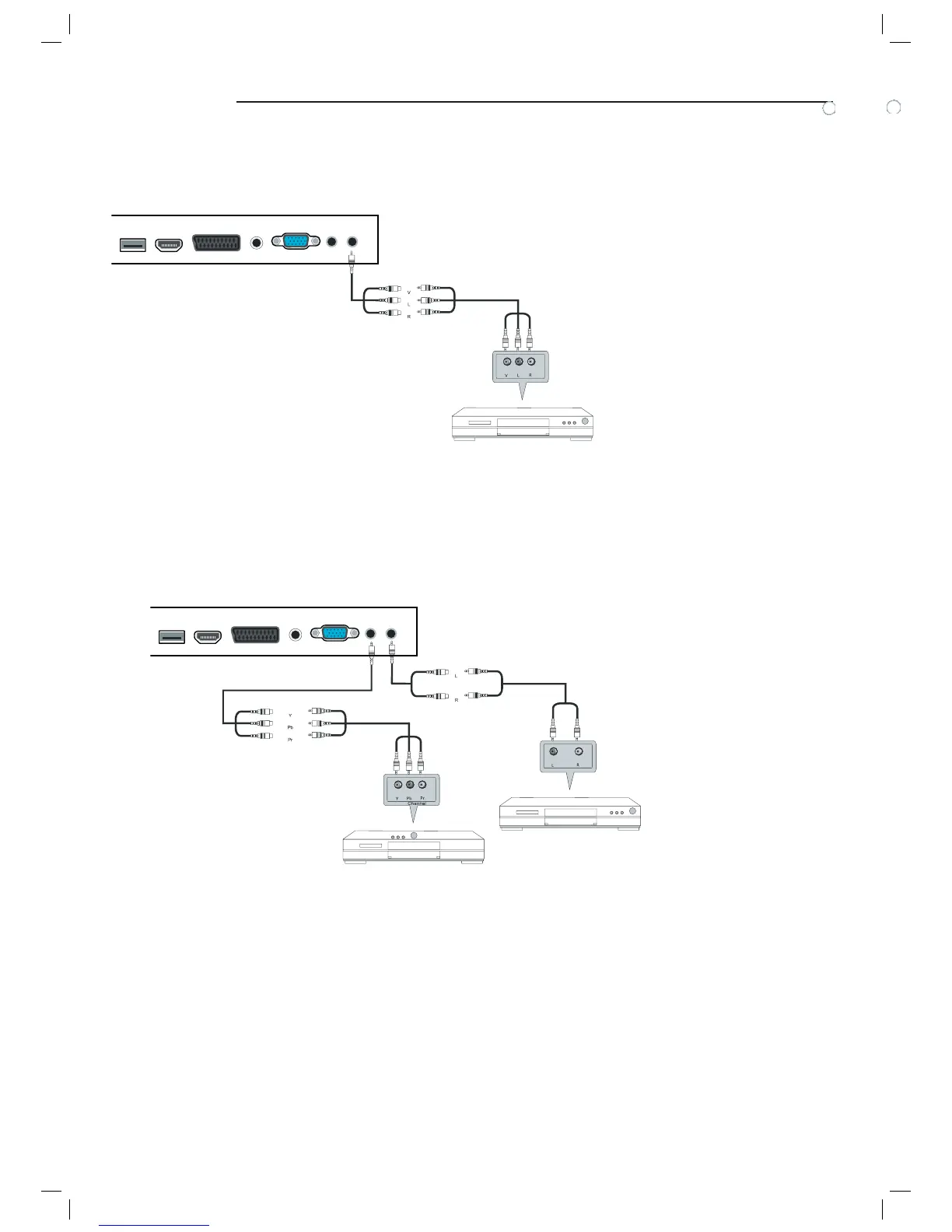

Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the TV set using the RCA cable.
Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source via the
SOURCE button on the remote control.
YPbPr Connection
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the TV set. Connect the Audio output of the DVD or
VCR to the Audio input jacks on the TV set using the RCA cable.
Match the jacks colors : Y is green, Pb is blue, Pr is red, Audio left is white, and Audio right is red. Select YPbPr input
source via the SOURCE button on the remote control.
TV Back
Audio video cable (RCA)
Audio cable
Mini video transfer cable
DVD or VCR back
DVD or VCR
DVD or VCR back
DVD or VCR
DVD or VCR
USB HDMI SCART PC-IN VGA YPbPr AV
MINI MINI
USB HDMI SCART PC-IN VGA YPbPr AV
MINI MINI
AV Connection
